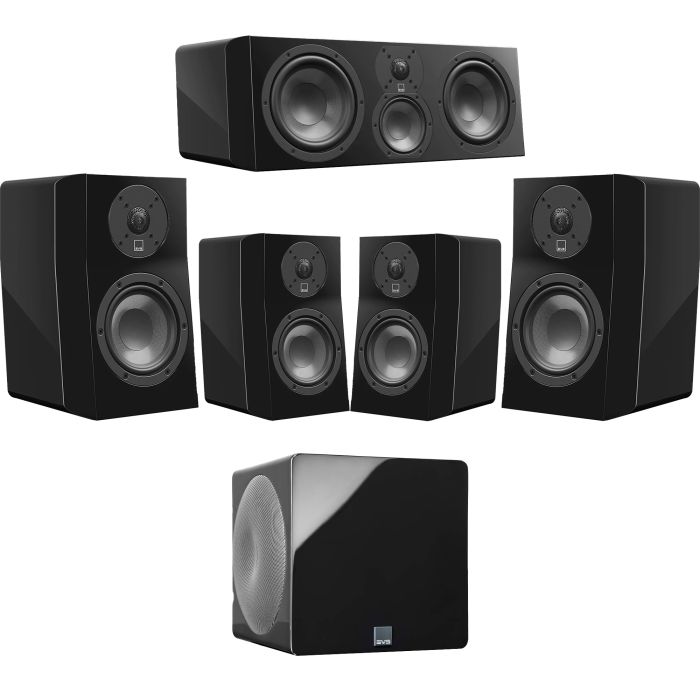

SVS Ultra Evolution 5.1 Speaker Package

SVS Ultra Evolution Bookshelf Speakers
- Frequency Response / Acoustic Data:
- Frequency Response: 40 Hz-40 kHz (+/-3 dB).
- Nominal impedance: 6 ohms.
- Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 150 watts
- Speaker Specs:
- Bookshelf Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Dual gold-plated 5-way binding posts
- 2” wide-flared rear-firing port 
- Cloth grille with magnetic retention system
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 14.88” (H) x 8.66” (W) x 11.25” (D) / 378mm (H) x 220mm (W) x 285.7mm (D)
- Overall Dimensions: 11.14” (H) x 8.66” (W) x 11.64” (D) / 382mm (H) x 220mm (W) x 295.6mm (D) (includes grille and SVS Multi-Angle Wall Bracket)
- Shipped Dimensions (Pair): 23.9” (H) x 19.1” (W) x 16.4” (D) / 607mm (H) x 485mm (W) x 417mm (D)
- Weight Unboxed: 18.8 pounds / 8.6 kgs
- Shipped Weight: 40.7 pounds / 18.9 kgs
- Driver Specs:
- 1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
- 6.5” Woofer:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
- Crossover & Cabinet Specs:
- Crossover:
- 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Woofer crossover: 1.8 kHz
- Cabinet:
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
- Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

SVS Ultra Evolution Nano Speakers
- Frequency Response / Acoustic Data:
- Frequency Response: 44Hz to 40kHz (+/-3 dB)
- Nominal impedance: 6 ohms.
- Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 150 watts
- Speaker Specs:
- Bookshelf Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Gold-plated 5-way binding posts
- 1.6” wide-flared rear-firing port
- Cloth grille with magnetic retention system
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 223.9mm (D)
- Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D) (includes grille and SVS Multi-Angle Wall Bracket)
- Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
- Weight Unboxed: 13.5 pounds / 6.1 kgs
- Shipped Weight: 31.0 pounds / 14.1 kgs
- Driver Specs:
- 1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
- 5.25” Woofer:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
- Crossover & Cabinet Specs:
- Crossover:
- 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Woofer crossover: 1.9 kHz
- Cabinet:
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage..
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
- Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

SVS Ultra Evolution Centre Speaker
- Frequency Response / Acoustic Data:
- Frequency Response: 40 Hz-40 kHz (+/-3 dB).
- Nominal impedance: 6 ohms.
- Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 225 watts
- Speaker Specs:
- Center Channel Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Dual gold-plated 5-way binding posts
- Dual 1.6” wide-flared rear-firing ports 
- Cloth grille with magnetic retention system
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 7.68” (H) x 22.05” (W) x 11.39” (D) / 195mm (H) x 560mm (W) x 289.4mm (D)
- Overall Dimensions: 7.83” (H) x 22.05” (W) x 11.78” (D) / 199mm (H) x 560mm (W) x 299.2mm (D) (includes grille, feet, and binding posts)
- Shipped Dimensions: 12.0” (H) x 25.8” (W) x 16.3” (D) / 306mm (H) x 655mm (W) x 414mm (D)
- Weight Unboxed: 26.8 pounds / 12.2 kgs
- Shipped Weight: 30.9 pounds / 13.6 kgs
- Driver Specs:
- 1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
- 4.5” Midrange Driver
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.
- 6.5” Woofers:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
- Crossover & Cabinet Specs:
- Crossover:
- 3-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Midrange crossover: 2.2 kHz
- Midrange-to-woofer crossover: 450 Hz
- Cabinet:
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the - listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
- Vertically Aligned Tweeter-Midrange array creates perfect on and off-axis frequency response and blending for clear vocals and the largest possible “Sweet Spot” ensuring transparency and clear vocals at every listening position.
- Dual 6.5” woofers drive deep, accurate bass for the most demanding center-channel content.
- 4.5” midrange driver in a dedicated acoustic-suspension sub-enclosure ensures pristine midrange output and blending with woofers and tweeter.
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
- Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

SVS 3000 Micro Subwoofer
- Dual opposing 8-inch active drivers
- 800W RMS, 2500W peak Sledge STA-800D amp
- Rear-mounted internal amplifier with ICI
- Screw-in rubber feet
- Structurally reinforced MDF cabinet construction
- Dimensions (incl grilles): 10.9” X 11.7” X 10.7”
- Weight: 10.2kg
