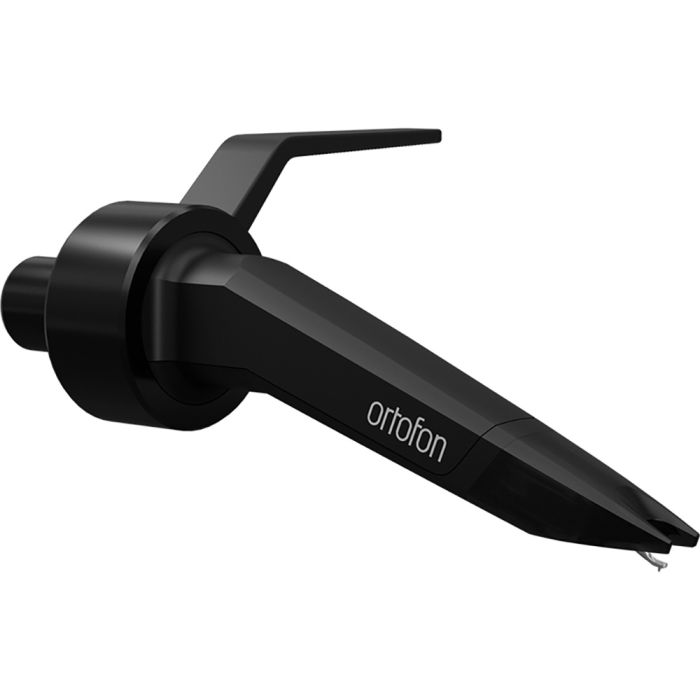

Ortofon Concorde Music Black Replacement Stylus
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- OUTPUT VOLTAGE - 6 mV
- CHANNEL BALANCE (@ 1000HZ) - 1 dB
- CHANNEL SEPARATION (@ 1000HZ) - 26 dB
- FREQUENCY RESPONSE +3 / -1DB - 20-20k Hz
- TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) - 80 μm
- COMPLIANCE, DYNAMIC, LATERAL - 15 μm
- STYLUS TYPE - Nude Shibata
- STYLUS TIP RADIUS (R/R) - 6/50 μm
- RECOMMENDED TRACKING FORCE - 1.8 g
- INTERNAL IMPEDANCE - 1.27 Ω
- INTERNAL INDUCTANCE - 815 mH
- CANTILEVER MATERIAL - Aluminium Tube
- COIL WIRE MATERIAL - Silver Plater OFC Copper
- RECOMMENDED LOAD IMPEDANCE - 47 Ω
- RECOMMENDED LOAD CAPACITANCE - 150-300 pF
- CARTRIDGE WEIGHT - 18 g
Description
The Ortofon Concorde Music Black Replacement Stylus is the replacement stylus for the Red Phono Cartridge which can be found here.
