Hi-Fi System 15 – Audiolab 9000A + KEF R3 Meta + Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - KEF R3 Meta Speakers (Pair)
- Design: Three Way bass reflex
- Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT
- MF: 125 mm (5 in.) aluminium cone
- Bass Unit: LF: 165 mm (6.5 in.) hybrid aluminium cone
- Crossover frequency: 420 Hz, 2.3 kHz
- Frequency range (-6dB): 38 Hz - 50 kHz
- Typical in-room bass response (-6dB): 30Hz
- Frequency response (±3dB): 58 Hz - 28kHz
- Harmonic distorition (90dB, 1m): <1% 73 Hz and above<0.5% 90 Hz - 20 kHz
- Maximum output: 110dB
- Amplifier requirements: 15-180W
- Nominal Impedance: 4 Ω (min. 3.2 Ω)
- Sensitivity (2.83V/1m): 87dB
- Weight: 24.8kg (as a pair)
- Dimension (H x W x D) with terminal: 422 x 200 x 336 mm (per unit)
The amplifier - Audiolab 9000A Integrated Amplifier
Design Philosophy and Core Technology
- 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC
- 4.3" (800 x 480mm) Large Size Full View IPS LCD
- Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
- Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Dedicated Current-Feedback Headphone AMP
- Integrated / PRE-POWER / PRE Only Modes
- USB Upgrade Support
- Inputs: 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
- Outputs: 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency
- Optical / Coaxial: 44.1kHz-192kHz;
- PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
- Gain (max.): +6dB (Line), +53dB (Phono MM)
- Input Sensitivity: 1Vrms (Line, Volume = 0dB), 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
- Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
- Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
- Frequency Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max. (Volume = 0dB)
- Output Impedance: 120 ohms
- Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
DAC
- D to A Converter: ES9038Pro
- Total Harmonic Distortion (THD): 2.1Vrms
- Max. Sampling Frequency: Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
- Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)
Power Amplifier Section
- Gain: +29dB
- Rated Power Output: 2 x 100W (8 ohms, THD<1%), 2 x 160W (4 ohms, THD<1%)
- Frequency Response: 20Hz-20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
- Input Sensitivity: 1Vrms
- Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
- Max. Output Current: 15A
Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
- Output Impedance: 2.35 ohm
- Load Impedance: 20-600 ohms
General
- Standby Power Consumption: <0.5W
- Net Weight: 9.4kg
- Gross Weight: 11.2kg
- Dimensions (mm) (W x H x D): 444 x 342 x 89
- Carton Size (mm) (W x H x D): 514 x 470 x 161
- Finish: Black / Silver
The cable - Chord Shawline X Speaker Cable - 3m Pair
- Conductor: Silver-plated
- High purity OFC Cable
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: High density foil
- Braid: 93% coverage metal
- Outer jacket: Translucent PVC
- AWG: 16 (1.31mm2)
- Diameter: 9.1mm
Description

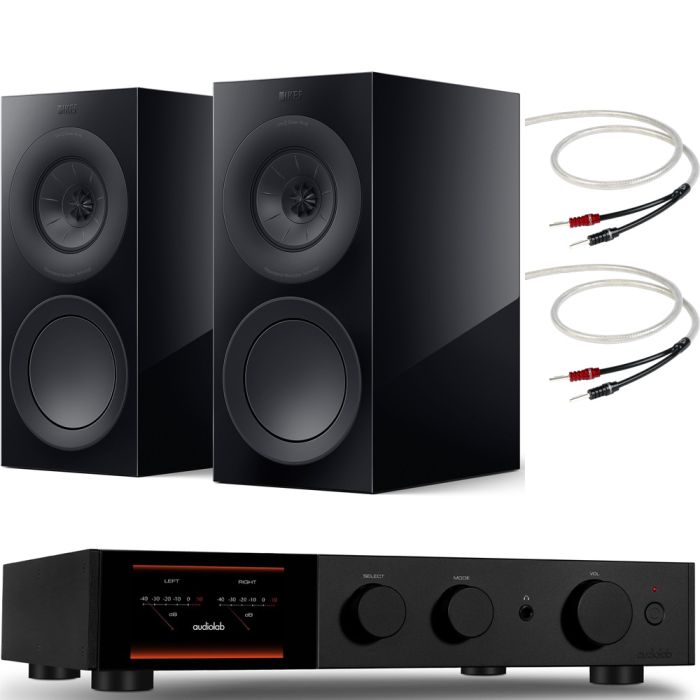

A selected HiFi system put together by our experts here at Audio Affair that consists of the Audiolab 9000A Integrated Amplifier + KEF R3 Meta Speakers (Pair) with recommended cables
The speakers - KEF R3 Meta Speakers (Pair)
KEF R3 Meta speakers are the latest version of this excellent stand mount loudspeaker in the R series range. These three way bookshelf speakers have received a Meta Upgrade, with KEF’s Metamaterial behind the tweeter which is designed to reduce distortion. The closest thing to KEF Reference 1 at a much lower price View Full Product Details Here
The amplifier - Audiolab 9000A Integrated Amplifier
The 9000A Integrated Amplifier from Audiolab is the latest evolution of a now mythical series of amplifiers – the 8000 series. It represents the best of what the team at Audiolab have to offer in terms of technology and performance with a classy new look. View Full Product Details Here
Optional Cables - Chord Shawline X Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
