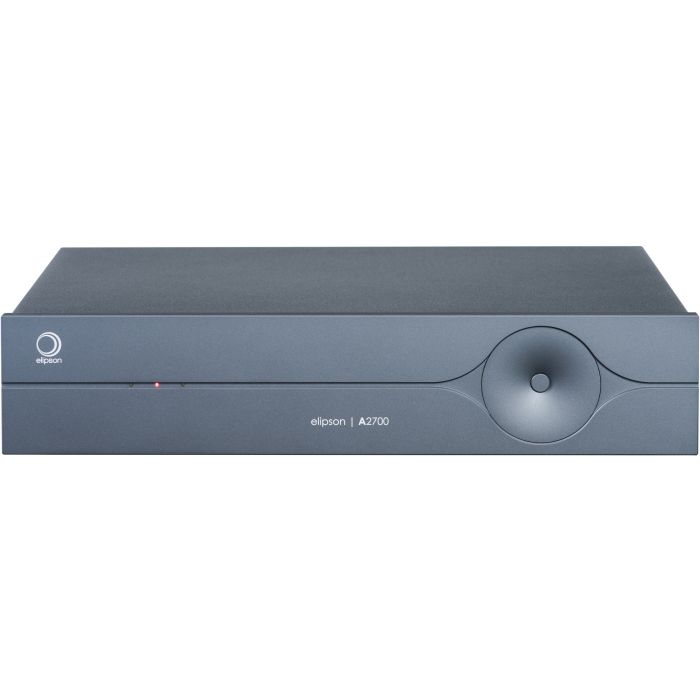

Elipson A2700 Power Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| XLR Inputs | No |
|---|---|
| Remote Control | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
TECHNICAL DATA
- RMS power Wrms / channel / 8 Ω Class D : 400 W @ THD=1 % (clipping) 2 channels on
- Harmonic Distortion (THD) at 100 W @ 8 Ω : < 0,005 % @ 1kHz
- Harmonic Distortion (THD) at 1 W @ 8 Ω : < 0.003 % @ 1kHz
- Intermodulation Distortion (IMD SMPTE) at 100 W : < 0.01%.
- RMS power Wrms / channel / 4 Ω : 710 W @ THD=1 % (2 x 750 W peak with CF*=12 dB)
- RMS power Wrms clamped mode 8Ω : 1400 W / 2500 W peak with CF=12 dB
- Impulse power : 2 x 900 W under 2 Ohms with CF=12 dB
- Power consumption (230 Vac / 120 Vac) : 250 W with PF* = 0,96 at Pmax/8 at 4 Ω 2 channels
- Number of inputs : 1 x RCA Stereo + 1 x XLR Stereo + trigger In and Out
- Input impedance : 1 MΩ
- Sensitivity (V) : 9,5 dBu (sym), 3,5 dBu (asym) (2,3 V /1,15 V)
- Rise time (μs) : 5ms at Pmax 8 Ω
- Bandwidth : 2 Hz - 60 kHz @ -3 dB at 4 Ω
- Damping Factor : 1000 at 8 Ohms between 20 Hz and 2 kHz
- Signal to Noise Ratio (Dynamic) : 119 dB (balanced input) at Pmax in stereo
- Max Operating Temperature : 40° C
- Output configurations : Stereo / Mono bridge
Clipping LED and protection LED (current, power, temperature) per channel. Trigger input and output for stand-by and operation by isolated voltage (5 to 12 V). * CF = peak factor (10 log (P peak/P average)) ** PF = power factor (cos phi)
GENERAL
- Stand-by power consumption : < 0,5 W
DIMENSIONS / WEIGHT
- Dimensions : W x H x D: 95 x 430 x 302/333* mm *with connectors
- Weight : 6,5 kg
Description
Elipson A2700 power amplifier was released at the same time as the P1 pre amplifier and packs a serious punch that will bring any setup to life and then some.
High Capacity
A2700 features a impressive capacity of 400 W RMS under 8 Ohms, 700 W under 4 Ohms and 900 W under 2 Ohms when in impulse mode. This unit can also be bridged too to deliver up to 1400 W RMS (2500 W Peak) under 8 Ohms without any difficulty or thermal wastage, meaning this amplifier can push your sound without compromise.
Getting Connected
Connectivity on the A2700 is simple and intuitive with 1 RCA stereo & 1 XLR stereo inputs (with trigger in & out) that allow for a easy setup to get your system sounding great without any hassle, which when combined with the P1 Pre-amplifier creates a perfect harmony for all your sound.
Power Hungry?
You could think that with such firepower, the A2700 is power thirsty and that couldn’t be further from the truth with the unit only needing 250 W making this amplifier incredibly power efficient, no matter what you throw at it.
