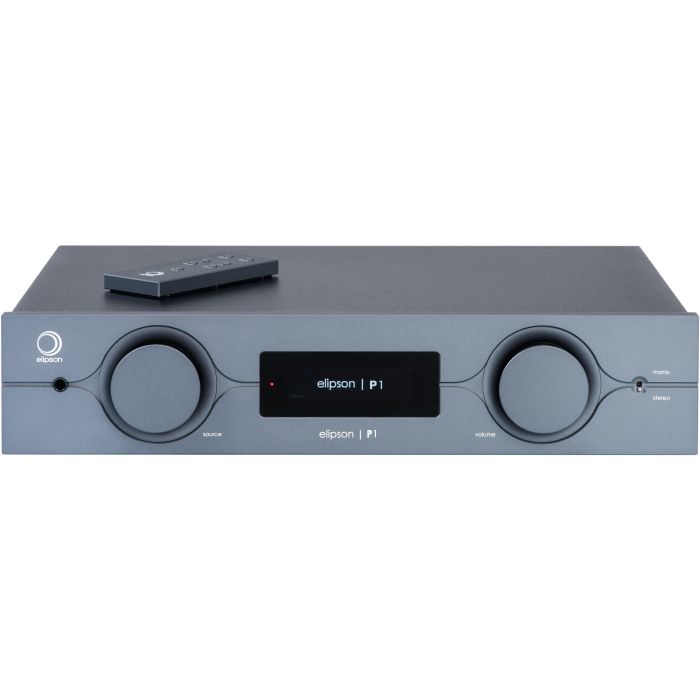

Elipson P1 Pre Amplifier
In stock
Features
| Remote Control | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
LINE INPUT
- Maximum output voltage : 21 dBu (18.8 dBV) @ THD=1%.
- Crosstalk : < -100 dB up to 10 kHz
- Input impedance (balanced/unbalanced) : 500 kΩ / 1 MΩ
- Signal to noise ratio : 102 dB (A) @ 1 V; Dynamic 120 dB
- Total harmonic distortion : < 0.001% over the entire audio band between -16 and +16 dBu
- Bandwidth (Line) : 2 Hz - 120 kHz @ - 3 dB
- Output gain (balanced/unbalanced) : 18 dB / 12 dB
- Total number of inputs : 3
- Line inputs : 2 x Line RCA + 1 x Sym XLR
- Outputs : 1 x RCA stereo (Asym) + 1 x XLR stereo (Sym) + sub + trigger out
- Stereo/Mono mode : Yes on front panel
- Balance : Yes ± 6 dB
HEADPHONE OUTPUT
- Output power : 150 mW / 32 W
- Harmonic Distortion : < 0,001 %
- Signal to Noise Ratio : > 100 dB @ 10 mW / 32 Ω
- Bandwidth : 2 Hz - 120 kHz
- Compatible impedances : 16 to 600 Ω
Description
Elipson P1 pre amplifier represents the next generation of amplification units from Elipson that take where Elipson have been before and improves to create a symphony of sound in your setup.
Released at the same time as the A2700 power amplifier, which is an excellent match – although of course the P1 can be used with any other good power amplification.
Optional DAC and Phono Stage
The A2700 is available with optional DAC and phono stage, giving you the option of using it with both analog and digital inputs, as well as the option to use with or without a turntable.
No Noise Here
A key part of any pre-amplifier is the dissemination of noise and interference on the signal that is being amplified and thanks to low noise regulators and a power supply that is outside of the audio range of the P1, it can truly deliver a soundstage that is true to the audio itself.
Plug Ins
Elipson have ensured that every option is covered on the P1 for input with the inclusion of 2 line RCA inputs & 1 XLR input (balanced) that ensures no matter the equipment you are running it will happily sit as the centrepiece of your setup for years to come.
