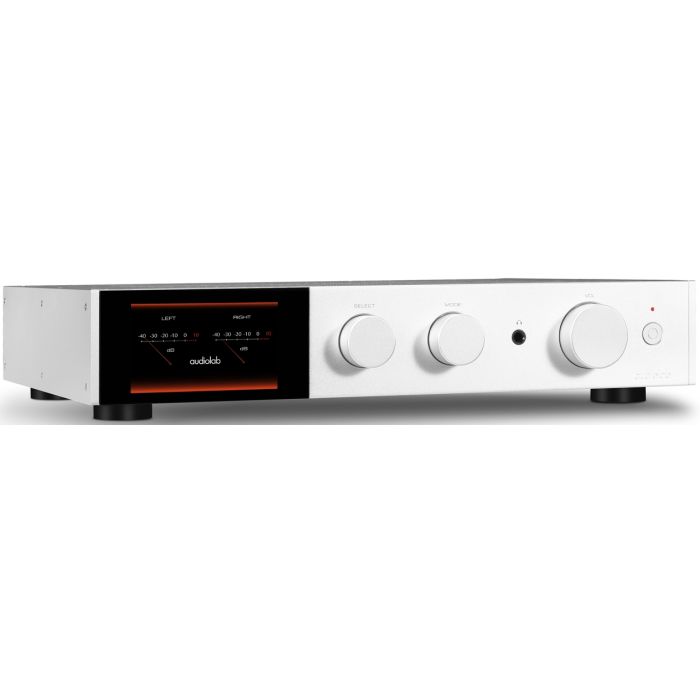

Audiolab 9000A Integrated Amplifier - Nearly New
In stock
Features
| Power Per Channel (8ohms) | 100W |
|---|---|
| Type | Class A/B |
| XLR Inputs | Yes |
| XLR Outputs | No |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
Design Philosophy and Core Technology
- 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC
- 4.3" (800 x 480mm) Large Size Full View IPS LCD
- Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
- Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Dedicated Current-Feedback Headphone AMP
- Integrated / PRE-POWER / PRE Only Modes
- USB Upgrade Support
- Inputs: 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
- Outputs: 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency
- Optical / Coaxial: 44.1kHz-192kHz;
- PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
- Gain (max.): +6dB (Line), +53dB (Phono MM)
- Input Sensitivity: 1Vrms (Line, Volume = 0dB), 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
- Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
- Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
- Frequency Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max. (Volume = 0dB)
- Output Impedance: 120 ohms
- Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
DAC
- D to A Converter: ES9038Pro
- Total Harmonic Distortion (THD): 2.1Vrms
- Max. Sampling Frequency: Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
- Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)
Power Amplifier Section
- Gain: +29dB
- Rated Power Output: 2 x 100W (8 ohms, THD<1%), 2 x 160W (4 ohms, THD<1%)
- Frequency Response: 20Hz-20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
- Input Sensitivity: 1Vrms
- Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
- Max. Output Current: 15A
Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
- Output Impedance: 2.35 ohm
- Load Impedance: 20-600 ohms
General
- Standby Power Consumption: <0.5W
- Net Weight: 9.4kg
- Gross Weight: 11.2kg
- Dimensions (mm) (W x H x D): 444 x 342 x 89
- Carton Size (mm) (W x H x D): 514 x 470 x 161
- Finish: Black / Silver
Description
Audiolab 9000A integrated amplifier is nearly new as it has been opened to show a customer. However its unused and complete with the full warranty. This offer will disappear once sold.
For more info, see our main Audiolab 9000A page
