Yamaha A-S3200 Integrated Amplifier
In stock
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Max Power (4O, 1kHz, 0.7%, EU): 170 + 170W
- Power/Ch (8/6/4/2O): 120/150/200/300W
- Damping Factor: ≧ 250 (1 kHz, 8 ohms)
- Freq: 0/-3dB (5Hz-100kHz) , 0/-0.3 dB (20Hz-kHz)
- RIAA EQ Deviation: ＋/-0.5 dB, Phono (MM/MC)
- Dimensions (WHD): 435×180×464 mm;
- Weight: 24.7 kg; 54.5 lbs
Rated Output: [20Hz-kHz, 0.07% THD]
90W + 90W (8O), 150W ＋ 150W (4O)
THD (20Hz-kHz): [Input 0.5 V]
- PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms)
- PHONO→LINE2 OUT: 0.005% (1.2 Vrms)
- CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
Signal-to-Noise Ratio:
- PHONO MC: 90 dB
- PHONO MM: 96 dB
- CD etc: 110 dB 113 dB
Input Sensitivity: [1 kHz, 100 W/8O]
- PHONO MC: 150 uVrms/50 ohms
- PHONO MM: 3.5 mVrms/47 kohms
- CD etc: 200 mVrms/47 kohms
MAIN IN:
- 1 Vrms/47 kO BAL1/2: 200 mVrms/100 kO
- Transformer: 623VA (Toroidal)
Description

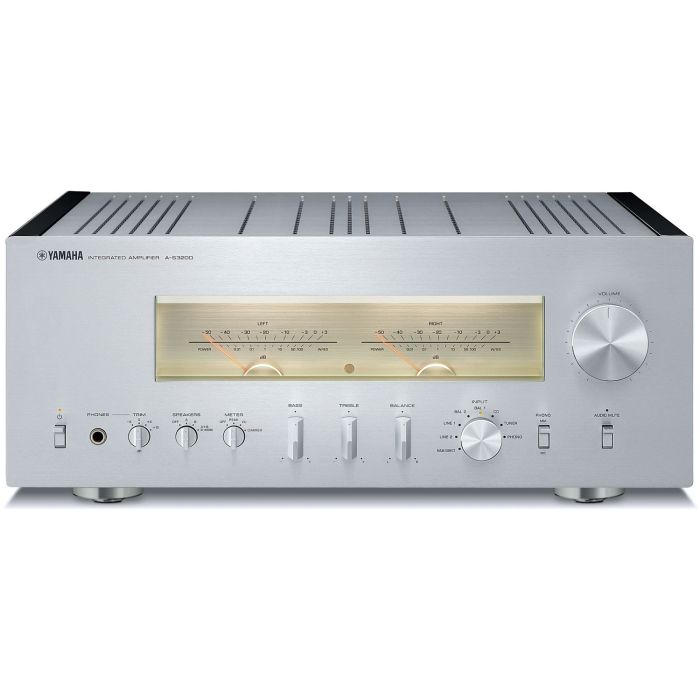

Yamaha A-S3200 integrated amplifier is the flagship amp in Yamaha’s new A-S series. It’s a step up from its siblings with 170 watts of power per channel, OFC terminals and high-quality PPS film capacitor. This amp captures Yamaha’s signature expressive sound and a long legacy of exceptional hi-fi. Available in stunning silver finish (black is now discontinued).
Emotive Music
To capture the music and the emotive qualities just as the artist intended it to be hear is an instrumental part of Yamaha’s philosophy. The A-S3200 features high end components designed to aid in this faithful reproduction of music. A large toroidal transformer minimises flux leakage and energy loss allowing the integrated amp to perform to its full ability, with a dynamic and musical expression.
PC-Triple C Wires
Similar to the A-S2200, the A-S3200 features PC-Triple C speaker wires created using an complex forging processes which allows the wires to be more linear by default. This provides a far smoother audio signal, which aids in the accurate reproduction of music. Such integrity in the audio signal along with the low impedance, low loss design preserves the faithfulness of the original recording. Doing so achieves an open and natural soundstage.
Fully Balanced
As well as featuring the range’s Mechanical Ground Concept, the A-S3200 has a fully balanced circuitry which yields countless acoustic benefits. This being a very low signal-to-noise ratio for the quietest quiet moments in a music passage and greater channel separation for a convincingly realistic performance.
Connectivity
As the flagship model, the A-S3200 eclipses the other amps in terms of connectivity. As well as five RCA inputs, including phono input, it features two balanced XLR inputs compared to the A-2200’s singular connection. It’s a bigger amp, crafted in a gorgeous silver casing and displays the pulse of the music on the gorgeous dimly lit VU level meter on the front panel.
Key Features
- Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation
- Large toroidal transformer in the pursuit of pure musicality
- Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
- High-quality PPS capacitors for delivering an authentically musical sound
- Exquisite level meters visually present the dynamics and pulse of the music
- Obsessive, meticulous switch design
- Heavy-duty brass feet with spikes or scratch-resistant base
- Original speaker terminals cut from pure brass with highly secure connection
