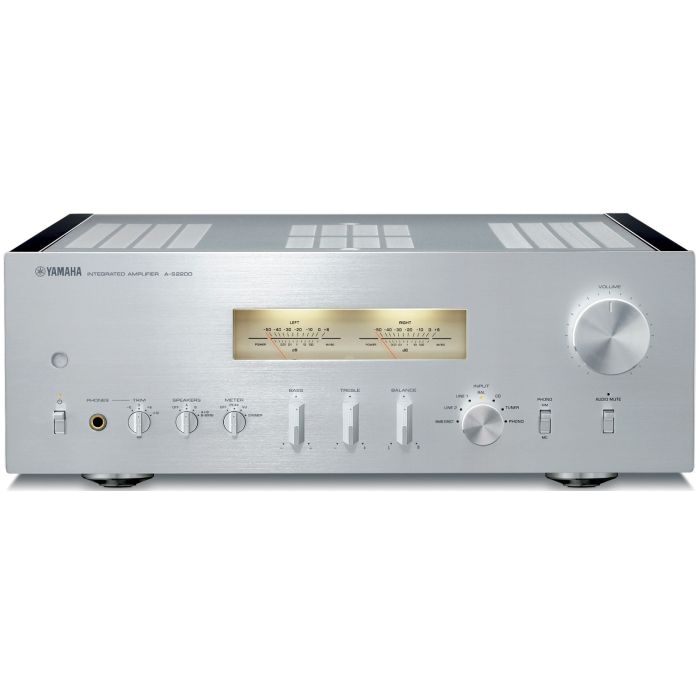

Yamaha A-S2200 Integrated Amplifier
In stock
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Max Power (4O, 1kHz, 0.7% THD): 160W+160W
- Power/Channel (8/6/4/2 ohms): 105/135/190/220 W
- Damping Factor: ≧ 250 (1 kHz, 8 ohms)
- RIAA EQ Deviation: ＋/-0.5 dB (PHONO (MM/MC))
Frequency Response:
- (5 Hz-100 kHz): 0 /-3 dB
- (20 Hz-20 kHz): 0 / -0.3 dB
- Dimensions (W x H x D): 435×157×463 mm
- Weight: 22.7 kg; 50.0 lbs
Rated Output Power [20 Hz-20 kHz, 0.07% THD]
- 90 W ＋ 90 W (8 ohms),
- 150 W ＋ 150 W (4 ohms)
THD (20Hz to 20kHz): [Input 0.5 V]
- PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms)
- PHONO→LINE2 OUT: 0.005% (1.2 Vrms)
- CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
Signal-to-Noise Ratio:
- PHONO MC: 90 dB
- PHONO MM: 96 dB
- CD etc: 110 dB, BAL114 dB
Input Sensitivity: [1 kHz, 100 W/8 ohms]
- PHONO MC: 150 uVrms/50 ohms
- PHONO MM: 3.5 mVrms/47 kohms
- CD, etc.: 200 mVrms/47 kohms
MAIN IN:
- 1 Vrms/47 kO BAL1,2: 200 mVrms/100 kO
- Transformer: 625VA (Toroidal)
Description
Yamaha A-S2200 integrated amplifier is part of the latest trio of amplifiers from Yamaha. Designed to embody the emotion, feeling and groove and rhythm of every musical piece, the fully balanced A-S2200 delivers 160 watts per channel.
Capturing the Emotion
At the core of Yamaha’s hi-fi is the desire to capture the real emotion and character in music as the artist intended. To faithfully reproduce music, the A-S2200 amp uses high-quality components such as a low loss toroidal transformer with minimal flux leakage and copper wire drawn from the winded core. This design allows the amp to the full energy and dynamics of the music to be conveyed.
PC-Triple C Wires
Instead of supper thick copper wires, the A-S2200 employs PC-Triple C speaker wire which are naturally more linear and allow a much clearer signal path so that music is presented as accurately as possible. This integrity in the audio signal along with the low impedance, low loss design preserves the faithfulness of the original recording and allows for a realistic and open soundstage to be achieved.
Mechanical Ground Concept
Featured throughout the range is the Mechanical Ground Concept which from the ground up ensures an expressive sonic performance is delivered. From the bass feet, to the main chassis, large power supply and block capacitors, all components are reinforced for the maximum rigidity and minimum vibration.
Design Features
This model also features a dedicated phono amp compatible with both MM and MC cartridges and equaliser amp for expressive vinyl playback. Alongside this, the amps aesthetic design which is beautifully engineered with elegant knobs and switches and a softly lit LED display on the front panel. It even features luxurious pure brass speaker terminals for the securest fit.
Key Features
- Fully balanced circuitry for low SNR and improved channel separation
- Large toroidal transformer in the pursuit of pure musicality
- Mechanical Ground Concept maximises rigidity and reduces unwanted vibration
- High-quality PPS capacitors for delivering an authentically musical sound
- Exquisite level meters visually present the dynamics and pulse of the music
- Obsessive, meticulous switch design
- Heavy-duty brass feet with spikes or scratch-resistant base
- Original speaker terminals cut from pure brass with highly secure connection
