Yamaha A-S1200 Integrated Amplifier
In stock
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Power (4O, 1kHz, 0.7% THD): 160W + 160W
- Power/Channel (8/6/4/2O): 105/135/190/220W
- Damping Factor: ≧ 250 (1 kHz, 8 ohms)
Frequency Response:
- (5Hz-100kHz): +0 / -3 dB
- (20Hz-20kHz): ＋0 / -0.3dB
- RIAA EQ: ＋/-0.5 dB (PHONO (MM/MC))
- Dimensions (W x H x D): 435×157×463mm
- Weight: 22.0 kg; 48.5 lbs
Rated Output: [20 Hz-kHz, 0.07%]
- 90 W ＋ 90 W (8 ohms)
- 150 W ＋ 150 W (4 ohms)
THD (20Hz to 20kHz): [0.5 V]
- PHONO MC → LINE2 OUT: 0.02% (1.2 mV)
- PHONO→ LINE2 OUT: 0.005% (1.2V)
- CD etc → SP OUT: 0.035% (50 W/8O）
- SNR: MC/MM: 90/96dB, CD: 110dB
Input Sensitivity: [1 kHz, 100 W/8O]
- PHONO MC: 150 uVrms/50 O
- PHONO MM: 3.5 mVrms/47 kO
- CD etc: 200 mVrms/47 kO
Main In: 1 Vrms/47 kohms
- Transformer: 625VA (Toroidal)
Description

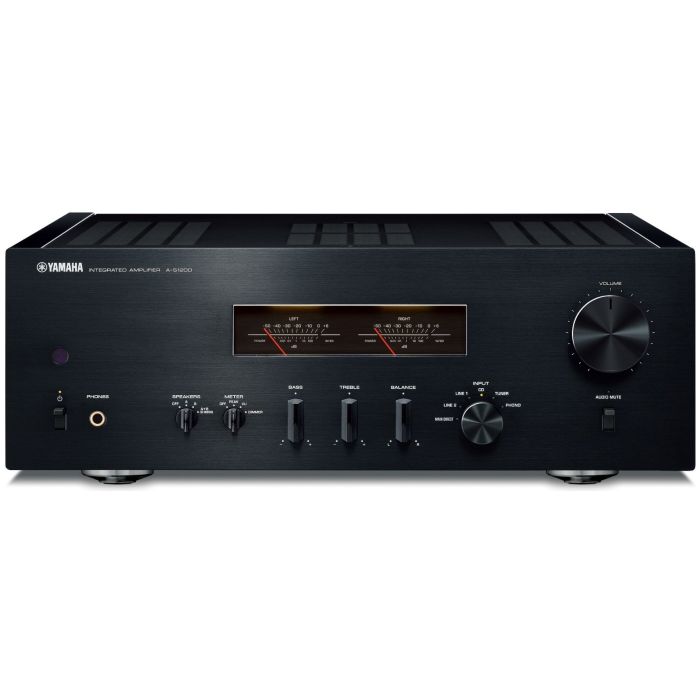

Yamaha A-S1200 integrated amplifier is a solid-state amp designed with the purest intentions in mind. It has a massive toroidal power transformer and boasts the latest technologies for the most energetic and emotional musical performance.
Musical Expression
This amp is designed with the intention to convey the emotional and passion embedded in music. Yamahas philosophy is designed to embody the artist emotion through their hi-fi components. With a powerful 160 watts of power per channel and a “Mechanical Ground Concept”, the A-S1200 offers control, structural rigidity and stunning sound.
Toroidal Transformer
A massive toroidal transformer is employed in the A-S1200, which is usually a component seen in Yamaha’s flagship models. It assists in an accurate and faithful reproduction of music. Not only this but as a hark to vintage hi-fi and an attractive visual statement, this amp features softly lit LED level meters at the front to display the dynamics and pulse of the music.
Natural Soundstage
To achieve low impedance, Yamaha uses thick wires for the ideal ground connection. Yamaha have paid attention to all the details, even the speaker terminals are made from luxurious pure brass and securely tightened. Attention to detail helps to present a more natural and spacious soundstage.
Key Features
- High Quality Components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Level meters convey dynamics and pulse with a nod to the nostalgic Hi-Fi era
- Floating Balanced Power Amplifier
- Mechanical ground concept maximises rigidity for expressive and rhythmic bass
- Silver plating feet
