Wyrestorm 24Gbps 4K HDR 4:4:4 60Hz Active Optical HDMI Cable Detachable Head
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- ARC Compatibility 2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos™
- Max Sampling Rate and Max Audio Channels 192 kHz / 32
- Audio Return Channel (ARC) Supported
- Communication and Control HDCP
- Pass -Through, 2.3 Supported EDID
- Pass -Through, RX to TX Ethernet 100Mbps supported
- Consumer Electronics Control (CEC) Supported
- Auto Low Latency Mode (ALLM) Supported
- Variable Refresh Rate (VRR) Supported
- Max Bend Radius 2cm
- Max Pull Tension 15kg / 33lbs
- Orientation Uni directional. Observe signal flow direction prior to installation
- Power Supply Passive 4.5v to 5.5v VCC (from connected source)
- Max Power Consumption 250mW
- Operating Temperature -10°C / 14°F to 50°C / 122°F. 10% to 90% non condensing
- Storage Temperature -20°C / -4°F to 60°C / 140°F. 10% to 90% non condensing
- Max BTU 0.85 BTU/hr
- Dimensions: Transmit Head Height: 9mm; Width: 19.8mm; Depth: 39.5mm
- Dimensions: Receive Head (Type A Fitted) Height: 9mm; Width: 20.5mm; Depth: 63.7mm
- Transmission Encoding Uncompressed AOC
Description

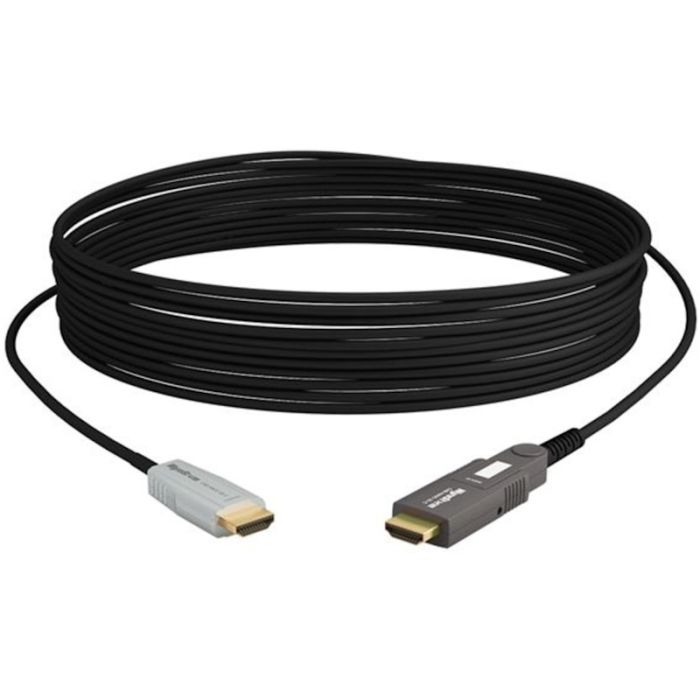

Wyrestorm 24Gbps 4K HDR 4:4:4 60Hz Active Optical HDMI Cable with Detachable Head is a 4 core CPR rated cable that has been designed for the future of 4K and 5K HDR content. This 24Gbps active optical cable is able to deliver both uncompressed HDMI content up to 24Gbps and is compatible with emerging HDMI technology such as ALLM (auto low latency mode) and VRR (variable refresh rate).
HDMI Communication
The 24Gbps active optical cable’s true native HDMI communication promises ARC and CEC communication between compatible devices and can be used in environments with excess RF or EM interference. The cable comes with a backup power injection using a micro USB cable (supplied) for source devices that aren’t able to provide enough power.
Design
The design on the cable includes strong Kevlar protected communication cores and high quality aluminum construction with a TX head Fixed Type-D head with a detachable Type-A head on the RX side. This cable can also be used anywhere a CPR fire rating is required.
