Velodyne Impact X 10” Subwoofer

The Velodyne Impact X 10” Subwoofer has been engineered to deliver deep, impactful bass performance while maintaining a compact and stylish form factor suitable for modern living spaces.

Combining advanced Velodyne acoustic technologies with an efficient front-firing 10-inch driver and carefully tuned bass reflex design, the Impact X 10 creates an immersive listening experience for both music and home cinema systems.

Its robust MDF cabinet construction minimises unwanted resonance while enhancing low-frequency accuracy and control. Finished in elegant black or white, the subwoofer blends effortlessly into contemporary interiors without dominating the room visually.

Designed for listeners who want powerful bass from a manageable enclosure size, the Impact X 10 offers excellent performance and flexibility for a wide range of systems, bringing greater scale, energy, and excitement to films, gaming, and high-quality music playback.

Redesigned 10-Inch Driver for Precision and Impact

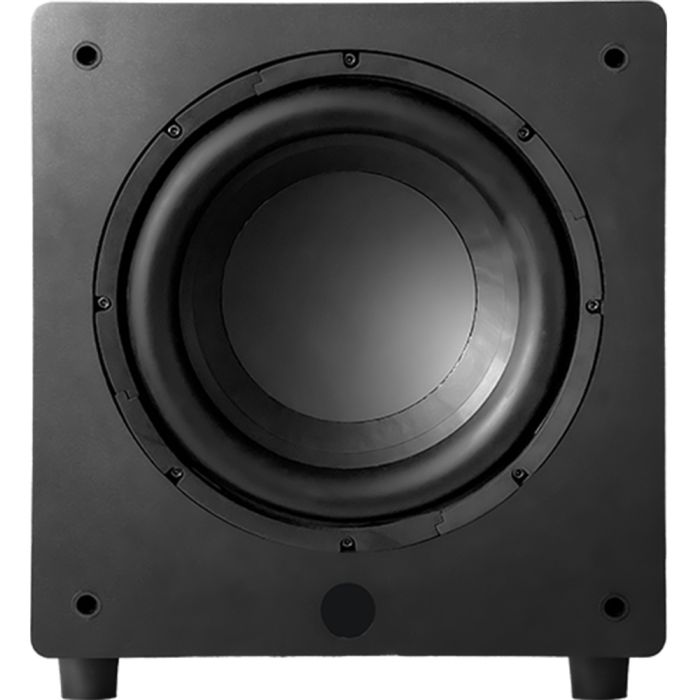

At the heart of the Velodyne Impact X 10” Subwoofer is a newly developed 10-inch high-excursion driver specifically designed to deliver powerful yet highly controlled low-frequency output. The reinforced paper membrane works alongside a dual ferrite magnet motor and a robust double-vented basket structure to maintain excellent driver stability and precision, even during demanding playback.

A four-layer 52mm voice coil further improves thermal handling and dynamic capability, allowing the subwoofer to reproduce deep bass with authority and accuracy. The front-firing driver configuration works in combination with the bass reflex port to extend low-frequency performance while preserving speed and articulation.

Whether reproducing subtle bass textures in music or the explosive impact of cinematic soundtracks, the Impact X 10 delivers tight, room-filling bass that remains controlled and musical without excessive boom or unwanted coloration.

Efficient Class D Amplification with Intelligent Protection

The Velodyne Impact X 10” Subwoofer uses a highly efficient Class D amplifier to provide impressive power output while maintaining excellent energy efficiency and low distortion. Delivering 250 watts RMS and up to 500 watts of dynamic peak power, the amplifier provides the control and headroom required for convincing low-frequency reproduction across a wide range of listening levels.

Velodyne’s anti-clipping circuitry continuously monitors amplifier performance to minimise distortion and protect the system during high-output playback, ensuring bass remains clean and controlled even during intense movie scenes or energetic music passages.

Adjustable crossover settings from 50Hz to 180Hz and selectable 0 or 180-degree phase control allow precise integration with a variety of loudspeaker systems. These flexible controls make it easy to optimise the subwoofer’s performance within different rooms and audio setups for balanced, seamless bass reproduction.

Part of the Expanding Impact X Series

While the Velodyne Impact X 10” Subwoofer offers an excellent balance between compact dimensions and powerful bass performance, it also forms part of the wider Impact X family, which includes larger 12-inch and 15-inch models for more demanding applications.

The Impact X 12 provides greater output capability and deeper bass extension for larger listening spaces, while the flagship Impact X 15 has been specifically developed for serious home cinema environments and large rooms.

The 15-inch version incorporates a specially designed rear slot bass reflex system, extended low-frequency performance down to 19Hz, and nine DSP-controlled sound modes accessible via remote control for advanced room optimisation.

Across the entire series, Velodyne maintains the same focus on controlled, distortion-free bass performance, compact cabinet design, and flexible integration, ensuring there is an Impact X model suitable for virtually every room size and listening requirement.

Elegant Construction and Everyday Usability

The Velodyne Impact X 10” Subwoofer combines premium acoustic engineering with practical everyday usability and refined aesthetics. Its solid 20mm MDF cabinet construction helps suppress resonance and vibration, contributing to cleaner and more accurate bass reproduction.

Compact enough to integrate discreetly into living rooms, media rooms, or dedicated home cinema systems, the subwoofer measures just 32cm wide, 36cm high, and 40cm deep while weighing approximately 15kg. Gold-plated RCA stereo and LFE inputs ensure excellent signal integrity, while additional high-level speaker connections provide compatibility with a wide variety of amplifiers and AV receivers.

Convenient power modes, including Off, Auto, and On simplify daily operation, and the dimmable display allows the subwoofer to remain visually unobtrusive in darkened cinema environments. Combining stylish design, powerful amplification, and precise low-frequency performance, the Impact X 10 delivers exceptional value for modern entertainment systems.
