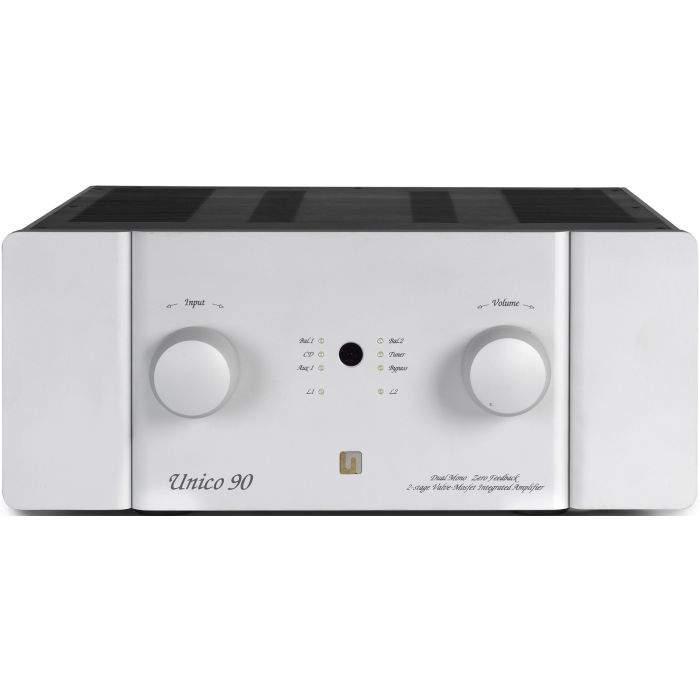

Unison Research Unico 90 Integrated Amplifier
In stock
Features
| Type | Class A |
|---|---|
| XLR Inputs | No |
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 1 Year (2 Years on registration) |
| Product Type | Other |
Tech Specs
Power: 100+100/160+160W RMS (8/4Ω)
FR: -1/-3dB (@12/6Hz, 45/80kHz)
Input Impedance: 21kΩ / 300pF
Input Sensitivity: 860mV RMS
Stage: Pure Class A, 2x ECC83 Triode
Class AB: thermo-stable HEXFET (3 Pair p/ch)
Balanced In: 2 x XLR pair
In: 3x RCA pair, Bypass RCA pair (Unbal)
Line Outputs: Tape (Fixed), Sub (Variable)
Output Connectors: 4+4 (Bi-Wiring)
Global Feedback Factor: 0dB
THD: <0.15% (1kHz, 1W), <0.5% (1kHz, 10W)
Output Resistance: < 0.4Ω
Power Consumption: 550W (Max Power, 8Ω)
Dimensions: 43.5 x 18 x 44cm
Weight: 20kg
Description
Unison Research's Unico 90 Integrated Amplifier sits near the top end of the Unico range borrowing much of its look and design from the flagship Unico 150 integrated amplifier.
Powerful
The dual mono design gives this amplifier more power and control of your music. Boasting 160W (4Ω) per channel the Unico 90 is capable of driving some of the most demanding loudspeakers with ease and poise.
Components
Featuring double triode totem pole ECC 83 and one parallel totem pole ECC81 triode valves per channel in the input stage and using high-quality German Mundorf components, Unico 90 has a unique circuit delivering 160W per channel.
Circuitry
This single stage due to the particular circuitry is able to amplify the input signal and directly drive the power stage. This amplifier has two stages, input stage and output stage and uses only local feedback.
Hybrid Amp
Unico 90 is a class A hybrid integrated amplifier with zero feedback, as the most precious valve amplifiers use only two stages. All of the gain and subsequently the "character" of the amp, is determined by the only tube stage made with ECC83 and ECC 81in particular multiple-parallel-totem-pole.
Connections
On the back of the Unico 90, there is broad flexibility with a selection of inputs including two balanced XLRs as well as standard RCA. There is also 4 + 4 speaker terminals allowing for bi-wiring and a subwoofer output to add even more depth and enthralment.
Key Features
- Audiophile grade integrated amplifier
- Output power 160 + 160W at 4Ω
- ECC83 (12AX7) valves used at input stage
- Additional balanced input (XLR)
- Subwoofer output
- Bi-wirable speaker outputs
- RC2 remote included
