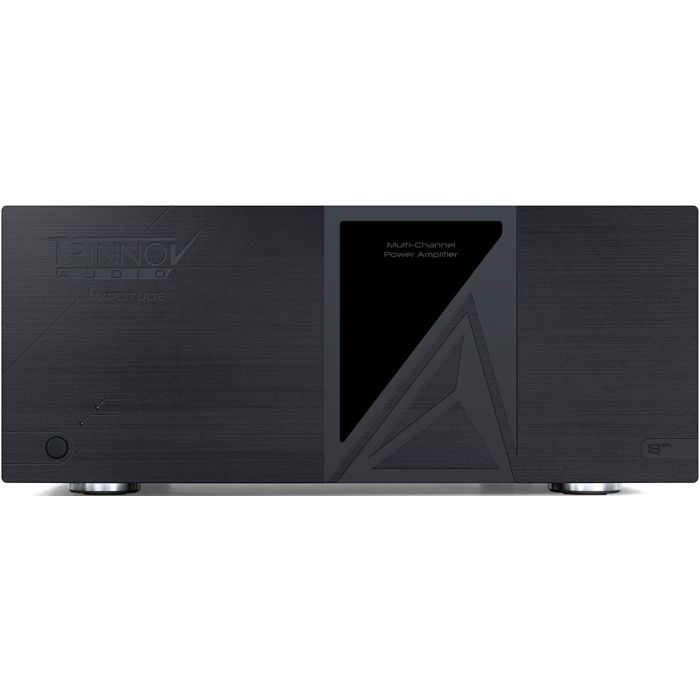

Trinnov Amplitude 8 Eight Channel Power Amplifier
In stock
This item isn't available to buy online. Please contact us to order or for more information.
Available. To discuss, call 0121 224 7300/7401
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
Audio In
- XLR: 1 Bal p/ch on each module
- Impedance: 47 kΩ, each phase
- Sensitivity: 6.15V RMS (+18dBu)
- Gain: 19.2dB
- Polarity: Pin 2/3, Positive/Negative
Audio Out
- Bal: 5-way binding posts p/ch
- Trigger in: 5-12V DC; Steady State
Performance
- Freq Response: +/-0.5dB (0-20k Hz)
- Frequency Load Independent
- Damping Factor: >6k/2k (100/20k Hz)
- SNR: 125dB Ref (A-Weighted)
- Crosstalk: 85dB
General
- Mains: 117/230V AC, 15/8A (50/60Hz)
- Consumption: <1/1500W Standby/max
- Dimensions (WHD): 443 x 186.5 x 502mm
Description
Trinnov Amplitude8 power amplifier, drives 8 channels each with 225W (into 8Ω), and is designed to boost your loudspeakers for the most spectacular performance in a home theatre setup.
Power of Sound
Amplitude8 uses two linear power supplies based on heavy-duty toroidal power transformers, this allows for a powerful three-dimensional soundstage huge dynamic range and bass impact only found in the best commercial theaters. The two linear power supplies based on heavy-duty toroidal power transformers allow every module of the Amplitude8 to deliver 225W into 8 ohms, 375W into 4 ohms and 500W into 2 ohms.
Huge Power
The power amp has a dual 4-channel design with twin power supply and 2 independent inlets contributing to the dynamic three-dimensional soundstage. The Hypex Ncore class D amplifier technology used is typically only found in the finest audiophile monoblocks. The unit also benefits from a high-efficiency, quiet convection-cooled design.
Movie Experience
Experience audiophile-grade sound reproduction in your home theatre with zero background noise during the most quiet scenes of the movie. You also get the finest sound quality and realism on music and movies alike, even at high loudness levels.
Compatibility
Integrating seamlessly with your Altitude32 AV preamp, the Amplitude8’s input level perfectly matches the Altitude32’s output level, ensuring an optimal use of the dynamic range at the amplification stage. The Altitude32’s outputs can easily be connected to the Amplitude8’s input via D-Sub or XLR cables. The front panel was designed to match the Altitude32’s aesthetics and is sure to stand proud in your home theatre’s rack.
State-of-Art Performance
The amplification stage of the Trinnov Amplitude8 features the industry’s lowest distortion and noise specifications and its performance is frequency-independent.
