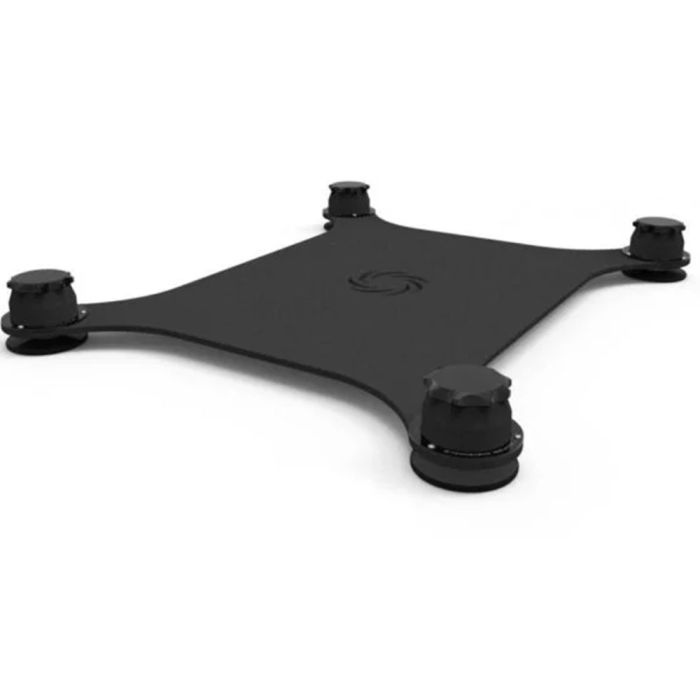

Townshend Audio Seismic Podium (Set of 2)

The Townshend Audio Seismic Podium (Set of 2) is designed to decouple loudspeakers from ground-borne vibration using a precisely tuned damped mass spring system. Isolation begins above 3 Hz, a frequency selected to sit well below the audio band while filtering out unwanted disturbances such as footfall, doors closing, traffic rumble and structural movement.

By preventing mechanical energy from travelling between the speaker and floor, the Podium removes a significant source of resonance and colouration. This approach allows the loudspeaker cabinet to operate in a more stable environment, free from feedback effects that blur timing and reduce clarity. The result is a more controlled, transparent and musically coherent presentation across the entire frequency range.

Captive Load Cells and Audible Gains

Each Podium incorporates four Captive Seismic Load Cells arranged in a stable four-point configuration. These elements are carefully specified to match the weight of the loudspeaker, creating the ideal spring mass relationship for effective isolation. When correctly matched, the speaker effectively floats within the audio waveband, dramatically reducing structure-borne feedback in all directions. Listeners typically experience tighter, more articulate bass, improved midrange openness and greater treble refinement. Soundstage depth and image focus are enhanced, with instruments and voices occupying more clearly defined positions in space. By eliminating vibrational resonances from the audio chain, the Podium enables greater dynamic expression and restores a natural sense of timing and flow.

Platform Sizes and Physical Dimensions

To accommodate a wide range of loudspeaker designs, the Seismic Podium is available in five standard sizes. Size 1 offers an internal platform of 290 mm by 220 mm with an external footprint of 429 mm by 359 mm. Size 2 increases to 400 mm by 300 mm internally and 549 mm by 454 mm externally. Size 3 measures 500 mm by 380 mm internally and 664 mm by 549 mm externally.

Size 4 provides 570 mm by 430 mm internally and 738 mm by 599 mm externally, while Size 5 extends to 640 mm by 480 mm internally and 808 mm by 649 mm externally. Bespoke dimensions are also available where required, ensuring accurate support for virtually any loudspeaker.

Load Cell Types and Weight Matching

Effective isolation depends on accurate load matching, and the Seismic Podium is therefore offered with multiple Load Cell ratings. Type A supports 5.2 to 10.4 kg, Type B 10.4 to 21.2 kg, Type C 21.2 to 42.4 kg, Type D 42.4 to 80 kg, Type E 80 to 128 kg, and Type F 128 to 200 kg per set of four Load Cells.

The chosen platform size and Load Cell type are combined to suit both the physical footprint and the total mass of the loudspeaker. Selecting the correct combination ensures the ideal spring mass balance, allowing the speaker to float correctly and achieve full isolation performance without compromising stability or safety.

Construction, Installation and Versatility

Constructed from heavy-duty black steel with a durable finish, each Podium provides a rigid and stable foundation suitable for use on wood, tile or carpeted floors. Adjustable top caps enable precise levelling, while the lower feet compensate for uneven surfaces. The platform raises the loudspeaker by approximately 20 mm, maintaining appropriate bass alignment while breaking cabinet-to-floor resonance.

Suitable for stand-mount speakers, floorstanders and subwoofers, the Podium integrates seamlessly into both domestic and professional environments. Supplied as a matched pair, the Townshend Audio Seismic Podium represents a long-term investment in mechanical control, transforming loudspeaker support into a critical component of high-performance audio reproduction.
