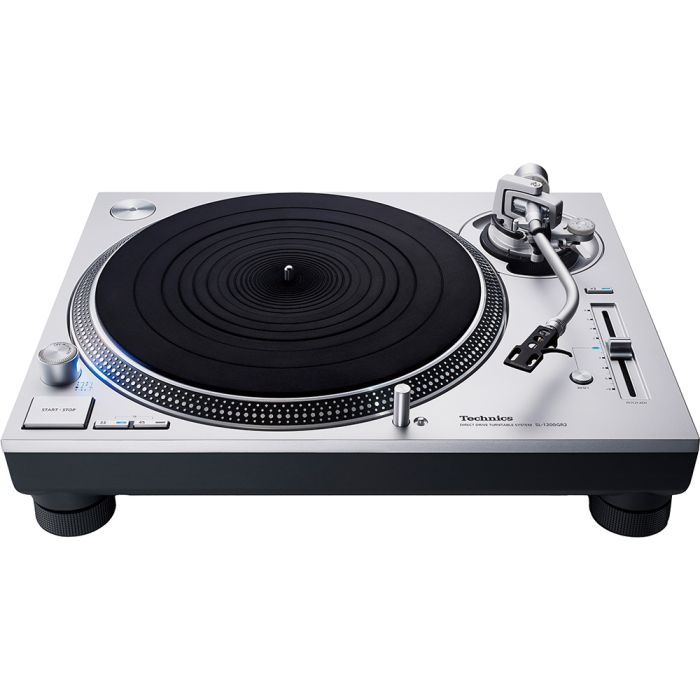

Technics SL-1200GR2 Turntable
In stock
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| Includes Cartridge | No |
|---|---|
| Includes Dust Cover | No |
| Brand Color | None |
| Includes USB Input | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Turntable Section
- Drive Method - Direct Drive
- Motor - Brushless DC motor
- Turntable Speeds - 33-1/3, 45 and 78 rpm
- Pitch Adjustment Range - ±8% and ±16%
- Starting Torque - 2.2 kgï½¥cm
- Build-up Characteristics - 0.7 s. from standstill to 33- 1/3 rpm
- Braking system - Electronic brake
- Wow and Flutter - 0.025%　W.R.M.S.
- Turntable Platter - Aluminum diecast
- Diameter：332mm
- Weight：Approx. 2.5kg (Including a rubber sheet)
- Tonearm Section
- Type - Static Balance
- Effective Length - 230mm
- Overhang - 15mm
- Tracking Error Angle - Within 2° 32'　(at the outer groove of 30cm(12") record)
- Within 0° 32'　(at the inner groove of 30cm(12") record)
- Offset Angle - 22°
- Arm Height Adjustment Range - 0 - 6mm
- Stylus Pressure Adjustment Range - 0 - 4g (Direct Reading)
- Headshell weight - Approx. 7.6g
- Applicable Cartridge Weight Range - (without auxiliary weight)
- 5.6 - 12.0g
- 3.1 - 9.5g　(using cartridge spacer)
- 14.3 - 20.7g (including head shell)
- (with auxiliary weight)
- 10.0 - 16.4g
- 7.5 - 13.9g　(using cartridge spacer)
- 18.7 - 25.1g (including head shell)
- Cartridge Mounting Dimension - 12.7 mm (1/2") interval
- Head Shell Terminal Lug - 1.2mmφ 4-pin terminal lug
- Terminals
- Audio Output - PHONO (Pin Jack) x 1
- EARTH TERMINAL x 1
- General
- Power Supply - AC220-240 V, 50/60 Hz
- Power Consumption - 11 W (ON)
- 0.3 W (OFF)
- Dimensions (W x H x D) - 453 x 173 x 372 mm
- Weight - Approx. 11.5kg
- Operating temperature range - 0℃ to +40℃
- Operating humidity range - 35% to 80% RH (no condensation)
- Accessories - Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Cartridge spacer, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
Description
The Technics SL-1200GR2 Turntable has the latest upgrades and the newly developed Delta Sigma motor drive. This drive system suppresses any minute vibrations generated by the motor. As a result, the sound has richer spatial expression.
Next, the Switching power supply has a noise detection circuit that automatically eliminates any noise on the output. This is a two-speed turntable with a strobe and a large pitch control.
The weight of the platter has been increased and more strengthening ribs added. Lastly, the precise S-shaped tonearm has a very precise bearing so that the force needed to move the tonearm is very low. The low mass arm ensures precise tracking and the new motor reduces noise and interference, particularly in the midrange, at about 3kHz.
The next generation Delta sigma drive
Technics developed the first direct-drive turntable in 1970. And notably, the Technics SL-1200GR2 Turntable continues this legacy. The direct drive technology dealt with problems such as poor signal-to-noise ratios and wow and flutter. As a result, direct-drive turntables became popular with radio stations.
This was due to their fast start capabilities as well as sound quality. In 2016 Technics developed the coreless direct drive motor. This has been used on most Technics turntables since then. However, now comes the Delta Sigma drive. This aims to eliminate minute vibrations that can muddy the sound.
The latest motor drive technology
The latest motor uses PWM to give greater control over the speed accuracy. The motor drive is inspired by the same technology that Technics developed for Class D digital amplifiers. These also use Pulse Width Modulation to achieve a low distortion and precise output.
The ΔΣ-Drive uses delta-sigma conversion methods to reduce minor speed inaccuracies as well as motor vibration. The result is a richer spatial expression.
Low noise switching power supply
The Technics SL-1200GR2 Turntable features a high-frequency switching power supply. In fact, it operates above 100khz, which is well away from the audio range. This prevents any interference. Switching power supplies also do not need a large transformer, so there is no hum or mechanical vibration.
Additionally, there is a noise-cancelling circuit that combines a noise detection device with an error correction amplifier. This detects any noise on the output and applies an anti-phase signal that has the effect of cancelling out the noise.
Two layer highly rigid platter
The platter of the Technics SL-1200GR2 Turntable uses a two-layer construction to achieve high rigidity and low resonance. The rear surface is covered in damping rubber and there are more strengthening ribs than in previous versions.
This increases the surface area in contact with the rubber. At 2.5kg the platter is 0. 8kg heavier and the increased mass helps to eliminate speed variations and resonance.
Highly sensitive tonearm
The low mass tonearm of the Technics SL-1200GR2 Turntable enables the record to be tracked with great accuracy. The amount of force needed to move the arm is reduced by the use of a cut-processed housing, that uses high-precision bearings.
The tonearm is a traditional S-shaped design with a lightweight aluminium pipe. High build quality ensures a high initial motion sensitivity of only 5mg. A headshell is supplied, leaving the choice of the cartridge up to you.
High grade parts
The body of the Technics SL-1200GR2 Turntable features a two-layer construction that unifies the BMC and the aluminium chassis. Additionally, the feet are made of special silicone rubber that absorbs any external vibration preventing feedback. Lastly, gold-plated RCA terminals are used.
The socket enclosure is shielded to prevent any noise from entering. A head shell is provided and most types of cartridges can be fitted.
