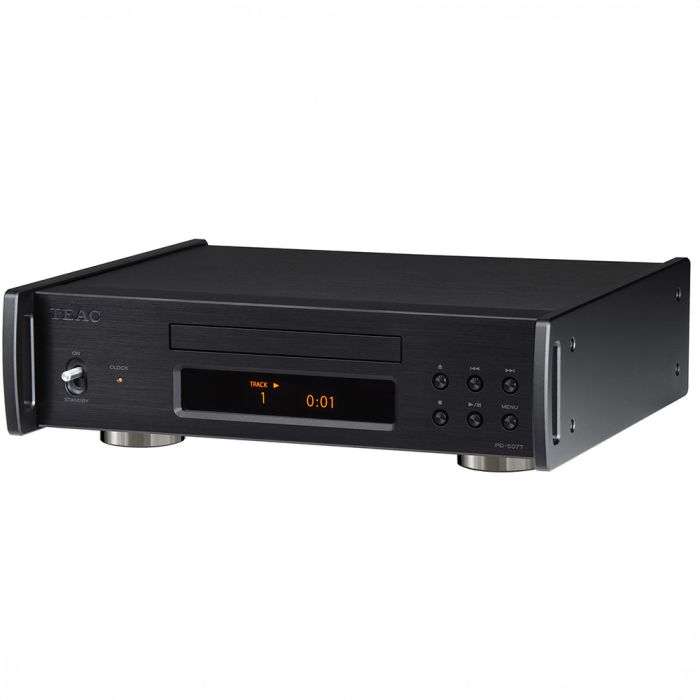

TEAC PD-507T CD Transport

The TEAC PD-507T CD Transport builds upon the legacy of the renowned CD-5020A, a mechanism trusted in broadcast environments for its durability and consistent performance. For the PD-507T, TEAC has refined this mechanism to deliver even greater accuracy in reading discs, enhancing the sound quality beyond its predecessor.

A semi-floating drive mount isolates vibrations from the spindle motor and actuator, while carefully selected rigid connections eliminate coloration caused by elastic materials. This balance of rigidity and flexibility ensures stable disc reading and precise audio reproduction.

With custom-tuned drive control circuitry, the PD-507T maintains an open and natural sound signature, minimizing noise for a pure, faithful playback experience designed for discerning audiophiles.

Precision Circuitry and Power Supply

At the heart of the PD-507T lies a meticulously engineered power supply system. A toroidal-core transformer with triple secondary windings and triple rectifier circuits provides independent power to the audio system, the CD mechanism, and the display.

This separation minimizes interference, allowing the signal path to remain clean and free of noise. Improvements over earlier models include separate power supplies for the clock and digital outputs, enhancing the precision of sound reproduction.

The BTL-driven spindle motor and pickup lens actuator further reduce unwanted noise, ensuring that every musical detail is retrieved from the disc with remarkable clarity. These innovations combine to deliver playback that is both dynamic and refined.

Advanced Digital Signal Management

The TEAC PD-507T offers selectable coaxial and optical digital outputs, giving users flexibility while preserving maximum signal purity. By disabling unused output circuits, the transport minimizes system load and improves output clarity.

A low phase noise crystal oscillator serves as the internal clock, maintaining exceptional accuracy in digital transmission. This ensures that the sound you hear is a faithful reproduction of the original recording. For those seeking even greater precision, the PD-507T can be paired with TEAC’s CG-10M-X master clock generator.

With a 10MHz external clock input, users can synchronize both the transport and an external DAC for an even higher level of system performance, elevating the entire digital listening experience.

Solid Construction and Vibration Control

Engineered with audiophile performance in mind, the PD-507T is housed in a luxurious full-metal enclosure that shields internal components from electromagnetic interference. Heavy-duty 8mm aluminum side panels and a semi-floating top plate contribute to structural stability while enhancing sonic openness.

TEAC’s proprietary Stress-Less Isolation Foot system, machined from solid steel, provides three-point support and allows slight movement at connection points. This design minimizes vibration transfer and ensures natural timbre with precise imaging.

The result is an enclosure that not only looks elegant but also plays an active role in maintaining purity of sound. The careful attention to vibration control highlights TEAC’s commitment to detail and high-fidelity playback.

Usability and System Integration

Beyond its sonic excellence, the TEAC PD-507T is designed for user convenience and integration into complex systems. A bright amber OLED display offers clear playback information, while playback modes such as shuffle, repeat, and program functions provide flexibility. Remote control functionality and a power-on play feature make operation simple and intuitive.

For system-wide control, trigger input and output terminals allow the PD-507T to be powered on in sync with other components. Available in silver or black finishes, its compact yet robust form fits seamlessly into audio racks or desktop setups.

Combining timeless design, precision engineering, and versatile features, the PD-507T is a true high-end CD transport for modern audiophiles.
