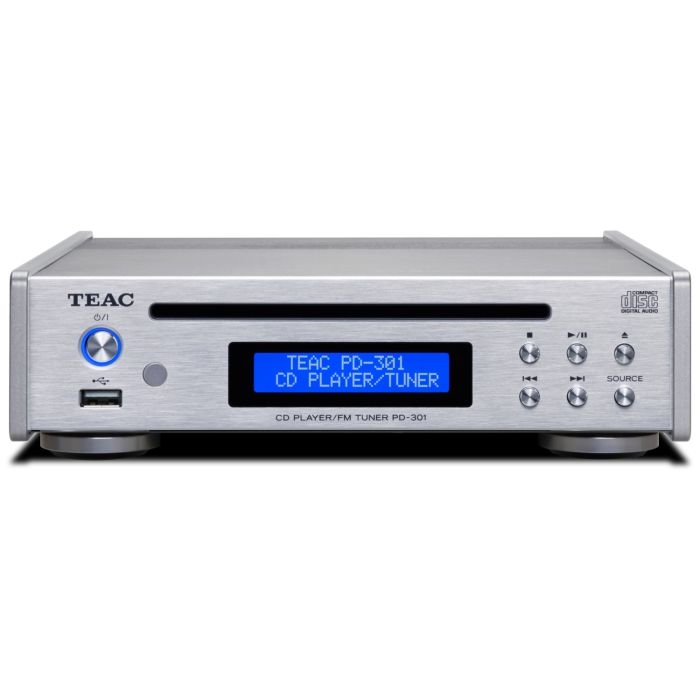

TEAC PD-301DAB-X CD Player
In stock
Features
| Coaxial Digital Output | No |
|---|---|
| Optical Digital Output | No |
| Includes Pre Amp | No |
| Brand Color | None |
| Includes DAC Digital Inputs | No |
| USB Digital Output | No |
| AES/EBU Digital Output | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Remote Control | No |
| Upsampling Feature | No |
| Product Type | Other |
Tech Specs
CD Player Section
- Supported media: CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported)
- Max number of files: 300 (including Folders)
- Max number of folders: 50
- Max number of layers: 16 (Max path name: 260 characters including file name)
USB Section
- Supported USB devices:USB Mass Storage device class
- Interface: USB2.0 (Full speed), USB1.0 (High speed), USB3.0 compatible
- File System: FAT16, FAT32
- Max number of files: 300 (including folders)
- Max number of folders: 50
- USB bass power: DC 5V, max 500mA
WAC (USB Only)
- Extension: .wav, .WAV
- Bit depth: 16-bit
- Sampling frequency: 44.1k, 48kHz
MP3
- Extension: .mp3, .MP3
- Bit-rate: 32k to 320kbps and VBR
- Sampling frequency: 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
- Format: MPEG1/2 Audio Layer-3
WMA
- Extension: 32k to 320kbps and VBR
- Bit-rate: 32k to 320kbps and VBR
- Sampling frequency: 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz
- Format: WMA ver.9 standard (DRM not supported)
AAC (USB Only)
Extension .m4a, .M4A
Bit-rate 8k to 320kbps and VBR
Sampling frequency 8k, 11.025k, 12k, 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
Format MPEG4 AAC-LC (Audio stream)
Tuner Section
- Band: DAB Band-III, FM
- Frequency range DAB: 174 to 240MHz
- FM: 76.0 to 108.9MHz
- Number of Presets DAB: 10
- FM: 20
Audio Outputs
Analogue audio
- Connector: RCA Pin x 1 pair
- Impedance: 470 ohms or less
- Max output level: 2.0Vrms (1kHz, Full scale, 10k ohms loaded)
- Frequency response: 20Hz to 10kHz (-3dB)
- Signal-to-Noise ratio: 113dB
- Total harmonic distortion: 0.005% (1kHz)
Coaxial digital audio
- Connector: RCA Pin x 1
- Impedance: 75 ohms
- Output level: 0.5Vp-p
Optical digital audio
- Connector: TOS-link x 1
- Sampling frequency: 44.1kHz
- Bit depth: 16-bit
General
- Operating power: AC 100-240V, 50/60Hz
- Power consumption: 8W
- Overall dimensions: (W x H x D) 8.5” x 2.4” x 9.4” / 215 x 61 x 238mm
- Net weight: 4.6 lbs. / 2.1kg
Description
TEAC PD-301DAB-X CD Player with high performance DAC gives you everything you need for your musical needs. It is a CD player, USB memory player and FM tuner all in one, providing you with many ways to listen to your favourite tracks and radio stations.
Built in DAB/FM Tuner
The PD-301DAB-X benefits from an advanced circuit design which enables the delivery of high quality analogue sound to your amplifier. Unlike many other CD players, this model incorporates an integrated DAB/FM tuner within it's compact cabinet. Digital optical and coaxial outputs deliver audio signals from CD, USB and the built in DAB/FM tuner.
Slot-Load CD Drive Mechanism
TEAC PD-301DAB-X CD Player is a versatile little unit that can be easily placed within any home audio system. Whilst being perfect for use in the home, it has a compact CD drive mechanism designed especially for audio applications. This high precison slot load cd-drive ensures very fast loading times and auto playback function. This means you can enjoy your music just seconds after inserting a CD into the slot.
Robust Design with Small Footprint
Crafted in robust aluminium for the body and panels means the The PD-301DAB-X is exceptionally well built, and provides brilliant rigidity, minimising detrimental effects of unwanted vibrations on audio quality. For a CD player so robust, its dimensions are tiny. The compact size and small footprint allow the The PD-301DAB-X to be placed on even the smallest of desktops comfortably.
Key Features
- Program playback (CD-DA only)
- Shuffle and Repeat playback
- Song title and artist name display (ID3 tag required)
- Selectable Folder/File browse modes
- Analogue LINE audio output via RCA Pin
- Card-type Remote Control
- Full-metal body
- Auto power-saving (can be disabled)
- RoHS compliant
