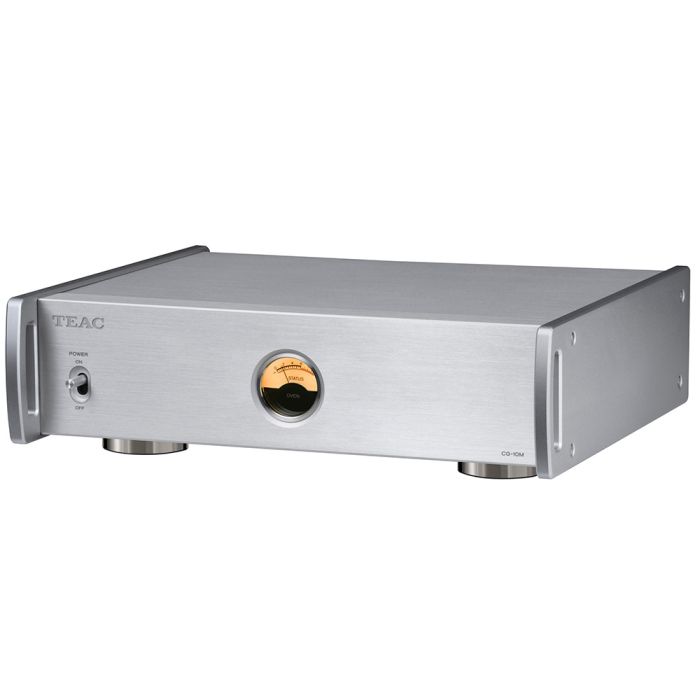

TEAC CG-10M-X Master Clock Generator

The TEAC CG-10M-X Master Clock Generator is a high-end component designed to elevate digital audio performance to its ultimate potential. By supplying an extremely precise 10MHz clock signal to DACs, CD players, and network audio players, it ensures accurate timing and faithful sound reproduction. At its core lies TEAC’s Reference OCXO (Oven Controlled Crystal Oscillator), engineered to maintain extraordinary stability under temperature fluctuations.

A front-panel analog oven status meter allows users to visually confirm the stability of the oscillator during operation, ensuring confidence in performance. With the “X” Edition, TEAC has refined the buffer amplifier circuit, power supply, and chassis design, resulting in more natural, open, and lifelike sound. The elegant screwless finish in black or silver complements the Reference 500 Series.

Why Master Clock Generators Matter

In both high-end audio playback and professional music production, a master clock generator is indispensable. All digital devices rely on an internal clock to process signals, but fluctuations can degrade timing accuracy. This is especially critical with high-resolution formats like DSD, which operate at MHz speeds and demand flawless synchronization.

By providing an external ultra-precise reference signal, the TEAC CG-10M-X ensures that digital-to-analog conversion is not compromised by jitter or instability. The result is a soundstage that is clearer, more dynamic, and closer to the original recording. Whether used in a hi-fi system or a complex studio setup, the CG-10M-X delivers accuracy and musical integrity that internal clocks alone cannot achieve.

TEAC Reference OCXO – Stability at the Core

The TEAC CG-10M-X employs a custom-designed oven-controlled crystal oscillator (OCXO), which is enclosed in a thermostatic chamber to maintain a constant temperature. Temperature fluctuations are one of the biggest sources of clock signal errors, so by stabilizing the environment, TEAC drastically reduces oscillation drift. The OCXO achieves frequency temperature characteristics within ±3ppb and precision within ±0.1ppm, levels that represent class-leading accuracy.

Each OCXO undergoes rigorous quality inspection, with every case featuring a laser-engraved serial number and TEAC Reference logo to guarantee authenticity. This engineering ensures that the clock generator provides an unwavering time base, resulting in sound reproduction that is as faithful and natural as possible, even under demanding digital processing conditions.

Connectivity and Circuit Refinement

Flexibility is built into the CG-10M-X with four gold-plated BNC connectors, allowing simultaneous connection to up to four compatible devices such as DACs, SACD/CD players, or digital transports. Each output is independently buffered, preventing signal degradation or interference when multiple devices are in use.

The internal circuitry is carefully isolated, with dedicated buffer amplifiers ensuring a pristine signal path. For the “X” edition, TEAC refined both the output buffer stage and the power supply for greater sound purity, achieving an even more open and natural audio presentation. Combined with the ultra-precise clock signal, these improvements guarantee that connected devices operate at peak performance, bringing out every detail and nuance in the music.

Advanced Features for Precision Monitoring and Power

One of the unique features of the TEAC CG-10M-X is its oven status analog gauge, which visually displays oscillator stability. As the internal oven reaches optimal temperature, the gauge gradually indicates reduced power consumption, confirming that the unit has achieved perfect timing conditions. Typically, stability is achieved within two minutes, with full precision reached after about ten minutes.

The backlit meter includes a dimmer control for customization. Power delivery is handled by a high-capacity toroidal-core transformer, which provides clean, stable energy essential for precise clock generation. This carefully engineered combination ensures accuracy, reliability, and transparency in audio reproduction across every listening session.

Refined Construction and Elegant Design

TEAC has paid equal attention to mechanical design, ensuring both stability and aesthetics. The CG-10M-X adopts a semi-floating aluminum top panel, which reduces resonance while enhancing openness in sound. Its three-point “Stressless Foot” system allows the unit to sit stably on uneven surfaces while minimizing vibration and resonance, contributing to a more natural sonic presentation.

The robust full-metal chassis shields the unit from electromagnetic interference and maintains durability, all while fitting within a compact A4-sized footprint. Available in black or silver finishes, the CG-10M-X seamlessly integrates with TEAC’s Reference 500 Series components. With its balance of technical precision, elegant design, and musical performance, the TEAC CG-10M-X Master Clock Generator is an essential addition to any high-fidelity digital system.
