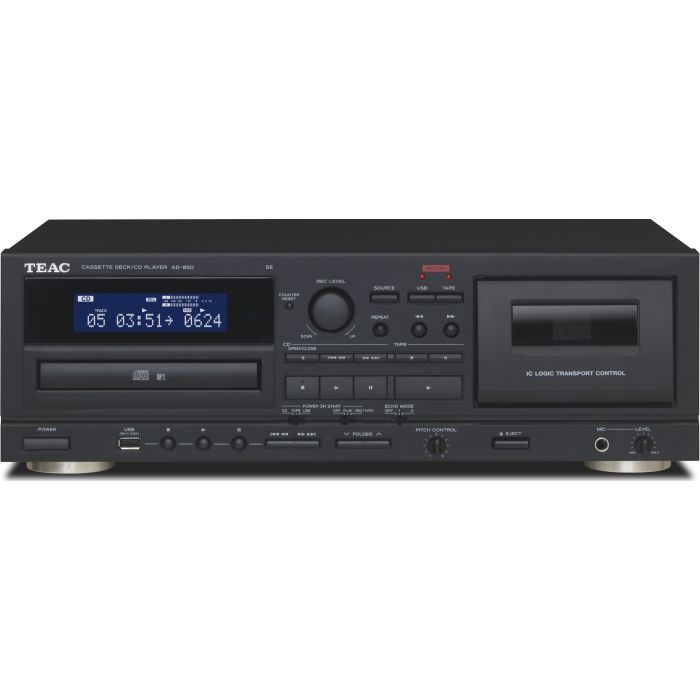

TEAC AD-850-SE Cassette Deck CD Player
In stock
Available - Usually ships within 7 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Cassette Deck
- Track system: 4-track 2-channel stereo
- Head construction: recording/playback head × 1, Erase head × 1
- Tape type: C-46/C-60/C-90
- Tape speed: 4.76cm/sec
- Motor: DC servo motor× 1
- Pitch control: about +/-10% (playback only)
- Wow and flutter: 0.25% (W.RMS)
- Frequency response (overall):
- Chrome: 50 to 12,000Hz +/-3dB
- Normal: 50 to 12,000Hz +/-3dB
- S/N ratio (overall): 59dB (3%THD level WTD)
- Winding time: about 120 seconds (C-60 tape)
- Line input (RCA): 462mV (50kΩ or higher input impedance)
- Line output (RCA): 462mV (50kΩ or higher impedance load)
CD player
- Pickup: 3-beam semiconductor laser
- Digital filter: 8x oversampling digital filter
- Frequency response: 20Hz to 20kHz +/-2dB
- Total harmonic distortion: 0.02% or less (1kHz)
- S/N ratio: 87dB or more (IHF-A)
- Analog output (RCA): 2.0V
USB
- Interface: USB 1.1 FULL SPEED (12Mbps)
...Playback:
- Format: MP3
- Frequency response: 20Hz to 20,000Hz(+/-2dB)
- S/N ratio: 85dB or less
- Playback bit rate: 8k to 320k bps
...Recording:
- Format: MP3
- Frequency response:
- CD → USB: 20Hz to 15,000Hz(+/-3dB)
- LINE IN → USB: 100Hz to 15,000Hz(+/-3dB)
- S/N ratio: 85dB or more
- Bit rate: 128kbps
Microphone input
- Connector: 6.3mm(1/4") mono phone jack
- Nominal input level: 0.78mV (−60dBm)
- Input impedance: 47kΩ or more
- Power supply function: None
Other
- Power: 100V AC, 50/60Hz
- Europe: AC 230V, 50Hz
- Power Consumption: 13W
- Dimensions: 435(W) × 145(H) × 288(D)mm(including protrusions)
- Weight (Net): 4.8kg (10 5/8 lb)
- Operating temperature: 5 to 35ËšC
- Operating humidity: 5 to 85% (no condensation)
- Storage temperature: -20 to 55ËšC
Description
TEAC AD-850-SE cassette deck and CD player is capable of recording to USB flash drives, it includes a microphone jack with an echo function that can be used for karaoke. This model is an updated version of the original AD-850 with a new chipset.
Playback
A cassette deck and CD player in a single unit, this combined model also supports recording and playback with USB flash drives for a total of three types of media. The built-in mic input jack also allows you to enjoy karaoke using backing music playing from a CD, cassette or USB flash drive.
Recording
A variety of recording combinations are supported, including recording from a cassette tape, CD, external input or mic input to a USB flash drive (MP3 file) as well as recording from a CD, USB flash drive (MP3 file), mic input or external input to a cassette tape.
USB Flash Drive
Recorded files will be saved to automatically generated folders according to the source (CD, LINE or TAPE) on USB flash drives enabling easy digital to analogue conversion without a computer.
Microphone In
A mic input jack is built into the front of the unit. You can record a connected mic by itself or mix in the mic signal when playing back and recording CDs, cassettes and USB flash drives.
Echo effect
Echo can be added to the sound from the mic connected to this unit. The front panel switch can be used to set the effect to two levels or turn it off. With the AD-850-SE and a mic, you can easily enjoy karaoke.
CD Player
In addition to audio CDs, the CD player can play CD-R/RW discs containing MP3 files. During MP3 playback, information including ID3 tags and file names is shown. Various playback modes include program, shuffle and repeat (one track, all tracks or program).
Functions
Various playback modes include programmed, repeat and shuffle playback from CDs and USB flash drives. This cassette mechanism is a two-head single one-way type and supports cassette tapes in normal, chrome and metal positions. Key functions including pitch control playback (±10% adjustment range) are offered.
Key Features
- Combined cassette deck and CD player
- USB flash drive recording and playback supported
- Mic input jack with echo function
- Karaoke function (mic input with CD, TAPE or USB playback)
- Pitch control playback function
- Mic signal mixes with playback and records to USB or cassette
- Two-head single one-way cassette deck
- CD player supports CD-R/RW discs and MP3 file playback
- USB flash drive recording and playback functions
- Convenient timer function (requires commercially-available timer)
Included Accessories
- Remote control (RC-1329)
- AAA batteries × 2
- Rack RCA audio cables × 2
- Owner’s manual(Warranty card)
- Quick start guide for recording
