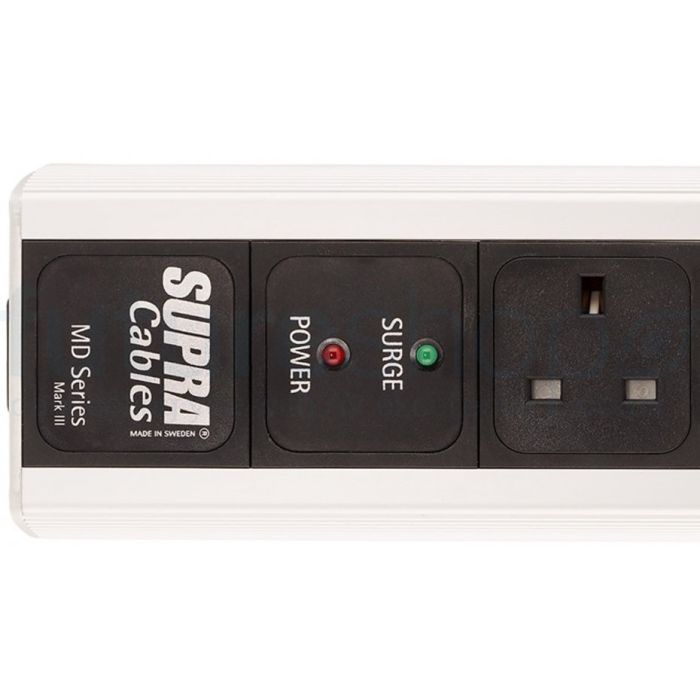

Supra LoRad Mk3 Surge Protected Mains Distribution Block
In stock
Features
| Fitted Cable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | Limited Lifetime |
| Product Type | Other |
Tech Specs
2-way to 6-way blocks:
- Output 1 - Non Filtered, Surge protected
- Outputs 2 to 6 - Filtered, Surge protecteD-way to 15-way blocks:
- Outputs 1 & 2 - Non filtered, Surge protected
- Outputs 3 to 15 - Filtered, Surge protected
- Requires a 16A power cable for the 16A inlet
- Chassis: Aluminium
- Sockets: European Standard
- Inlet: SUPRA MCH-10, IEC320 16A
- Available Number of Outlets: 2, 4, 6, 8, 10
- Outlets: UK 3 Pin sockets, fully shielded in Aluminium
- Radiation Free, with Non-Intrusive Filtering and 3-way Surge Protection
- NIF-filter & Shielded
- Radio frequency interference reduced by 40dB!
- Internal wiring of 2.5sq mm oxygen free copper conductors
- Supports a staggering 2300W of continuous power!
- Protects you and your Hi-Fi audio system from harmful noise fields and radiation!
- Max AC Current: 10A
- Max AC Voltage: 250V
- Max Continuous Power: 2300W
- Fuse: Ceramic 10A, Slow
- Surge Protection: Type 3
- Uoc = 2.5kV(P-N), 4.0kV(P(N)-PE)
- Up = 2.0kV(P-N), 2.05V(P(N)-PE)
Description
Supra LoRad Mk3 surge protected mains distribution block with 16 ampere chassis connector input provides NIF (non-intrusive filtering) and 3-way SP (surge protection).
Resists Interference
Thanks to the conductive aluminium chassis, the Supra mains blocks are fully shielded against noise interference. The shielding helps prevent 50 Hz mains affecting nearby cables whilst simultaneously reducing RFI and other mains noise interference. To get the best out of the mains block it must be connected to a grounded wall socket and each device connected must also be shielded for maximum dampening properties and immunity to interference.
Surge Protection
Equipped with 3-way Surge Protection developed by Supra which protects neutral to earth, live to earth and live to neutral. This protection is far superior than standard surge protection as it protects against field surges by proximate lightening strikes. Alongside this Supra Nif Transient filter provides non-intrusive filtering of RF and noise without slowing down or muting the dynamics from your hi-fi system.
Key Features
- LoRad (low radiation of electric and magnetic alternating fields) keeps everyone in the home free from harmful influence
- Shielding to protect your components from electric noise and RFI, allowing you to use your hi-fi or home cinema system to its full potential
- Short pitch twisting of the lead cores cancels the magnetic alternating fields and will not infect adjacent interconnects with noise feedback
- LoRad conceptual shielded design results in a cleaner sound, improved picture and a healthier home and working environment with low levels of harmful fields
- 3-way Surge Protection
- Supra NIF Transient Filter
