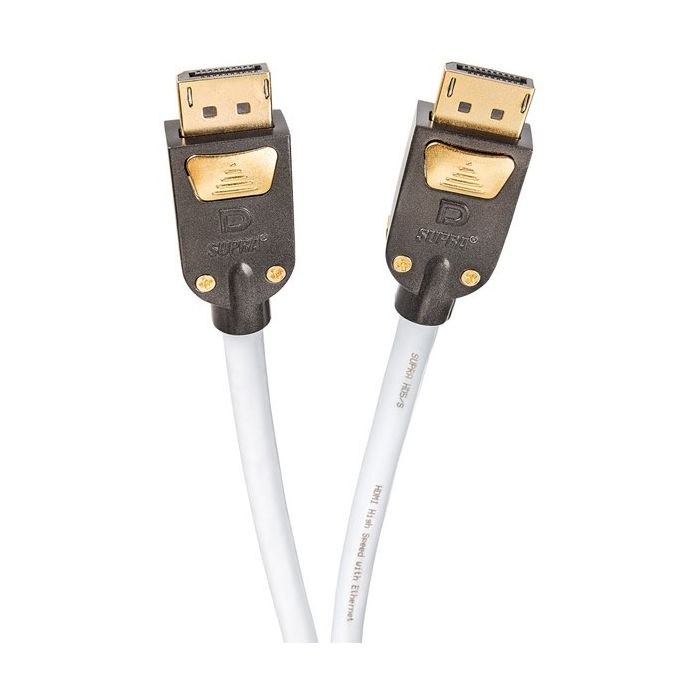

Supra UHD8 High Speed DisplayPort Cable
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | Limited Lifetime |
| Product Type | Other |
Tech Specs
Mechanical Specifications
- Standard: DisplayPort
- Connection configuration: Single-Link
- Signal direction: Bi-directional
- Applications e.g.: Computer graphics, monitors, projectors and TV sets
- Maximal resolution at the maximal available length 5 meter:
- 2560 x 1440 @ 165 fps, 4K Ultra @ 60 fps (4K @ 75 fps up to 3 meter cable)
- Lead area: 5 x TMDS 0.128 / 26 mm2 / AWG
- Lead material: Solid strand 5N oxygen-free copper
- Di-electric (insulation): Low density, air-injected PE foam for minimal capacitance
- Inner shield / coverage: Aluminized PET foil / 100%
- Communication leads: 5 x 0.081 / 28 mm2 / AWG
- Di-electric (communication leads): PE
- Outer shield / coverage: Aluminized PET foil and 5N OFC braid / 100%
- Jacket: Heat and age resistant PVC
- Flame retardancy: No
- Outer dimension: 7 mm
Electrical performance - Supra HD5/S
- Resistance: Rev. Ohm / km
- Capacitance: Rev. pF / m
- Characteristic impedance: 100 Ohm
- Velocity factor: 0.8 x C (speed of light)
Description
Supra High Speed DisplayPort Cable with super slim design and 24K gold plated connectors provide lightning-fast signal transmissions enabling any graphics to perform the best it can, free from blurring, errors or buffering.
This cable supports 8K upto 3m length and 4K for 4m and 5m lengths.
Suitable for Creatives
Due to the interface of the DisplayPort, the cable is able to perform with immense accuracy. It doesn't impair video or images by slowing them down or blurring, making it an ideal solution for film-makers, drawing engineers, film makers, computer gamers and 3D artists.
Accurate Signal Transmission
This cable can be used with monitors, computer graphics, TV sets and projectors. Streaming information can often be met with corrupted signals that blank out, freeze or cannot be read. DisplayPort gets the best from your equipment by providing a a well-shielded, accurate signal transmission path.
Free from Errors and Buffering
When a cable is performing poorly, the signal can make the display unreadable or freeze. To try and repair these issues the circuitry will use buffering and error correction which may cause sync issues such as delays, insufficient blackness, distorted colouration as the hardware is working overtime to try and repair the poor bit-stream.
With the Supra High Speed DisplayPort cable which has been tried and tested by HDMI test centre, you can enjoy your display in full resolution free from any of these problems.
