Sugden A21SE Stage Two Phono Stage
In stock
This item is unavailable to order online. To discuss this item, please call us on 0121 224 7300/7401 or send us an enquiry
Available. To discuss, call 0121 224 7300/7401
Features
| Number of Pre Outs | 1 |
|---|---|
| Number of Inputs | 1 |
| Remote Control | No |
| Brand Color | None |
| Model | RCA |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Facilities:
Inputs - Moving Magnet, Moving Coil and LTVS power in.
Outputs - Fixed line level output.
Gain adjustment - Internal selection for Moving Magnet or Moving Coil.
Load Adjustment - Internal for Moving Coil 100 and 470 Ohms. Moving Magnet fixed load 47k.
Earth terminal - Screw type.
External power supply - Mains powered.
Specifications:
Input sensitivity - Moving Magnet 3.0mV, Moving Coil 0.15mV.
Output - 350mV.
Frequency response - 20Hz to 20kHz +/-1.5dB.
Signal to noise - >64dB.
Gross weight (packed) - 2kg.
Dimensions - Phono amplifier 60mm x 140mm x77mm (HDW) & Power supply 60mm x 140mm x 77mm (HWD).
The A21SE Stage Two has a mains power supply and cannot be operated by the A21SE LTVS.
Description

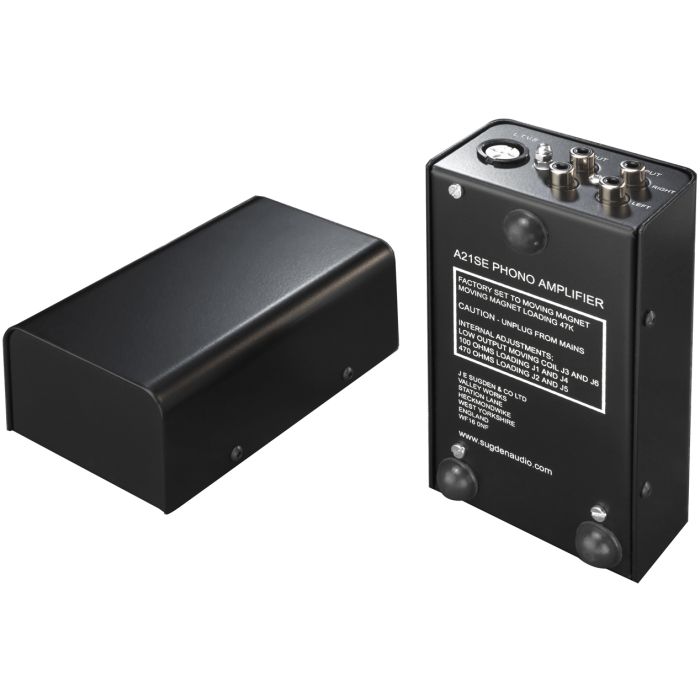

The Sugden A21SE Stage Two phono amplifier is a purist phono stage for both moving magnet and moving coil turntables. Comprimising of a heavy duty design, the Stage Two is made of a separate pre-amp section and power supply section meaning that any unwanted electrical noise from the power supply is minimised.
