Shanling UA7 ESS ES9069 DAC and Tube Headphone Amp
In stock
Features
| Headphone Socket | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Dimensions: 68 × 33.5 × 13.6 mm
- Weight: 35 g
- DAC: 4 x Cirrus Logic CS43131
- Digital filters: 5 selectable options
- Battery capacity: 220 mAh
Hi-Res Audio Support
- PCM: Up to 768 kHz / 32-bit
- DSD: Up to DSD512
Headphone Outputs
- 3.5 mm single-ended
- 4.4 mm balanced
3.5 mm Single-Ended Output
- Output power:
- Low gain: 1 V @ 32 ohm (31 mW)
- High gain: 1.9 V @ 32 ohm (112 mW)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.00025 % @ 32 ohm (A-weighted, 1.8 V high gain)
- Dynamic range: 128 dB @ 32 ohm
- Channel separation: 68 dB @ 32 ohm
- Signal-to-noise ratio: 127 dB @ 32 ohm
- Noise floor: 122 dB @ 32 ohm
- Output impedance: 0.6 ohm
4.4 mm Balanced Output
- Output power:
- Low gain: 1.8 V @ 32 ohm (101 mW)
- High gain: 3.4 V @ 32 ohm (361 mW)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0006 % @ 32 ohm (A-weighted, 2 V high gain)
- Dynamic range: 133 dB @ 32 ohm
- Channel separation: 129 dB @ 32 ohm
- Signal-to-noise ratio: 132 dB @ 32 ohm
- Noise floor: 121 dB @ 32 ohm
- Output impedance: 1.2 ohm
Description

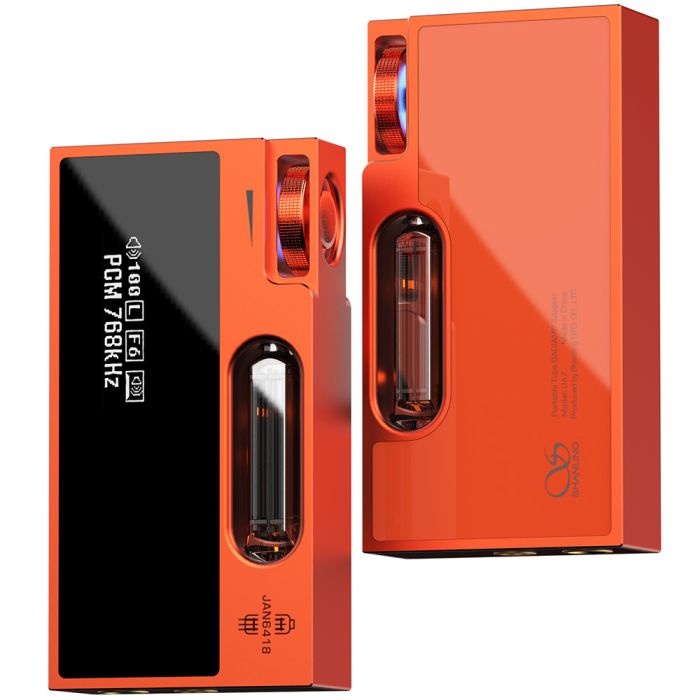

The Shanling UA7 ESS ES9069 DAC and Tube Headphone Amp combines the convenience of a compact USB dongle with the rich, musical presentation of genuine vacuum tube amplification. Featuring dual JAN6418 vacuum tubes, the UA7 delivers the smooth warmth, spaciousness, and natural tonality that tube enthusiasts appreciate, all within an ultra-portable design suitable for everyday listening.
Shanling has carefully engineered the circuit to allow users to switch between tube and transistor output modes, offering two distinct sonic presentations depending on personal preference and musical genre.
The tube mode introduces greater warmth, depth, and analogue-like character, while transistor mode focuses on speed, precision, and dynamic impact. This versatility makes the UA7 ideal for listeners seeking a premium portable DAC and amplifier that can adapt effortlessly to different headphones, music styles, and listening moods.
ESS ES9069 DAC and High-Resolution Audio Support
At the core of the Shanling UA7 ESS ES9069 DAC and Tube Headphone Amp is the advanced ESS ES9069 Hi-Fi DAC, engineered to deliver outstanding detail retrieval, low distortion, and exceptional dynamic performance. Supporting PCM playback up to 768kHz/32-bit and native DSD512 decoding, the UA7 is fully equipped to handle the highest quality audio files available today.
Its impressive 117dB signal-to-noise ratio ensures remarkable clarity and a silent background, allowing subtle details and textures within recordings to emerge naturally. Shanling’s careful tuning combines technical accuracy with musical engagement, creating a listening experience that feels both precise and emotionally immersive.
Whether streaming high-resolution music from a smartphone, laptop, or tablet, the UA7 maintains exceptional fidelity while preserving the character and energy of the original recording across every genre of music.
Powerful OP + BUF Amplifier Architecture
The Shanling UA7 ESS ES9069 DAC and Tube Headphone Amp features a significantly upgraded amplifier stage built around an advanced OP + BUF architecture using dual OPA1662 op-amps and four BUF634A buffer amplifiers.
This powerful design allows the UA7 to deliver up to 577mW of balanced output power at 32 ohms, giving it the ability to drive a wide range of headphones with impressive authority and control. Both 3.5mm single-ended and 4.4mm balanced outputs are included, offering flexibility for everything from highly sensitive in-ear monitors to more demanding full-size audiophile headphones.
The balanced connection delivers greater channel separation, improved dynamics, and enhanced headroom for a more immersive listening experience. Combined with Shanling’s refined tuning and tube implementation, the amplifier section produces a sound that is dynamic, detailed, and effortlessly musical.
Premium Portable Design and Smart Features
Designed for listeners who want high-end audio performance on the move, the Shanling UA7 ESS ES9069 DAC and Tube Headphone Amp combines premium materials, elegant styling, and intuitive functionality in a highly portable form factor.
The refreshed UA series design includes a multifunctional volume wheel for precise control and a bright 0.87-inch OLED display that provides easy access to playback information and system settings directly on the device. Through the Eddict Player companion app, users can further customise sound settings and operating preferences on supported Android and Windows devices.
Despite its compact dimensions, the UA7 offers a luxurious feel and impressive build quality that complements its flagship-level performance. Whether used for mobile listening, desktop audio, gaming, or streaming, the UA7 delivers a sophisticated and highly engaging portable Hi-Fi experience.
