Shanling Onix Zenith XDA20 High End ESS DAC
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
- USB DAC Input: XMOS XU316
- Digital Inputs: COAXIAL / OPTICAL / BNC / AES EBU / I²S / USB
- Analog Outputs: RCA / XLR
- Headphone Output: 6.35mm
- Controls: Touchscreen / Remote Control / Volume Wheel
Supported Hi-Res Specifications
- SPDIF Inputs: PCM: 192kHz / 24bit, DSD: DOP64
- I²S Input: PCM: 768kHz / 32bit, DSD: DSD512
- USB DAC Input: PCM: 768kHz / 32bit, DSD: DSD512
RCA Output
- Output Level: 2.1V
- Frequency Response: 20Hz–40kHz (±0.5dB)
- THD+N: 0.0003% (A-Weighted@2.1Vrms)
- Dynamic Range: 123dB
- Channel Separation: 122dB
- Signal-to-Noise Ratio: 123dB (A-Weighted)
- Noise: 117dB
XLR Output
- Output Level: 4.2V
- Frequency Response: 20Hz–40kHz (±0.5dB)
- THD+N: 0.0003% (A-Weighted@4.2Vrms)
- Dynamic Range: 126dB
- Channel Separation: 127dB
- Signal-to-Noise Ratio: 127dB (A-Weighted)
- Noise: 114dB
- 6.35mm Headphone Output
Output Power:
- Low gain: 101mW@32Ω (1.8Vrms@32Ω)
- High gain: 162mW@32Ω (7.2Vrms@32Ω)
- High Gain: 252mW@300Ω (8.7Vrms@300Ω)
- Frequency Response: 20Hz–40kHz (±0.5dB)
- THD+N: 0.003% (A-Weighted @ 1Vrms)
- Dynamic Range: 121dB
- Channel Separation: 69dB
- Signal-to-Noise Ratio: 120dB (A-Weighted High Gain), 117dB (A-Weighted Low Gain)
- Noise: 112dB (Low Gain)
- Output Impedance: 3.3Ω
- Weight: 5.7kg
- Dimensions: 320mm x 240mm x 62mm
Description
The Shanling Onix Zenith XDA20 High-End ESS DAC is a premium digital-to-analog converter designed to deliver exceptional audio performance for discerning audiophiles. As part of the Zenith series, it aims to provide high-resolution audio playback with precision and clarity. The XDA20 features dual ESS ES9039Pro DAC chips, renowned for their ability to handle high sample rates and bit depths, ensuring accurate and detailed sound reproduction.
This advanced DAC architecture is complemented by a custom-designed analog output stage, utilizing eight OPA1611 op-amps for precise current-to-voltage conversion. The result is a DAC that offers a transparent and dynamic listening experience, making it an ideal choice for high-end audio systems.
Advanced Connectivity Options
The Onix Zenith XDA20 offers a range of connectivity options to suit various audio setups. It includes USB, coaxial, and optical inputs, allowing for versatile connections with different digital sources. The USB input supports high-resolution audio up to 768 kHz/32-bit, ensuring compatibility with the latest audio formats.
Additionally, the XDA20 features balanced XLR and unbalanced RCA outputs, providing flexibility in connecting to amplifiers or active speakers. For those seeking the highest fidelity, the XDA20 supports I²S input, which, when paired with compatible transports like the XST20, delivers native DSD playback and superior sound quality. This comprehensive connectivity ensures that the XDA20 can integrate seamlessly into a wide range of audio systems.
Robust Power Supply for Optimal Performance
To achieve the best audio performance, the Onix Zenith XDA20 is equipped with a high-quality power supply system. It utilizes dual Talema transformers—one rated at 15W and the other at 25W—known for their low noise and stable output. These transformers are paired with premium Vishay capacitors, totaling 3300 µF at 63V, to provide clean and consistent power to the DAC circuitry.
This robust power supply minimizes electrical interference and ensures that the XDA20 operates at its full potential, delivering clear and distortion-free audio. The attention to power quality reflects Shanling's commitment to achieving high-fidelity sound reproduction in their products.
Headphone Amplification Capabilities
Beyond its role as a DAC, the Onix Zenith XDA20 also serves as a high-performance headphone amplifier. It incorporates the TPA6120 chip, delivering up to 1620 mW of power at 32 ohms, making it capable of driving a wide range of headphones, from high-impedance models to more sensitive in-ear monitors.
This integrated headphone amplifier ensures that users can enjoy high-quality audio directly through their headphones without the need for an external amplifier. The XDA20's headphone amplification capabilities make it a versatile component in both desktop and speaker-based audio setups, catering to various listening preferences.
Design and Build Quality

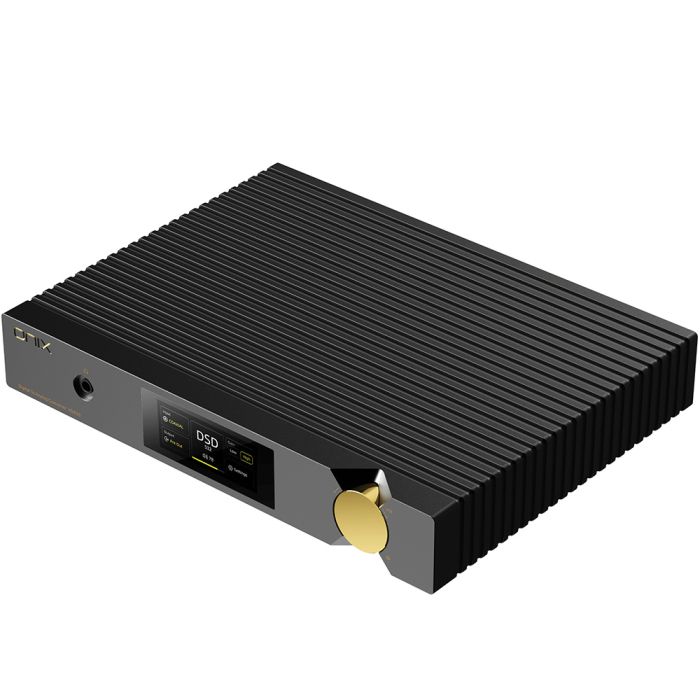

The Onix Zenith XDA20 is housed in a sleek, CNC-machined aluminum chassis that not only provides a premium aesthetic but also contributes to the durability and heat dissipation of the unit. The front panel features a 3.4-inch color touchscreen, offering intuitive control over settings and playback information.
The user interface is designed to be user-friendly, allowing for easy navigation through the DAC's functions. The compact dimensions and solid build quality make the XDA20 a stylish and reliable addition to any high-end audio system. Its design reflects Shanling's dedication to combining form and function in their products, ensuring both performance and visual appeal.
