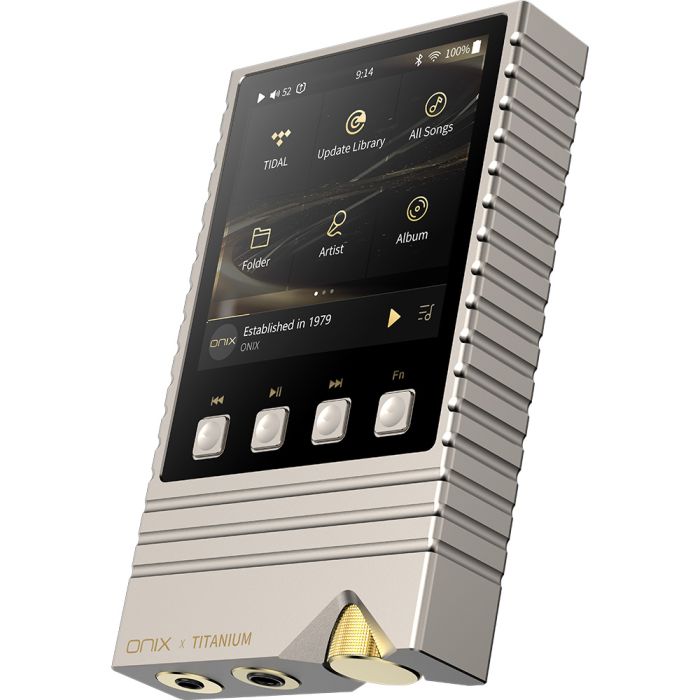

Shanling Onix Overture XM5 Portable Player
In stock
Available - Usually ships within 2-3 days
Features
| Optical Digital Output | No |
|---|---|
| Brand Color | None |
| AUX In | No |
| RCA Output | No |
| Coaxial Digital Output | No |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Dimensions (W x H x D): 115 x 70 x 19 mm
- Weight: 327 g
- System platform: Ingenic X2000
- Operating system: In-house developed
- Display: 3 in OLED touchscreen (720p)
Playback and Control
- Storage: MicroSD card (up to 2 TB)
- Streaming: Tidal (online)
- Controls: Touchscreen, 4 hardware buttons, volume wheel
- Remote control: SyncLink via Eddict Player app (Android & iOS)
Connectivity
- Bluetooth: Two-way Bluetooth 5.2
- Supported codecs: LDAC, aptX HD, aptX, SBC, AAC
- Wi-Fi: 2.4 GHz / 5 GHz, DLNA, AirPlay, Tidal
- USB DAC: XMOS XU316
Hi-Res Audio Support
- PCM: Up to 768 kHz / 32-bit
- DSD: Up to DSD512
Battery
- Capacity: 7000 mAh
- Charging: USB-C
- Battery life:
- Single-ended: up to 14 hours
- Balanced: up to 12 hours
Headphone Outputs
- 3.5 mm single-ended
- 4.4 mm balanced
3.5 mm Single-Ended Output
- Output power:
- Low gain: 0.73 V @ 32 ohm (16 mW)
- High gain: 2.84 V @ 32 ohm (250 mW)
- High gain (300 ohm): 2.84 V @ 300 ohm (26 mW)
- Output impedance: 0.5 ohm
4.4 mm Balanced Output
- Output power:
- Low gain: 1.44 V @ 32 ohm (64 mW)
- High gain: 5.66 V @ 32 ohm (1000 mW)
- High gain (300 ohm): 5.66 V @ 300 ohm (104 mW)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0005 % @ 32 ohm (A-weighted)
- Dynamic range: 127 dB @ 32 ohm
- Channel separation: 110 dB
- Signal-to-noise ratio: 127 dB @ 32 ohm
- Noise floor: 114 dB (low/medium gain)
- Output impedance: 0.8 ohm
Description
The Shanling Onix Tocata XM2 Digital Audio Player with Tubes brings together the distinctive ONIX design philosophy with a highly compact and practical form factor. Drawing inspiration from previous models, it merges the premium aesthetic of the Overture XM5 with the space-saving approach of the Waltz XM10.
The result is a portable music player that delivers unmistakable ONIX quality in a more accessible and travel-friendly size. Crafted from durable aluminium, it offers both strength and refined styling, while remaining lightweight at just 140 grams.
Its 3-inch OLED touchscreen provides clear visuals and intuitive control, supported by physical buttons and a volume wheel for tactile operation. This thoughtful design ensures it feels equally at home in daily portable use or as part of a dedicated listening setup.
Advanced DAC Technology for High-Fidelity Sound
At the core of the Shanling Onix Tocata XM2 Digital Audio Player with Tubes is the cutting-edge Cirrus Logic CS4308P DAC, an advanced 8-channel chipset delivering a fully balanced audio architecture. This represents a significant upgrade over previous generations, offering improved clarity, dynamic range, and overall sonic precision.
Complemented by Shanling’s in-house “Brighton” I/V conversion circuit and dual SGM amplifiers, the player achieves output power of up to 800mW at 32 ohms. This ensures it can drive a wide variety of headphones, from sensitive in-ear monitors to more demanding full-size models.
With low output impedance and exceptional technical performance, the XM2 delivers a clean, detailed, and engaging sound signature that captures the full depth and nuance of high-resolution recordings.
Pure Music System for Focused Listening
The Shanling Onix Tocata XM2 Digital Audio Player with Tubes is built around a streamlined, music-focused operating system powered by the Ingenic X2000 platform.
Designed to eliminate distractions, it provides a fast and responsive interface dedicated entirely to audio playback. Users can enjoy high-resolution music files directly from microSD cards up to 2TB, or stream content via TIDAL, DLNA, and AirPlay.
This pure music approach ensures uninterrupted playback and consistent sound quality without the clutter of unnecessary applications. The system also supports remote control through the Eddict Player app, allowing seamless management from a smartphone. By prioritising simplicity and performance, the XM2 offers a focused listening experience that appeals to dedicated audiophiles.
Versatile Connectivity and Everyday Flexibility
Beyond its core playback capabilities, the Shanling Onix Tocata XM2 Digital Audio Player with Tubes offers a wide range of connectivity options to suit modern listening habits.
Two-way Bluetooth 5.2 enables both wireless streaming from smartphones and connection to Bluetooth headphones or speakers, supporting high-quality codecs such as LDAC and aptX HD. USB functionality allows it to act as both a USB DAC and a digital transport for external devices, expanding its role within a Hi-Fi system.
With both 3.5mm single-ended and 4.4mm balanced headphone outputs, users have flexibility in choosing their preferred listening setup. A 3000mAh battery provides up to 8.5 hours of playback, ensuring reliable performance throughout the day in a compact, feature-rich design.
