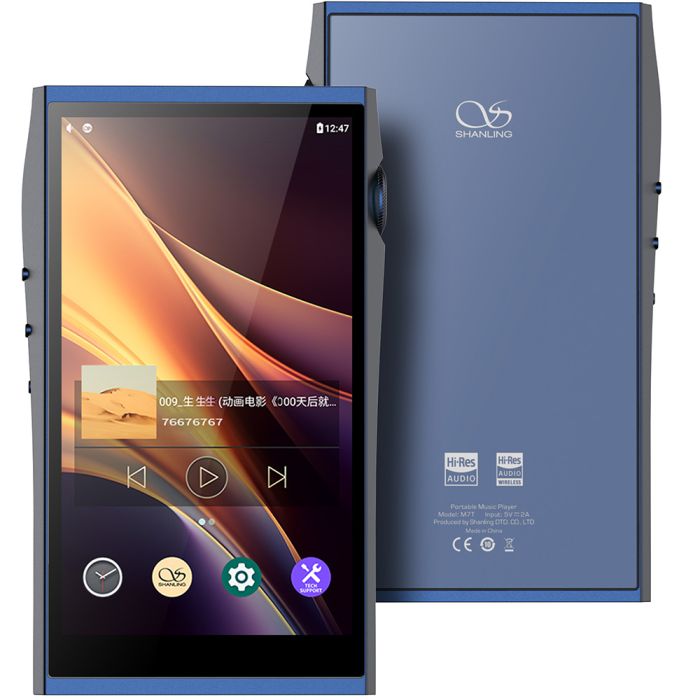

Shanling M7T Portable Android Digital Audio Player
In stock
Features
| Optical Digital Output | No |
|---|---|
| Brand Color | None |
| AUX In | No |
| RCA Output | No |
| Coaxial Digital Output | No |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Dimensions (W x H x D): 129 x 77.5 x 21 mm
- Weight: 319.8 g
- Display: 5.0 in Sharp (1080 x 1920)
- System: Open Android 13
Core Hardware
- CPU: Qualcomm Snapdragon 665
- DAC system: AKM AK4191 + 2 x AK4498EX
- Memory: 6 GB LPDDR4X RAM + 128 GB UFS2.1 ROM
- Storage expansion: MicroSD card slot
Wireless Connectivity
- Bluetooth version: 5.0
- Transmission: LDAC, aptX, SBC, AAC
- Reception: LDAC, SBC
- Wi-Fi: 2.4 GHz / 5 GHz dual band
Battery
- Capacity: 7000 mAh
- Battery life:
- Single-ended: up to 14.5 hours
- Balanced: up to 12.5 hours
- Bluetooth transmission (LDAC Adaptive): up to 66 hours
Hi-Res Audio Support
- Local playback: PCM up to 768 kHz / 32-bit, DSD1024
- USB DAC: PCM up to 384 kHz / 32-bit, DSD256
Supported Audio Formats
- DSD (ISO, DSF, DFF)
- ISO, DXD, APE, FLAC, WAV, AIFF, ALF
- DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3
- Playlists: M3U, M3U8, OPUS
Headphone Outputs
3.5 mm Single-Ended (Transistor Mode)
- Output power:
- Low gain: 25 mW @ 32 ohm
- High gain: 245 mW @ 32 ohm
- THD+N: 0.0007 %
- Frequency response: 20 Hz–40 kHz (-0.2 dB)
- Signal-to-noise ratio: 123 dB
- Channel separation: 75 dB
- Dynamic range: 123 dB
- Noise floor: >116 dB (low gain)
- Output impedance: 0.4 ohm
3.5 mm Single-Ended (Tube Mode)
- Output power:
- Low gain: 19 mW @ 32 ohm
- High gain: 220 mW @ 32 ohm
- THD+N: 0.003 %
- Signal-to-noise ratio: 120 dB
4.4 mm Balanced (Transistor Mode)
- Output power:
- Low gain: 245 mW @ 32 ohm
- High gain: 980 mW @ 32 ohm
- THD+N: 0.0005 %
- Frequency response: 20 Hz–40 kHz (-0.2 dB)
- Signal-to-noise ratio: 127 dB
- Channel separation: 110 dB
- Dynamic range: 127 dB
- Noise floor: >113 dB (low gain)
- Output impedance: 0.8 ohm
4.4 mm Balanced (Tube Mode)
- Output power:
- Low gain: 220 mW @ 32 ohm
- High gain: 910 mW @ 32 ohm
- THD+N: 0.003 %
- Signal-to-noise ratio: 122 dB
Line Outputs
- 3.5 mm line-out: 2.86 Vrms
- 4.4 mm balanced line-out: 5.73 Vrms
Digital Output
- Coaxial S/PDIF:
- Output amplitude: 1 Vpp
- Maximum sampling rate: PCM 192 kHz
Description
The Shanling M3 Plus Digital Audio Player blends elegant design with everyday practicality, offering a refined listening experience in a compact yet premium form. Its precision-milled aluminium chassis provides both durability and a sophisticated look, while the ergonomic shape ensures a comfortable grip during extended use.
The device features a vibrant 4.7-inch Sharp touchscreen with a crisp 1280×720 resolution, delivering smooth navigation and clear visuals for browsing music libraries or streaming services. Slightly larger than ultra-compact players, it strikes an ideal balance between portability and usability.
Whether used on the move or at home, the M3 Plus feels intuitive and responsive, making it easy to access your music and settings without distraction.
Advanced Quad-DAC Audio Architecture
At the core of the Shanling M3 Plus Digital Audio Player is a powerful quad-DAC configuration using four Cirrus Logic CS43198 chips. This sophisticated setup ensures exceptional clarity, detail, and dynamic range across all types of music.
Paired with dual SGM8262 amplifiers, the player delivers impressive output power—up to 800mW through the balanced 4.4mm output and 200mW via the 3.5mm single-ended connection.
This makes it capable of driving a wide range of headphones, from sensitive in-ear monitors to more demanding over-ear models. The result is a rich, immersive sound with excellent separation and control, allowing listeners to experience music exactly as intended, with precision and emotional depth.
Android 13 and Seamless Connectivity
Running on Android 13, the Shanling M3 Plus Digital Audio Player offers a modern and flexible platform for both local playback and streaming.
Shanling’s proprietary AGLO (Android Global Lossless Output) technology ensures bit-perfect audio, preserving the integrity of your music without unwanted resampling. This makes it ideal for high-resolution files as well as streaming services like TIDAL and Spotify.
Connectivity is equally versatile, with two-way Bluetooth 5.0 supporting high-quality codecs such as LDAC, aptX HD, aptX, and SBC. The device also functions as a USB DAC and digital transport, allowing seamless integration with computers and external audio systems. This combination of software and connectivity ensures a smooth and uncompromised listening experience.
Long Battery Life and Everyday Versatility
Designed for extended listening sessions, the Shanling M3 Plus Digital Audio Player features a 3500mAh battery that provides up to 14 hours of playback via the 3.5mm output and around 11 hours using the balanced connection. This ensures reliable performance throughout the day, whether commuting, travelling, or relaxing at home.
Despite its powerful internal components, the player remains highly portable at just 205 grams, making it easy to carry wherever you go. Additional features such as USB DAC mode and digital transport functionality expand its role beyond a simple music player.
Combining strong battery life, versatile functionality, and high-end audio performance, the M3 Plus is a well-rounded solution for modern audiophiles.
