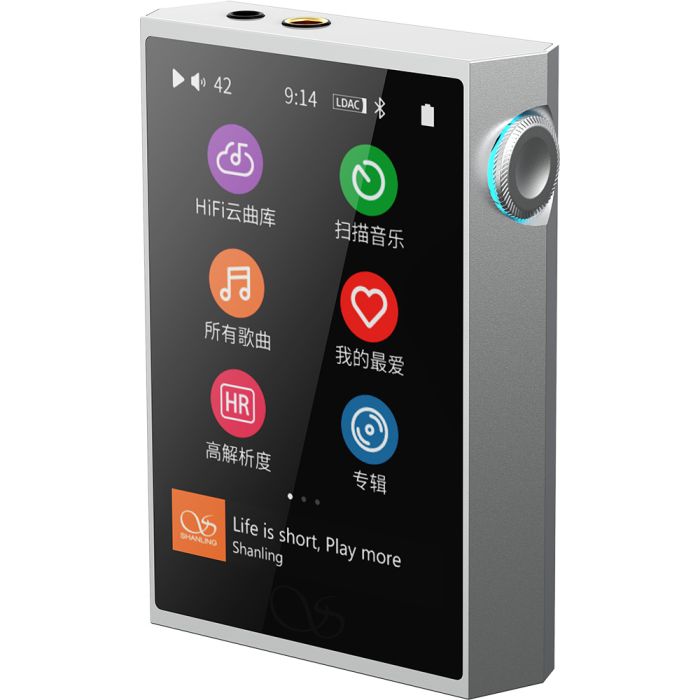

Shanling M1 Plus Digital Audio Player
In stock
Features
| Optical Digital Output | No |
|---|---|
| Brand Color | None |
| AUX In | No |
| RCA Output | No |
| Coaxial Digital Output | No |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Dimensions (W x H x D): 86 x 61 x 17 mm
- Weight: 116 g
- Display: 3.2 in touchscreen (320 x 480)
Audio Hardware
- DAC: ESS ES9069Q
- Storage: MicroSD card support (up to 2 TB)
Battery
- Capacity: 2100 mAh lithium
- Battery life:
- Single-ended: up to 12.5 hours
- Balanced: up to 10 hours
- Bluetooth transmitter: up to 24 hours
Wireless
- Bluetooth: Version 5.2 (two-way)
- Supported codecs: LDAC, aptX HD, aptX, AAC, SBC
Hi-Res Audio Support
- Device playback: Up to 768 kHz / 32-bit, DSD512
- USB DAC: Up to 384 kHz / 32-bit, DSD256
Supported Audio Formats
- DSD (ISO, DSF, DFF; DST not supported)
- ISO, DXD, APE, FLAC, WAV, AIFF, ALIF
- DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3
- Playlists: M3U, M3U8, OPUS
Digital Output
- 3.5 mm coaxial S/PDIF
- Hi-res support: PCM up to 192 kHz / 24-bit
Headphone Outputs
3.5 mm Single-Ended
- Output power:
- Low gain: 47 mW @ 32 ohm (1.25 Vrms)
- High gain: 195 mW @ 32 ohm (2.5 Vrms)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0007 % @ 32 ohm
- Dynamic range: 122 dB
- Channel separation: 74 dB @ 32 ohm
- Signal-to-noise ratio: 122 dB (A-weighted, high gain)
- Noise (high gain): 115 dB
- Output impedance: 0.6 ohm
4.4 mm Balanced
- Output power:
- Low gain: 187 mW @ 32 ohm (2.45 Vrms)
- High gain: 661 mW @ 32 ohm (4.6 Vrms)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0007 % @ 32 ohm
- Dynamic range: 122 dB
- Channel separation: 100 dB @ 32 ohm
- Signal-to-noise ratio: 122 dB (A-weighted, high gain)
- Noise (high gain): 109 dB
- Output impedance: 1.2 ohm
Description
The Shanling M1 Plus Digital Audio Player combines advanced technology with a compact and stylish form factor, making it an ideal companion for everyday listening. Built around the efficient Ingenic X2000 processor and running the latest MTouch operating system, it delivers a smooth and responsive user experience tailored specifically for music playback.
Despite its small size, measuring just 86 x 61 x 17mm and weighing only 116 grams, it features a vibrant 3.2-inch touchscreen that balances usability with portability. The aluminium and glass construction gives the player a premium feel while ensuring durability.
Designed for listeners who want high-quality audio on the go, the M1 Plus proves that powerful performance does not require a large footprint.
High-Resolution Audio with Powerful Output
At the heart of the Shanling M1 Plus Digital Audio Player lies the ESS ES9069Q DAC, a high-performance chip known for delivering detailed, dynamic, and highly accurate sound. This is paired with dual SGM8262 amplifiers, providing up to 660mW of output power at 32 ohms.
This level of power ensures compatibility with a wide range of headphones, from sensitive in-ear monitors to more demanding full-size models. Supporting high-resolution audio formats up to 32-bit/768kHz PCM and DSD512, the player offers exceptional clarity and depth across all genres.
With both 3.5mm single-ended and 4.4mm balanced outputs, users can enjoy flexible connectivity while maintaining optimal audio performance tailored to their preferred listening setup.
Wireless Connectivity and Smart Features
The Shanling M1 Plus Digital Audio Player is equipped with a comprehensive suite of wireless features designed for modern listening habits. Bluetooth 5.2 with bi-directional support allows it to function as both a transmitter and receiver, supporting high-quality codecs such as LDAC, aptX HD, aptX, and AAC.
Wi-Fi connectivity further enhances its versatility, enabling DLNA and AirPlay streaming as well as over-the-air updates. Integration with the Eddict Player app through SyncLink allows seamless control and music management from your smartphone.
Additionally, native TIDAL support provides direct access to streaming content. These features ensure the M1 Plus fits effortlessly into both wireless and network-based audio environments.
Flexible Storage and Everyday Usability
Designed with flexibility in mind, the Shanling M1 Plus Digital Audio Player supports microSD cards up to 2TB, giving users the freedom to carry extensive music libraries wherever they go. It also includes a USB-C connection for charging, data transfer, and USB DAC functionality, making it a versatile addition to any audio setup.
A 3.5mm coaxial SPDIF output further expands its use, allowing connection to external DACs or Hi-Fi systems. The intuitive interface, combined with its lightweight build, ensures it is easy to use throughout the day. Whether used as a portable player, wireless streamer, or digital transport, the M1 Plus delivers a well-rounded and convenient high-resolution audio experience.
