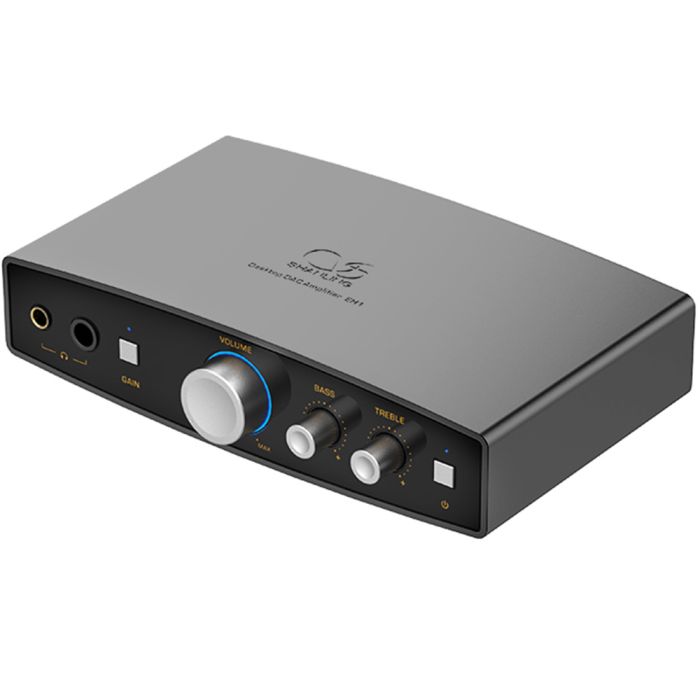

Shanling EH1 Compact Desktop DAC and Headphone Amplifier
In stock
Features
| Headphone Socket | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Dimensions (W x H x D): 156 x 90 x 36.5 mm
- Weight: 392.5 g
- Hi-res audio support: PCM up to 768 kHz / 32-bit, DSD512
- DAC chip: Cirrus Logic CS43198
Inputs and Outputs
- USB DAC input: USB-C
- Digital output: RCA coaxial
- Headphone outputs:
- 6.35 mm single-ended
- 4.4 mm balanced
- Analogue output:
- RCA (line out / pre-out)
Audio Performance
RCA Line Out
- Output level: 2.38 V
- Frequency response: 20 Hz–40 kHz (-1.2 dB)
- THD+N: 0.0007 % (A-weighted, high gain)
- Dynamic range: 123 dB
- Channel separation: 114 dB
- Signal-to-noise ratio: 122 dB (A-weighted, high gain)
- Noise floor: 116 dB
6.35 mm Single-Ended Headphone Output
- Output power:
- Low gain: 63 mW @ 32 ohm
- High gain: 250 mW @ 32 ohm
- High gain (DC power): 399 mW @ 32 ohm
- Frequency response: 20 Hz–40 kHz (-1.5 dB)
- THD+N: 0.007 % (A-weighted @ 1 Vrms, high gain, 32 ohm)
- Dynamic range: 119 dB
- Channel separation: 75 dB
- Signal-to-noise ratio: 119 dB (A-weighted, high gain)
- Noise floor: 110 dB
- Output impedance: 0.4 ohm
4.4 mm Balanced Headphone Output
- Output power:
- Low gain: 250 mW @ 32 ohm
- High gain: 980 mW @ 32 ohm
- High gain (DC power): 1015 mW @ 32 ohm
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.008 % (A-weighted @ 1 Vrms, high gain, 32 ohm)
- Dynamic range: 119 dB
- Channel separation: 99 dB
- Signal-to-noise ratio: 119 dB (A-weighted, high gain)
- Noise floor: 104 dB
- Output impedance: 0.8 ohm
Description
The Shanling EH1 Compact Desktop DAC and Headphone Amplifier combines elegant industrial design with practical desktop functionality, making it an ideal companion for modern audio setups.
As Shanling’s first model to feature a new curved chassis design, the EH1 stands out with its sleek aluminium construction and refined dual-tone finish available in silver or black. Its compact footprint allows it to fit comfortably on any desk without sacrificing usability or performance.
Thoughtfully placed controls, including tactile buttons and smooth adjustment dials, make everyday operation simple and intuitive. Whether used in a home office, gaming setup, or dedicated Hi-Fi system, the EH1 delivers a premium appearance and solid construction that perfectly complements its high-quality audio capabilities.
High-Resolution DAC and Powerful Amplification
At the heart of the Shanling EH1 Compact Desktop DAC and Headphone Amplifier is the highly regarded Cirrus Logic CS43198 DAC, capable of supporting high-resolution audio up to 32-bit/768kHz PCM and DSD512.
Paired with dual SGM8262 headphone amplifiers, the EH1 delivers impressive output power of up to 1015mW at 32 ohms, providing enough drive for demanding planar headphones while still remaining quiet and controlled with sensitive in-ear monitors.
Users can choose between 6.35mm single-ended and 4.4mm balanced headphone outputs, ensuring compatibility with a wide range of headphones. The addition of adjustable treble and bass controls allows listeners to tailor the sound to personal preferences, adding flexibility without compromising the detailed and dynamic presentation.
Flexible Connectivity for Modern Audio Systems
The Shanling EH1 Compact Desktop DAC and Headphone Amplifier is designed to integrate seamlessly into a wide variety of audio setups.
Its USB-C digital input ensures reliable compatibility with computers and other digital sources while delivering smooth, high-resolution playback. RCA outputs can be switched between fixed line-out and variable pre-out modes, allowing the EH1 to function as either a dedicated DAC or a compact preamplifier for power amplifiers and active speakers.
A coaxial SPDIF digital output further expands connectivity, enabling the EH1 to act as a USB-to-SPDIF converter for vintage DACs, receivers, or additional digital equipment. This versatility makes it an adaptable solution for users building anything from a simple headphone setup to a more advanced Hi-Fi system.
Everyday Usability and Broad Compatibility
Designed for convenience as well as performance, the Shanling EH1 Compact Desktop DAC and Headphone Amplifier offers features that enhance everyday usability.
Dual gain levels and low output impedance ensure excellent matching with a broad range of headphones, while accurate volume control allows precise listening adjustments. The device can be powered either through USB-C or via a dedicated 5V DC connection, giving users flexibility depending on their setup.
Support for UAC1.0 mode also enables compatibility with older devices and gaming consoles, making the EH1 suitable for more than just music playback. Combined with Hi-Res Audio certification from the Japan Audio Society, the EH1 provides a reliable and highly capable desktop audio experience in a compact and stylish form.
