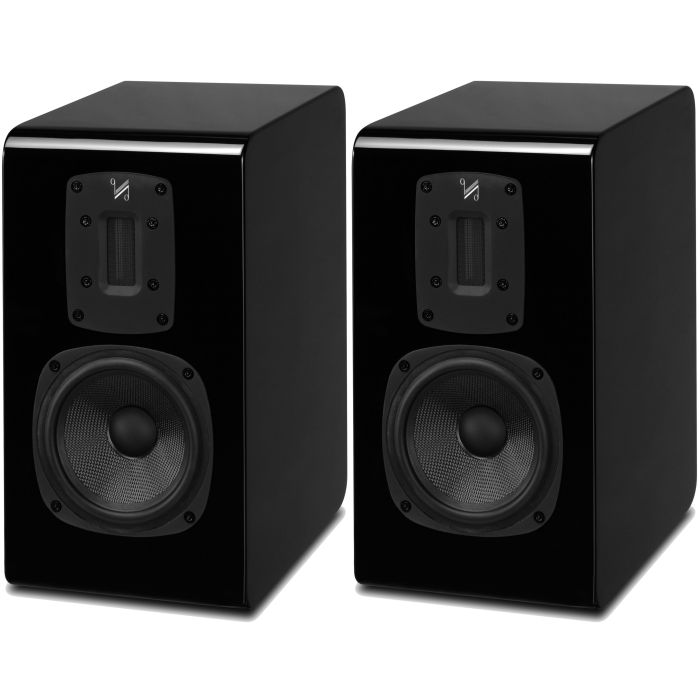

Quad S2 Speakers (Pair)
In stock
Features
| Removable Grilles | No |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
Configuration: Two-way standmount
Tweeter: 12x45mm True Ribbon
Midrange driver: 125mm woven Kevlar
Bass system: Reflex port
Sensitivity: (2.83V @ 1m) 87dB
Recm amp power: 25-100W
Nominal impedance: 8 Ohms
Freq response: (+/-3dB) 48Hz ~ 22kHz
Bass extension: (-6dB) 37Hz
Crossover Freq: 3kHz
Cabinet Volume: 10.7L
Dimensions (HWD): 330 x 180 x 260mm
Description
Quad's new S series loudspeaker range marks 79 years since the company's inception. Each model combines advanced Kevlar-coned bass/midrange drivers with a specially designed ribbon tweeter, supplying effortless sonic expression to capture all the nuances and passion of the original performance.
Quad S Series
The range comprises two standmount models, two floorstanders and a centre speaker for home cinema systems. Just 285mm high, the S2 uses a 125mm bass/mid cone.
Thoroughly Contemporary Ribbon
The new ribbon unit developed for the S Series is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and the sound radiator.
Rear Firing Bass Reflex Ports
This ribbon tweeter is aligned with Quad’s Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the standmount models use carefully tuned, rear-firing reflex ports to augment the bass, the floorstanders are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals.
Classic Quad Design
Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility. Aesthetically, the look is classically Quad yet subtly updated, available in a choice of black or sapele mahogany wood veneers.
