Quad Platina Stream Hi-Fi Streamer
In stock
Features
| Digital Optical Input | No |
|---|---|
| Preamp Output | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
MODEL: - Platina Stream
GENERAL DESCRIPTION: - Network Player
DESIGN PHILOSOPHY AND CORE TECHNOLOGY:
- ES9038Pro 32-bit DAC
- 4.3" (800 x 480 px) Full Colour IPS LCD
- QUAD Platina Stream streaming technology (IEEE 802.11 a/b/g/n/ac)
- Native support for Roon Ready, Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn Radio, Plex
- Gapless Playback
- USB storage: Flash drive, USB hard disk (Single-partition FAT32, exFAT, NTFS only)
- Android/iOS App Control
- Ethernet: 10/100/1000 Base-T, Auto-Negotiation
INPUTS:
- 1 x Network Streaming
- 1 x PC USB (USB B)
- 1 x 12V Trigger
OUTPUTS:
- 1 x RCA
- 1 x XLR
- 1 x 12V Trigger
SUPPORTED FILE FORMATS:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, ALAC, WAV, AIFF
- Compressed (Lossy) Audio: MP3
SAMPLING FREQUENCY:
- PCM: 44.1kHz – 768kHz (Supports 705.6kHz / 768kHz fixed-point via streaming)
- DSD: DSD64, DSD128, DSD256, DSD512 (Native)
DIGITAL SECTION:
- Digital Output Intensity: 500 ± 50mVpp
- Output Impedance: 75Ω
- Frequency Response: -0.01dB (20Hz – 20kHz, ref. 1kHz)
- Max. Sampling Frequency: 192kHz / 24bit
- Digital Output: 1 x Coaxial, 1 x Optical
DAC SECTION:
- Variable Output Voltage: 0 – 2.05Vrms
- DAC: ES9038Pro
- Frequency Response: ±0.5dB (20Hz – 20kHz, ref. 1kHz)
- Total Harmonic Distortion: <0.001% (1kHz @ 2.05Vrms)
- Max. Sampling Frequency: 768kHz / 32bit
- Signal-to-Noise Ratio (A-weighted): >116dB (RCA), >120dB (XLR)
- Output Impedance: 120Ω
GENERAL:
- Standby Power Consumption: <0.5W
- Net Weight: 11.8kg
- Gross Weight: 13.6kg
- Dimensions (W x H x D): 445 x 134.5 x 348mm
- Carton Size (W x H x D): 500 x 225 x 450mm
- Finish: Black / Silver
- Power Requirements: 220–240V ~ 50/60Hz, 100–120V ~ 50/60Hz
- Standard Accessories: Power Cord, Remote Control, User Manual
Description

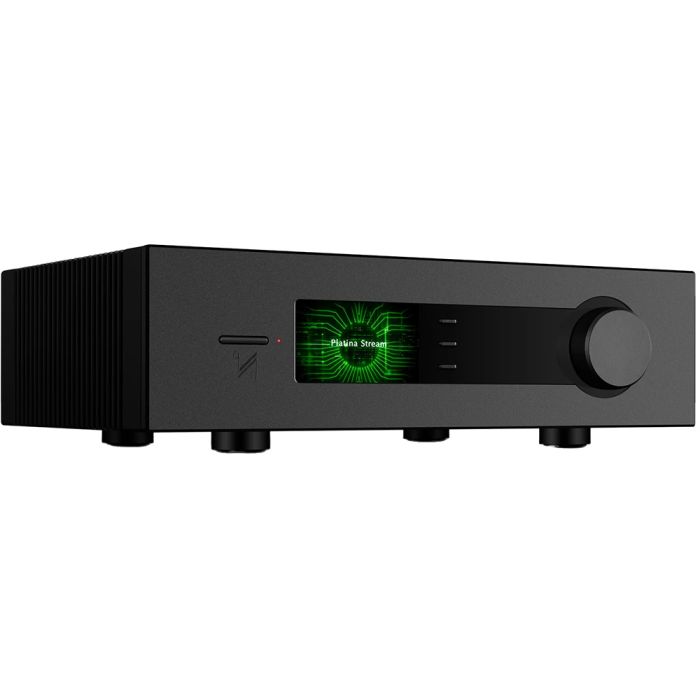

The Quad Platina Stream Hi-Fi Streamer embodies the spirit of the Platina series, blending timeless British engineering with state-of-the-art digital streaming technology. Designed for the modern audiophile, it serves as both a centrepiece and a high-performance streaming hub.
The sculpted aluminium chassis, side-mounted heat sinks, and anti-resonance feet exude durability and refinement, while the crisp 4.3-inch IPS display and precision-machined controls enhance usability. Every design element has been crafted for aesthetic harmony and acoustic performance.
The result is a network streamer that looks as impressive as it sounds, delivering a refined and authoritative musical experience that perfectly reflects Quad’s legacy of innovation and excellence in sound reproduction.
Performance and Connectivity
Built for absolute reliability and flexibility, the Quad Platina Stream Hi-Fi Streamer provides a seamless gateway to the world of high-resolution digital music. Whether connected via Gigabit Ethernet or dual-band Wi-Fi, it ensures stable, uninterrupted playback across a variety of file types and formats.
Compatible with Spotify Connect, Qobuz Connect, Tidal Connect, and AirPlay 2, it integrates effortlessly into any digital ecosystem. The streamer is also Roon Ready, enabling flawless operation as a certified endpoint within multi-room or reference-grade systems.
Each connection has been carefully optimised for fidelity, allowing listeners to enjoy bit-perfect playback, expansive dynamics, and effortless clarity, regardless of whether the source is streamed, stored locally, or accessed via USB.
Intelligent Control and Application
The Quad Platina Stream Hi-Fi Streamer is controlled through the dedicated Platina app, available for iOS and Android. Designed with both elegance and practicality in mind, the app transforms any smart device into a powerful, intuitive control centre. Its refined interface allows users to browse extensive music libraries, manage playlists, and access streaming services with ease.
Intelligent indexing automatically compiles tracks from network drives, USB devices, and online sources into a unified library for convenient browsing. Searches are lightning fast and can be filtered by artist, genre, composer, or label. Playlists can be created, saved, and edited on the fly, while the app’s high-resolution artwork display ensures an engaging and informative user experience.
Digital and Analogue Precision
At the heart of the Quad Platina Stream Hi-Fi Streamer lies the ESS Sabre ES9038PRO DAC, supported by dual master clocks for ultra-low jitter and exceptional linearity. This advanced digital-to-analogue conversion stage supports PCM up to 768 kHz and native DSD512 playback. A Quad Arm Cortex-A53 multi-core processor ensures fast data handling and responsive control, while the DAC delivers breathtaking levels of resolution and realism.
Balanced XLR and RCA analogue outputs provide pristine signal delivery to amplifiers or powered speakers, while optical and coaxial digital outputs maintain flexibility for integration with other high-end audio components. This combination of digital precision and analogue warmth makes the Platina Stream a true reference in streaming performance.
Refinement and Craftsmanship
Every aspect of the Quad Platina Stream Hi-Fi Streamer has been engineered with purpose and artistry. From its robust aluminium housing and gold-plated connectors to its vibrant IPS display and tactile remote control, each detail reinforces Quad’s commitment to excellence. The on-screen interface supports multiple display modes, including artwork view, data-rich layouts, and classic VU meters, all customisable to suit user preference.
The entire system reflects thousands of hours of development dedicated to achieving musical authenticity and intuitive operation. The Platina Stream stands as the ultimate expression of Quad’s design philosophy—marrying precision engineering, advanced streaming capability, and timeless aesthetics into a single, extraordinary component for the modern listener.
Key Features:
- Spotify, Tidal & Qobuz ‘Connect’
- Roon Ready
- Plex integration
- Dedicated ‘Quad Platina’ streaming application app for additional features and WiFi setup.
- Available on iOS and Android
- AirPlay 2 connectivity
- ESS Sabre ES9038Pro DAC chipset
- USB HDD via the connection on the rear of the unit
- Digital upsampling and filter options
