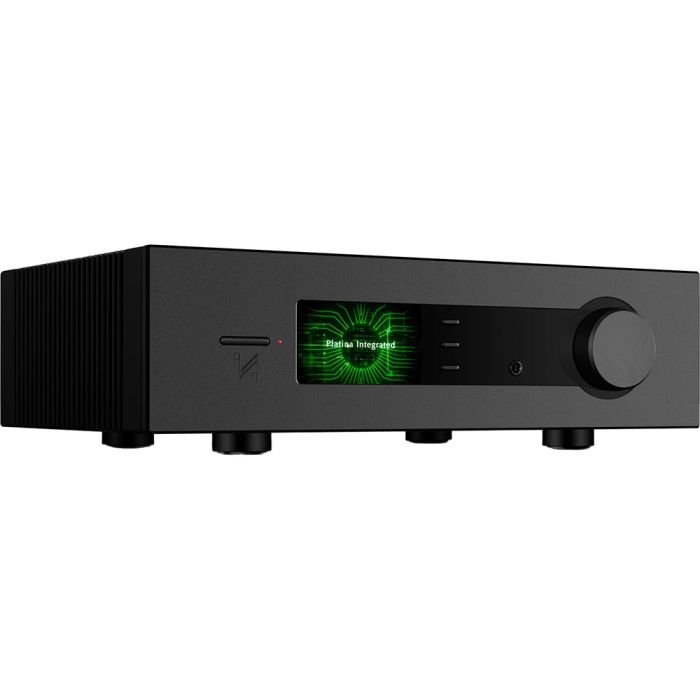

Quad Platina Integrated Amplifier
In stock
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
MODEL: - Platina Integrated
GENERAL DESCRIPTION: - Integrated Amplifier
DESIGN PHILOSOPHY AND CORE TECHNOLOGY:
- 2 x 200W (8Ω) / 2 x 300W (4Ω)
- Class AB Dual Mono Design
- ES9038Pro 32-bit DAC
- Roon Tested
- Highly Linear Analogue Volume Control
- 4.3" (109mm) 800 x 480 Full View IPS LCD
- Dedicated Low Noise MM/MC Phono Stage with Selectable Gain (46 / 52 / 60dB)
- Dedicated Current-Feedback Headphone Amplifier
- Support USB Upgrade
INPUTS:
- 2 x Analogue (RCA)
- 1 x Balanced (XLR)
- 1 x Phono (MM / MC)
- 2 x SPDIF (Coaxial)
- 2 x SPDIF (Optical)
- 1 x PC USB (Type-C)
- 1 x HDMI ARC
- 1 x 12V Trigger
OUTPUTS:
- 1 x RCA (Pair)
- 1 x XLR (Pair)
- 1 x Stereo Speaker Binding Post (Pair)
- 1 x Optical
- 1 x Coaxial
- 1 x 12V Trigger
SAMPLING FREQUENCY:
- Optical / Coaxial: 44.1kHz – 192kHz
- PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
PREAMPLIFIER SECTION:
- Gain: 0dB (Line) / +46 / +52 / +60dB Adjustable (Phono)
- Input Sensitivity: 1.2Vrms (Line, Volume = 0dB)
- 2.4Vrms (XLR, Volume = 0dB)
- 5mV (Phono MM, Gain = 46dB, Volume = 0dB)
- 1mV (Phono MC, Gain = 60dB, Volume = 0dB)
- Input Impedance: 50kΩ (Line); 50kΩ // 100pF (Phono MM); 360Ω // 200pF (Phono MC)
- THD: <0.0004% (1kHz @ 2V, Volume = 0dB)
- Frequency Response: 20Hz – 20kHz (±0.1dB)
- Output Impedance: 120Ω
- Signal-to-Noise Ratio (A-Weighted): >110dB (Line & XLR) / >78dB (Phono MM) / >70dB (Phono MC)
DAC SECTION:
- D/A Converter: ES9038Pro
- THD: <0.001% (1kHz @ 0dBFS)
- Output Level: 2.0Vrms (0dBFS, 1kHz)
- Max Sampling Frequency: Optical / Coaxial: 192kHz; PC USB: PCM 768kHz, DSD512
- Signal-to-Noise Ratio (A-Weighted): >116dB
POWER AMPLIFIER SECTION:
- Gain: +30dB
- Rated Power Output: 2 x 200W (8Ω, THD <1%) / 2 x 310W (4Ω, THD <1%)
- Frequency Response: 20Hz – 20kHz (±0.3dB)
- THD: <0.0008% (1kHz @ 100W / 8Ω)
- Input Sensitivity: 1.2Vrms
- Signal-to-Noise Ratio: >112dB (A-Weighted)
- Max Output Current: 20A
HEADPHONE AMPLIFIER:
- THD: <0.01% (1kHz, 50mW)
- Output Impedance: 2.35Ω
- Load Impedance: 20 – 600Ω
GENERAL:
- Standby Power Consumption: <0.5W
- Net Weight: 17.1kg
- Gross Weight: 19.3kg
- Dimensions (W x H x D): 445 x 134.5 x 348mm
- Carton Size (W x H x D): 500 x 225 x 450mm
- Finish: Black / Silver
- Power Requirements: 220–240V ~ 50/60Hz / 100–120V ~ 50/60Hz
- Standard Accessories: Power Cord, Remote Control, User Manual
Description
The Quad Platina Integrated Amplifier represents the pinnacle of Quad’s design and engineering, combining timeless aesthetics with cutting-edge performance. As the flagship model of the Platina series, it embodies the perfect balance between classic heritage and modern technology. Crafted with precision, the amplifier features a striking machined aluminium chassis, tactile controls, and a crisp full-colour TFT display.
Every detail reflects careful thought, from the gold-plated connectors to the symmetrical rear panel layout. The Platina Integrated Amplifier delivers reference-grade sound with commanding power, elegance, and control, capturing the spirit of Quad’s legacy while establishing a bold new standard in high-fidelity performance for the modern audiophile.
Power by Design
At the heart of the Quad Platina Integrated Amplifier lies an exceptionally powerful Class AB dual mono design, providing 200 watts per channel into 8 ohms and 300 watts into 4 ohms. This configuration ensures precise channel separation and remarkable dynamic range. The amplifier is driven by a custom 630VA toroidal transformer with 44,000μF of filter capacitance per channel, ensuring ample current reserves for demanding speakers.
Developed over five years, every component was chosen by ear to uphold the signature Quad sound. Bespoke Wurth Elektronik capacitors and cascaded voltage regulators in both analogue and digital sections contribute to an astonishingly clean, authoritative, and detailed sonic presentation that effortlessly handles every musical genre.
Engineering Excellence
Quad’s design philosophy is evident throughout the Platina Integrated Amplifier, with meticulous attention paid to layout, component selection, and circuit topology. Surface-mounted device integration allows for shorter signal paths, reducing parasitic resistance and noise. This precision engineering results in lower impedance, higher thermal stability, and exceptional reliability.
The amplifier maintains a stable operating environment under all loads, preserving musicality even at high volume levels. Optimised internal geometry ensures perfect electrical symmetry and minimal electromagnetic interference, achieving unparalleled clarity and soundstage accuracy. The result is an amplifier that is transparent yet full-bodied, equally suited to digital streaming, vinyl playback, or immersive cinematic experiences.
Digital Precision
The digital core of the Quad Platina Integrated Amplifier is defined by its ES9038 Pro DAC, one of the most advanced digital-to-analogue converters available. Supporting PCM signals up to 768 kHz and DSD512, the DAC section ensures pristine sound across all formats. Two dedicated master clocks eliminate jitter, delivering exceptional transparency and imaging.
The amplifier also allows for upsampling lower-resolution files to 352.8 kHz or 384 kHz for improved smoothness and detail retrieval. Listeners can choose from five DAC filter settings to tailor the sound to their taste. As a Roon Tested device, the Platina Integrated Amplifier guarantees seamless integration with Roon’s ecosystem, offering audiophiles a highly stable and intuitive digital listening experience.
Usability and Interface
Despite its technical sophistication, the Quad Platina Integrated Amplifier offers effortless operation through its beautifully designed graphical user interface. The full-colour TFT display and precision-machined controls make setup and adjustment intuitive. The system grants easy access to settings, inputs, and parameters without requiring complicated menus or commands.
Connectivity options include balanced XLR, RCA, MM/MC phono inputs, optical, coaxial, and USB-C connections, accommodating a wide range of digital and analogue sources. The inclusion of HDMI ARC ensures direct integration with home entertainment systems, while the supplied remote control provides full functionality across all components of the Platina series. Every interaction is designed to feel smooth, natural, and refined.
Analogue and Output Performance
In keeping with Quad’s commitment to analogue excellence, the Platina Integrated Amplifier includes a high-performance MM/MC phono stage with selectable gain and impedance options. Using a precision JFET design, the phono stage offers exceptionally low noise and accurate signal handling, ideal for extracting every nuance from vinyl records. The amplifier also provides balanced and unbalanced preamp outputs, along with robust speaker terminals for system expansion.
The current-feedback headphone amplifier delivers ultra-fast transient response, low distortion, and breathtaking detail across the frequency spectrum. Whether driving demanding planar magnetic headphones or traditional dynamic designs, the Platina Integrated Amplifier ensures a natural, dynamic, and highly engaging listening experience.
A Testament to Craftsmanship
The Quad Platina Integrated Amplifier is more than an evolution; it is a statement of intent. Representing thousands of hours of research, design, and refinement, it is the most advanced amplifier ever produced by Quad. Each unit is built to exacting standards, combining engineering precision with musical artistry.
With its commanding power, quiet authority, and sonic grace, the Platina Integrated Amplifier stands as a benchmark in modern audio design. It embodies everything that defines Quad—heritage, innovation, and an unrelenting pursuit of musical truth—ensuring it will be treasured by audiophiles for years to come.
Key Features
- 2x 200W into 8 ohms – the power of a champion heavyweight with the agility of a world-beating featherweight
- Dual-mono circuit topology featuring many custom components
- Six digital inputs including USB-C and HDMI ARC
- Four analogue inputs including balanced XLR and phono
- Ultra-resolution digital audio – 32-bit/768kHz PCM and native DSD512
- Digital upsampling and filter options
- Ultra-low-noise MM/MC phono stage with adjustable gain
- Built for a premium experience, with a 4.3in colour display and feature-rich user interface
- Effortless musicality – the perfect embodiment of ‘the closest approach to the original sound’
