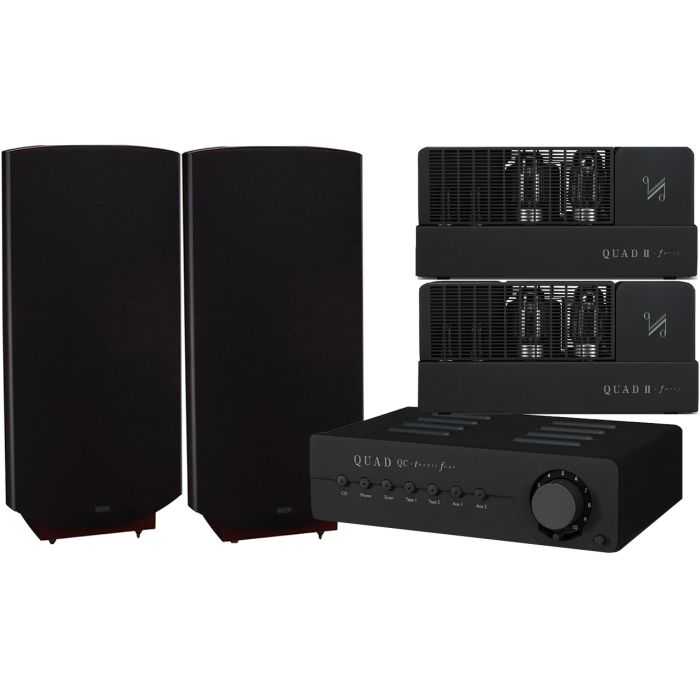

Quad ESL 2912 X with Quad II Forty Monobloks and QC24 Package
In stock
Features
| Warranty The length of time your product is protected by warranty | 1 Year (3 Years on registration) |
|---|---|
| Brand Color | None |
Tech Specs
ESL 2912
Floor Standing Dipole With 3° Fixed Tilt
Multiple electrostatic drive membranes
Time Delay: Progressive Concentric Rings
Maximum Output: 2 N/m2 at 2m On Axis
Sensitivity: (86dB/2.83V rms Equivalent)
Nominal Impedance: 8 Ohms
Impedance Variation: 4 - 20 Ohms
Max Input: Cont Input Voltage (rms): 10V
Frequency Response: 32Hz - 21kHz (-6dB)
Distort (100dB): (1k/100/50 Hz) <0.15/0.5/1%
AC Input: 220 - 240V, 110 -120V, 100V
Power Consumption: 6W
Dimensions (HWD): 1470 x 690 x 380mm
Net Weight: 44kg
Forty Mono Valve Power
- Power Output 40WRMS
- THD @ 700Hz 0.3% at 40W
- THD @ 700Hz 0.03% at 1W
- Residual hum/noise: >-80dB
- Freq Response 10-30k Hz (0/-0.5dB)
- Max Power Consumption: 180W
- Damping Factor 20 @ 700Hz (8O)
- Loudspeaker taps 4 Ohm, 8 Ohm
- Input Valves 2 x 6SH7
- Output Valves 2 x KT88
- Rectifier Valve 1 x 5u4G
- Sensitivity 1VRMS
- Dimensions (HWD): 185 x 200 x 390mm
QC24
Inputs (line level) 5
Inputs ( tape loops) 2
Valve complement 1 x 6111 twin triode
Total Harmonic Distortion: @1 VRMS 0.2%
Freq Response: 5Hz-50kHz (+0/-0.5dB)
Hum and Noise -80dB
Line stage gain 15dB
Recommended minimum load 50k ohms
Power Consumption: 15VA maximum
Dimensions (mm): 90H x 220W x 300D
Description
Remarkable Quad hifi package, ideal for vinyl lovers, incorporating a pair of ESL-2912 X electrostatic speakers powered by a pair of Forty Mono Valve Power Amplifiers and QC24 Valve pre amp for superior performance.
ESL 2912 X
Quad ESL-2912 X electrostatic loudspeakers are Quad's flagship model and replace the ESL-2905, the latest in a long line of well respected speakers that Quad are best known for, back to the original ESL-57 that made its debut back in 1956. Improvements over their predecessor include a better power supply, new acoustically transparent grille and wood finish on the top and sides of the bases.
Forty Valve
Quad II Forty mono monoblock power amplifiers shares the sophisticated elegance of the original Quad II from the 1950's, but its been updated, to be more refined, with an excellent build quality and finish. Quad II-forty has larger output valves, KT88s and sturdy power supply utilising a 5U4G rectifier valve.
QC24
Quad QC-24 valve phono stage is a dedicated solution for the vinyl enthusiast designed by valve supremo Tim DeParavicini. Add an entirely new dimension to your vinyl recordings. Quad QC24 has a rear MM/MC toggle switch, choice of input sensitivities and direct full or variable level output for directly connecting a power amplifier.
More Info
For more info on the electrostatic speakers, visit our main ESL 2912 X page.
For more on the monoblocks, visit our main Forty Mono Valve page.
For more info on the valve pre-amplifier, visit our main QC24 page.
