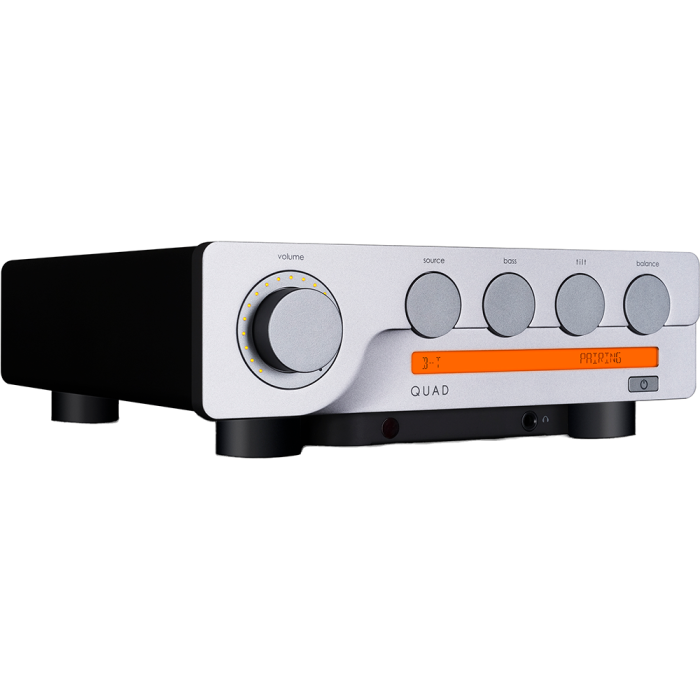

Quad 3 Integrated Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
QUAD 3 – INPUTS
- 1x USB Type B (32-bit/768kHz PCM; DSD512)
- 1x HDMI ARC (HDMI 2.1/eARC compliant)
- 2x S/PDIF (1x optical; 1x coaxial)
- 3x stereo RCA analogue (2x line-level; 1x MM phono)
- 1x USB Type A for firmware updates
- 1x 12V trigger
- Bluetooth 5.1
QUAD 3 – OUTPUTS
- Gold-pated speaker binding posts
- 1x 6.35mm headphone out
- 1x stereo RCA preamp out
- 1x 12V trigger
QUAD 3 – OTHER SELECTED SPECIFICATIONS
- User adjustment – analogue Tilt and bass tone controls (defeatable); stereo balance control
- User adjustment – digital Optional upsampling to 352.8/384kHz; five digital filter settings
- Power amplifier type Class AB with Complimentary Feedback design
- Power output 2x 65W (8Ω, THD<1%); 2x 100W (4Ω, THD<1%)
- Power amplifier distortion (THD) <0.003% (1kHz @ 30W/8Ω)
- Maximum current delivery 2x 10A
- Dimensions (WxHxD) 300x101x332mm
Description
The Quad 3 Integrated Amplifier is a bold new chapter in Quad’s storied legacy, fusing classic British audio aesthetics with modern innovation. Drawing visual inspiration from the iconic Quad 22 and 33 preamps, this new amplifier pays tribute to the brand’s rich history while embodying the design language and functionality of contemporary high-end audio gear.
It follows the success of the reimagined 33/303 pre/power amp, but unlike that homage, the Quad 3 is a completely new design. Crafted under the direction of acclaimed designer David McNeill, the unit features an industrial design that captures the vintage charm of the originals, such as the flush-mounted rotary controls and two-tone fascia, updated with a refined finish that befits modern audiophile expectations.
Timeless Design Meets Advanced Control
While the Quad 3 may appear retro at first glance, its control interface is a sophisticated blend of analogue feel and digital precision. The familiar row of rotary knobs now functions as digital encoders, managing source selection, volume, balance, and tone via the distinctive “tilt” control originally devised by Quad founder Peter Walker.
This tilt function subtly adjusts the tonal balance across the frequency spectrum around a central 650Hz axis, allowing for either a warmer or cooler sound signature without distorting the musical integrity. Combined with an independent bass control, these tools enable fine-grained tuning to suit room acoustics, content type, or listener preference, all executed within the analogue domain.
A backlit LCD display adds a charming modern-retro twist, echoing the aesthetic details of the classic 33 while remaining entirely functional.
A Hub for Modern Sources and Classic Formats
Versatility lies at the heart of the Quad 3 Integrated Amplifier, making it a natural centrepiece for any contemporary audio system. It includes HDMI ARC for seamless TV integration, USB Type B for high-resolution PC audio, coaxial and optical S/PDIF inputs, and advanced Bluetooth (aptX HD, Bluetooth 5.1) for wireless convenience.
Vinyl lovers are also well served, with a high-quality FET-based phono stage for MM cartridges delivering exceptional clarity and detail. Two additional RCA line-level inputs provide connectivity for legacy devices. The headphone section is equally impressive, offering a dedicated current-feedback amplifier with a high slew rate for dynamic, detailed performance. All these features are smartly housed in a compact, 30cm-wide chassis, delivering elite performance without occupying unnecessary space.
A High-Performance Core with Digital Precision
Inside the Quad 3 lies a meticulously engineered amplification stage built for both finesse and power. The DAC section is anchored by the ES9038Q2M chip from ESS’s 32-bit Sabre series, enhanced with proprietary clock management and a Class A post-DAC active filter for superior audio resolution.
The amp supports high-resolution formats including PCM up to 32-bit/768kHz and DSD512, with full MQA decoding and Roon Tested certification, ensuring audiophiles can extract maximum detail from every digital source. On the analogue side, the discrete Class AB output stage with CFB topology provides clean, stable output, backed by a robust 235VA toroidal transformer.
Independent low-noise power supplies isolate critical components, contributing to a rich, expressive sound signature. With its combination of thoughtful design and uncompromising engineering, the Quad 3 Integrated Amplifier is a true modern classic.
Key Features:
- Integrated stereo amp for high-performance, multi-source audio systems
- Inspired by classic 20th century QUAD design, elevated by new technology
- Signature QUAD features include Tilt tone control
- Digital inputs include USB, HDMI ARC and Bluetooth
- Ultra-resolution digital audio – 32-bit/768kHz PCM and native DSD512
- Class AB power amp stage with Complimentary Feedback design
- Delivers 65W per channel into 8 ohms
- High-quality phono stage and headphone amp
- Compact 30cm-wide footprint
