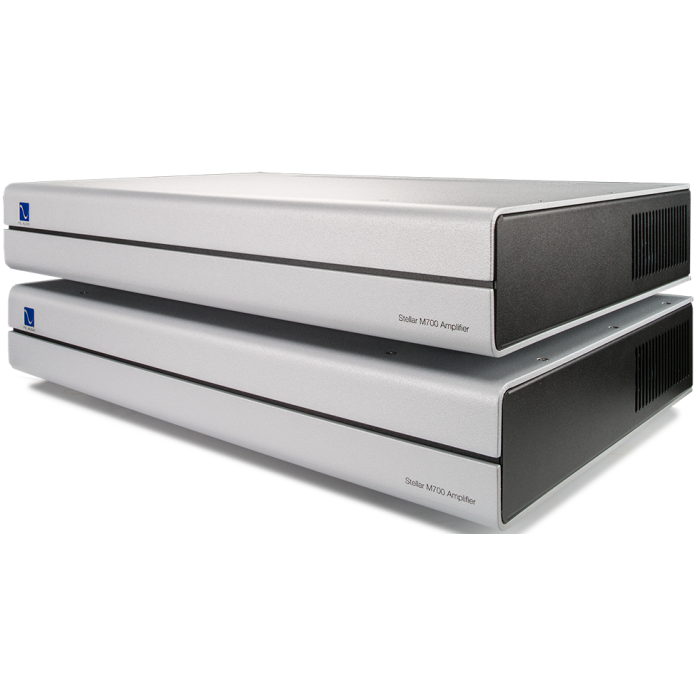

PS Audio Stellar M700 Mono Power Amplifier (Pair)
In stock
Features
| XLR Inputs | No |
|---|---|
| Remote Control | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Unit Weight: 13 lbs [5.9 kg] (each)
- Unit Dimensions: 17”W x 3”H x 12”D (13"D w/connectors)
- 17”W x 6”H x 12”D (Stacked)
- Shipping Weight: 16.5 lbs [7.5 kg] (each)
- Shipping Dimensions: 22”W x 8”H x 17”D (each)
- Audio Inputs: RCA (Unbalanced)
- XLR (Balanced)
- Speaker Outputs: Copper base nickel plated binding posts (2 pair)
- DC Trigger Input: 3.5mm 5-15VDC
- Signal
- Gain: 30.5dB +/-0.5dB
- Sensitivity for rated output power: 1.6V
- Noise: 1kHz@700 Watts < -105dB
- Input impedance: Unbalanced 50KΩ
- Balanced 100KΩ
- Output Impedance: 50Hz, 2.8VRMS <0.007Ω
- Damping factor: 50Hz. 2.8VRMS
- 8Ω >1100
- 4Ω >550
- Frequency Response: 2.8VRMS into 4Ω
- 10Hz – 20KHz +/- 0.5dB
- 10Hz – 50KHz +0.1/-3.0dB
- THD&IM:
- 1KHz, 1W/4Ω <0.02%
- 10-20KHz, 1W/4Ω <0.02%
- 10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
- 1KHz, 87.5W/4Ω < 0.015%
- Output Power:
- 120vac mains, 1kHz, 1% THD
- 8Ω: 350W minimum
- 4Ω: 700W minimum
- 2Ω: Stable for musical transients
Description
PS Audio Stellar M700 Mono Power Amplifier has 700W of analog cell power and offers complete authority over your speakers. The M700 combines a Class D output stage with the Class A Analog Cell input stage for a Stellar performance.
Great Power
The Stellar M700 mono amp is able to drive some of the most demanding loudspeakers to extremely high levels with its capacity to deliver 350W into 8 ohms and 700W into 4 ohms. When used with your hi-fi set-up, a pair of the M700 mono amps will achieve exceptional power and great headroom to effortlessly render your favourite music pieces.
Best Of Both Worlds
PS Audio’s Stellar M700 is a hybrid amp designed by audio expert, Darren Myers. It combines the best of both worlds with an ultra-linear, high current Class D output stage and a zero feedback, low impedance Class A MOSFET based Analog Cell for the input stage.
Analog Cell
The Analog Cell achieves an immersive three-dimensional soundstage that would make you believe you were in a live concert venue. It makes sure that the richest details are preserved and that subtle details are handled delicately without compromising the quality of dynamics from your speakers.
Class D Output
Combined with the sonic advantages of the Analog cell, the Class D output stage holds great authority and control over your loudspeakers, delivering superb power and performance.
