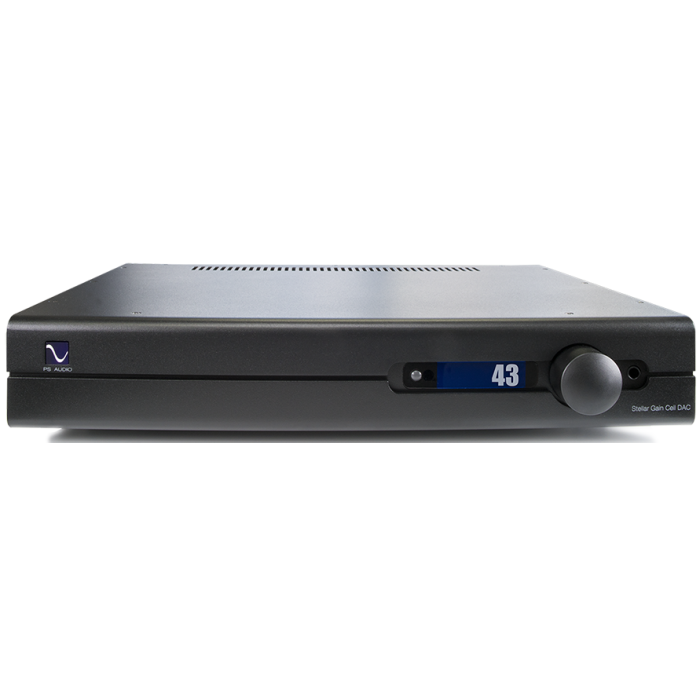

PS Audio Stellar Gain Cell DAC and Pre Amplifier-Nearly New
In stock
Hurry, only 1 left in stock.
Features
| Headphone Socket | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Input Power: Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
- Power Consumption: 20W
- Mains Power Input: IEC C14
- Fuses: 100V T250V-2.0AH (2A Slow Blow) // 120V T250V-1.6AH (1.6A Slow Blow) // 230V T250V-1.0AH (1.0A Slow Blow)
- Analogue inputs: RCA x3 stereo pair, XLR x 1 stereo pair
- Digital audio inputs: I2S x1 PCM (384KHz max) DSD64 DSD128, Coax x2 PCM (192KHz max), Optical x1 PCM (96KHz max), USB 1x PCM (384KHz max) DSD64 (DoP) DSD128 (DoP)
- Analog Audio Outputs: RCA x1 stereo unbalanced pair, XLR x1 stereo balanced pair, 1/4" headphone connector x1
- Analogue Performance
- Gain: 12dB +/-0.5dB
- Maximum output: 20 Vrms
- Sensitivity: 5.3Vrms
- Input Impedance: 47KΩ single-ended RCA, 100KΩ Balanced XLR
- Output Impedance: 100Ω single-ended RCA, 200Ω balanced XLR
- Frequency Response: 20Hz – 20KHz +0/- 0.25dB, 10Hz – 100KHz +0.1/-3.0dB
- Noise: 20-20KHz <-90dBV
- S/N Ratio: 1KHz <110dB (max output)
- Channel separation: 1KHz <90dB
- nput separation: 1KHz <90dB
- THD & IM: 1KHz < 0.025%, 20-20KHz < 0.05%
- Headphone Performance
- Output power @1% THD: 300Ω 300mW, 16Ω 3.25W
- S/N Ratio 1kHz: >95dB (max output)
- Noise: <-80dBV
- THD & IM 1Vrms out: 300Ω <0.05%, 16Ω <0.06%
- Output impedance: <4 Ω
- Volume Control: 0-100 (1/2 and 1dB steps, 80dB total range)
- Balance Control: 24dB each direction in 1/2dB steps
- Home Theater Mode: Assignable to any analogue input, - Adjustable (in setup) to any level
- Polarity (phase) Control: Digital sources only
- Filter Control: 3 selectable digital filters (PCM digital sources only)
- Trigger output: (3.5mm 5-15VDC) 2
- Remote Control: Yes, InfraRed
- Unit Weight: 13.5 lbs [6.1 kg]
- Unit Dimensions: 17” x 12” x 3”
- Shipping Weight: 17 lbs [7.7 kg]
- Shipping Dimensions: 23”x 18” x 9”
Description
This PS Audio Stellar Gain Cell DAC and Pre Amplifier in Black has been briefly used but is in close to new condition, with a slightly tatty box from being opened and resealed - but will be carefully secured for safe delivery. We only have 1 unit at this price - the offer will disappear once sold.
For more info on this model, see our main PS Audio Stellar Gain Cell DAC and Pre Amplifier page
