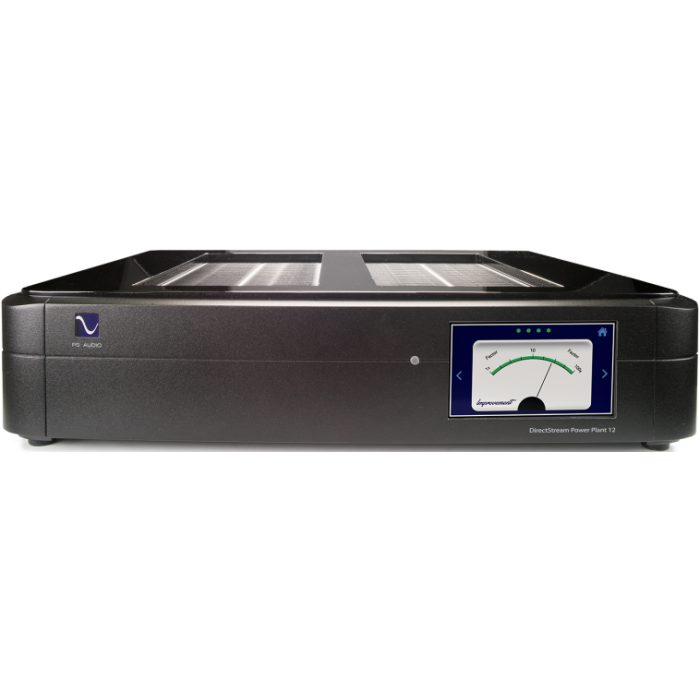

PS Audio P12 Power Plant Regenerator
In stock
Features
| Fitted Cable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Location: Indoor use only
- Duty Cycle: Suitable for continuous operation
- Moisture Sensitivity: Not sealed against moisture
- Operating Humidity: <80%rh
- Storage Temperature: -40C to +40C
- Operating Temperature: 0C to 40C
- Max Operating Altitude: 12,000' (3500m)
- Electrical Supply Nominal Rating: 230V 10A 50/60Hz
- Nominal Input Voltage: 200 - 285 VAC
- Maximum Continous Load: 1200VA
- Maximum Peak Load: 3800VA
- Voltage Regulation: 1V
- Output Distortion (Resistive Load): <0.9%
- Output Distortion (Reactive Load): <0.9% (0.1% Typical)
- Output Impedance: <0.008 Ohm
- Noise Reduction: 100kHz - 2MHz > 80dB
- Efficiency @ 300VA: >85%
- Input Frequency: 45 - 65 Hz
- Under Voltage Limit: Continous -10% of setting 15 sec,duration 10% of setting
- Over Voltage Limit: Continous 5% of setting 15 sec, duration 10% of setting
- Energy Dissipation: 1270J
- Peak Current Surge: 90,000A
- Max Surge Voltage: 6,000V
- Clamp Level: 800V
- DC Trigger Configuration: Tip Positive
- DC Trigger Voltage: 5 - 15Vdc
- Unit Dimensions (W x D x H): 17" x 14" x 4" (43cm x 36cm x 10.16cm)
- Unit Weight: 37lbs (16.7kg)
- Shipping Dimensions (W x D x H): 24" x 21" x 10" (61cm x 53cm x 25cm)
- Shipping Weight: 48lbs (21.7kg)
Description
PS Audio P12 Power Plant Regenerator is an AC generator that has reduced distortion levels, a new sine wave generator, 3 times lower output impedance and enhanced performance.
Power Larger Amps
PS Audio’s P12 Power Plant Regenerator is an ideal choice for many hi-fi systems. Unlike the P3 model, which is suited more for front-end sources and smaller amps, the P12 can power larger amplifiers due to its high current output and overall 1000W capacity.
The P12 should ideally be used in with PS Audio's excellent range of mains cables.
Improved Dynamics
The power in our homes regularly suffer from power problems, which lead to dynamic losses, but the P12 Power Plant gives audio a new lease of life so that you get the very best from your equipment.
Compact Size
This P12 Power Plant is the most compact model from PS Audio; it is able to power small to medium sized components and uses the output to power larger power amps.
How Does it Work?
PS Audio’s P12 turns your original AC power, that may be contaminated with noise and distortion, and delivers a clean regenerated power to your equipment free from distortion, fluctuating levels, and noise. Once it takes the AC power and it converts it into DC, it uses unique technology to produce a new regulated high current AC power where issues within the power line are corrected.
Touch Screen Panel
The front panel features a touch screen display where you can measure the power consumption and performance levels of your equipment. You can also adjust the output voltage settings, power individual zones on/off and measure the quality of the mains supply.
100% Protection
The P12 Power Plant Regenerator will keep your connected equipment safe from power line events such as, voltage overload, surges and spikes. The state-of-the-art clamping device on the input and output of the P12 Power Plant is fully regulated so even large voltage swings that would normally damage connected equipment are made safe.
