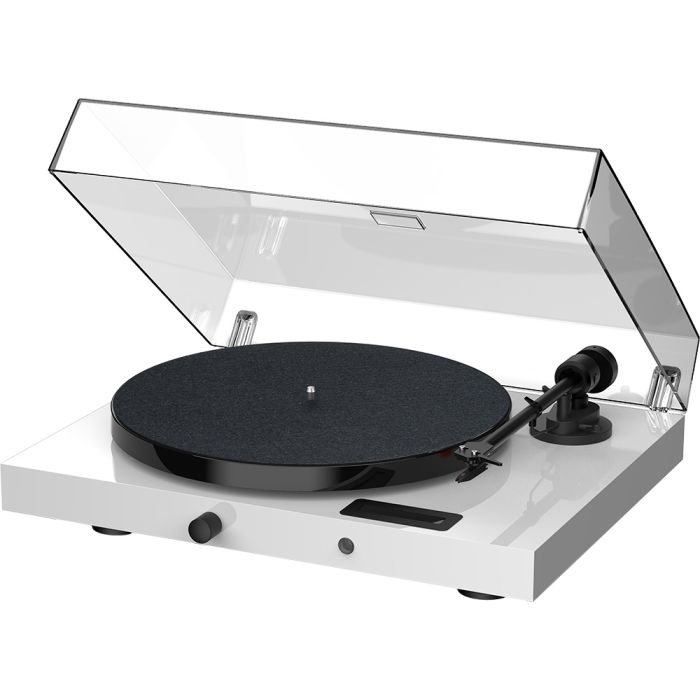

Pro-Ject Juke Box E1 Turntable
In stock
Features
| Includes Cartridge | No |
|---|---|
| Includes Dust Cover | No |
| Brand Color | None |
| Includes USB Input | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
DRIVE PRINCIPLE - Belt Drive
SPEEDS - 33 & 45 RPM
SPEED VARIANCE (33 RPM) - 0.7 %
SPEED VARIANCE (45 RPM) - 0.6 %
WOW AND FLUTTER (33 RPM) - 0.25 %
WOW AND FLUTTER (45 RPM) - 0.23 %
MAIN BEARING - Stainless Steel & Brass
MAIN PLATTER MATERIAL - ABS Polymer
TONEARM TYPE - Pre-Set
TONEARM MATERIAL - Aluminium
EFFECTIVE TONEARM LENGTH - 218.5 mm
OVERHANG - 22 mm
EFFECTIVE TONEARM MASS - 7 g
BLUETOOTH INPUT - 2.1 + EDR (With SBC Codec)
EXTERNAL POWER SUPPLY RATING - 24V-4A DC
MAXIMUM POWER CONSUMPTION - 50 W
DIMENSIONS (W X H X D) - 415 x 118 x 334 mm
WEIGHT - 5 kg
Description
The Pro-Ject Juke Box E1 Turntable is an all-in-one turntable system with a built-in Class D, 50 Watts per channel amplifier. Just add speakers for a full system. It can also play back-streamed music via Bluetooth.
The E1 is an upgrade over the popular Juke Box E with a new tonearm and more convenient speed switching. Moreover, a remote control is provided. Lastly, the unit comes with a felt mat and dust cover. A set featuring Pro-ject’s speaker box 5 speakers and solid core speaker cable is also available.
New arm and speed control
The new arm of the Pro-Ject Juke Box E1 Turntable is pre-fitted with an Ortofon Om 5E MM cartridge. Moreover, the tracking force and anti-skate are already set for the supplied cartridge. As a result, you are ready to go straight out of the box.
Speed switching of this belt drive unit is done electronically via the control system. The all-in-one tonearm has a fixed headshell and you can easily change to another cartridge using the standard fittings. Wow and flutter is low at 0.25%.
Quick and convenient
The Pro-Ject Juke Box E1 Turntable has a built-in phono preamp as well as Bluetooth capability and a Class D, 50 Watts per channel amplifier. Just add speakers. There is also a power supply upgrade available that will improve the dynamic range and bass response. The PSU plugs in via a three-pin power plug. The upgrade should also help in reducing any possible hum and noise.
Remote control
A remote control is supplied and there is a high-contrast display on the top of the turntable. There is also a line input and output to connect to other devices. The speed control is electronic and the new damped DC motor provides good speed stability. The platter is made of a non-resonant material and the unit is well isolated on rubber feet.
About Class D amplifiers
Many compact units nowadays use Class D amplifiers. These are up to 90% efficient and generate less heat than class A/B units. As a result, they are used where space is at a premium. The output consists of a stream of high-frequency pulses.
This is known as Pulse Width Modulation. The closer together the pulses are the higher the output. Fast-switching MOSFET transistors are used for the output devices.
Why an all-in-one unit?
All-in-one units offer convenience and easy setup. The Pro-Ject Juke Box E1 Turntable is ready to go straight out of the box just add speakers. Moreover, Pro-ject is a high-end manufacturer and this unit is no slouch in the audio quality department. Additionally, there are no trailing leads apart from the speakers.
This type of unit is good for small rooms however it has enough power for larger rooms as well. Another bonus is Bluetooth streaming. As a result, you can stream from your Smartphone and enjoy good sound quality from online services such as Spotify.
