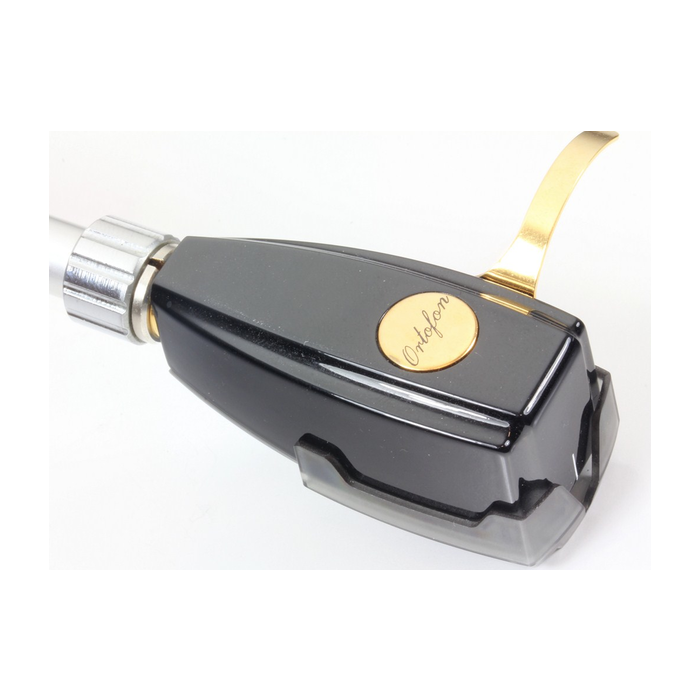

Ortofon SPU Synergy G MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Output voltage @1kHz, 5cm/sec: 500 µV
Channel balance at 1 kHz: < 1.5 dB
Channel separation at 1 kHz: > 23 dB
Channel separation at 15 kHz: > 15 dB
Frequency range at - 3dB: 20-30.000 Hz
FIM distortion: 20-20.000Hz +3/-1dB
Tracking ability at 315Hz: > 70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3-5g (30-50mN)
Tracking force, recommended: 4.0g (40mN)
Tracking angle: 20°
Internal impedance, DC resistance: 6 Ohm
Recommended load impedance: > 10 Ohm
Cartridge body material: Grinded wood
Coilwire material: Goldplated Silver
Cartridge colour: Shiny Black
Cartridge weight: 30 g
Description
The Ortofon Synergy G modernizes the classic SPU design with a number of optimisations designed for optimum compatibility and sonic purity. The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 500µV, relaxing the requirement for high gain transformer or active preamplification systems. While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
