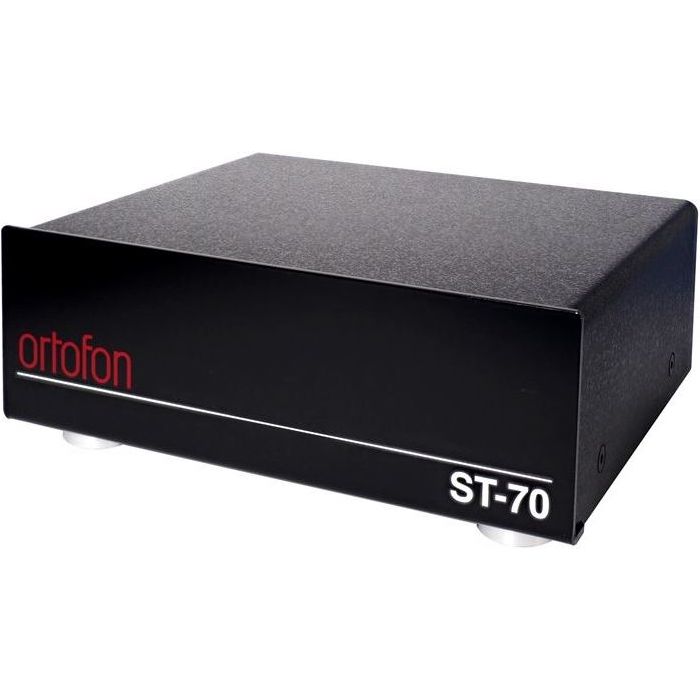

Ortofon ST-70 MC Step Up Transformer
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Configuration A:
- Recommended cartridge impedance: 5-50 Ω
- Gain: 24 dB at 1 kHz
- Frequency response: 10 Hz - 100 kHz ± 1 dB
- Recommended load: 47 KΩ // 200 pF
Configuration B:
- Recommended cartridge impedance: < 10 Ω
- Gain: 30 dB at 1 kHz
- Frequency response: 10 Hz - 80 kHz ± 1 dB
- Recommended load: 47 kΩ / 200 pF
General
- Dimensions (WHD): 58 x 135 x 150mm
- Weight: 1.233 kg
Description
Ortofon ST-70 is a MC Transformer designed to improve the overall performance of your vinyl hi-fi system. The ST-70 combines high-quality components with world-class engineering for unrivaled audio reproduction.
Quiet Transformer Design
Ortofon’s ST-70 transformer uses high-quality Lundahl transformers, which are surrounded by a specialized mu-metal shielding to prevent from internal and external interference. This design allows the ST-70 transformer to be quiet and revealing.
Dual Mono Design
The ST70 has a dual mono design, which ensures a discrete circuitry for each channel, resulting in the elimination of crosstalk and possible distortions. This means audio reproduction is clean and clear with a substantially improved stereo imaging, which delivers accurate tonal balance without coloration.
