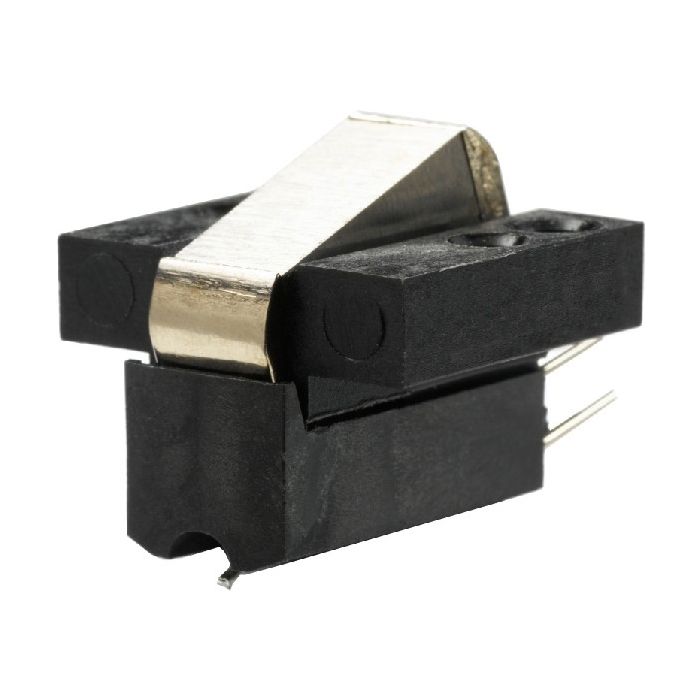

Ortofon SPU Classic N E Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Out Voltage @1kHz, 5cm/sec: 200 µV
Channel Balance @1kHz: < 1 dB
Channel Separation @1kHz: > 20 dB
Channel Separation @15kHz: > 10 dB
Freq Range (@-3dB): 20-25.000Hz
Freq Response (±3dB): 20 - 20.000Hz
Recommended Tracking @315Hz: 65 µm
Compliance, Dynamic, Lateral: 8µm/mN
Stylus Type: Nude Elliptical
Stylus Tip Radius: R 18 µm
Tracking Force: 3-5g (30-50 mN)
Recommended Tracking: 4.0g (40 mN)
Tracking Angle: 20°
Internal Impedance/DC Resistance: 6 Ohm
Recommended Load Impedance: > 10 Ohm
Coilwire: High Purity Copper (OFC)
Cartridge Colour: Black
Cartridge Weight: 13 g
Description
Ortofon's SPU Classic N E provides the same sound reproduction properties as the SPU Classic GM E series, but is sold without the integrated headshell unit. The SPU Classic N E is a Moving Coil cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners can mount the SPU Classic N E on a traditional headshell while those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge.
