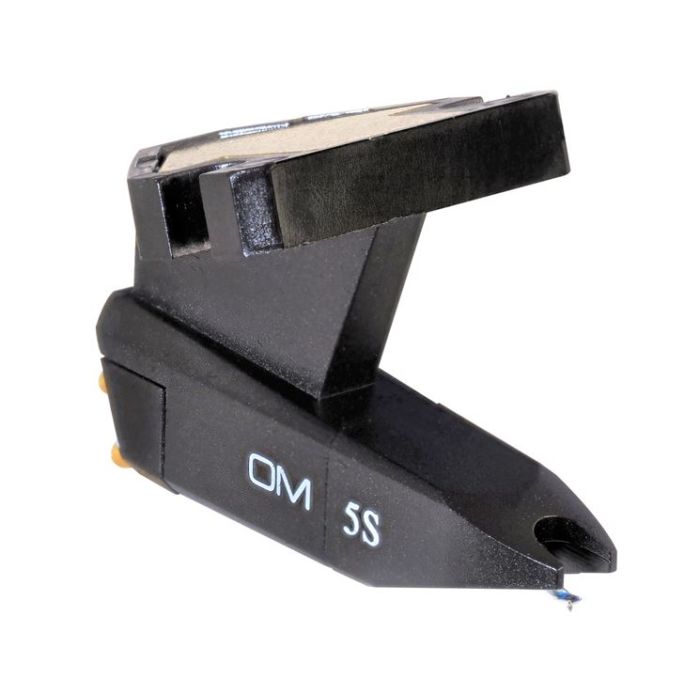

Ortofon OM5S MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Frequency response - 20 Hz - 20 kHz: 20-20.000 Hz
- Stylus tip radius - R 18 µm
- Tracking force range - 1.5-2.0 g (15-20 mN)
- Tracking force, recommended - 1.75 g (17.5 mN)
- Tracking angle - 20°
- Cartridge weight - incl. extra weight 5 g, excl. extra weight 2.5 g
- Recommended load resistance - 47 kOhm
- Internal inductance - 450 mH
- Recommended load capacitance - 200-500 pF
Description
The Ortofon OM Series encompasses three basic cartridges: OM5S, OM 5E and Super OM 5E. With its classic design, the OM moving magnet cartridge has been featured on innumerable hi-fi turntables over many years, and the latest range gives turntable owners easy access to great sound at an affordable price.
The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon, and combined with their minimal design allowing for easy mounting and alignment and clear, loud output for easy pairing with a phono stage, they fully justify their "Optimum Match" (OM) name.
As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a tiny, removable weight above the mounting bracket. For standard tonearms, leave the weight in place as usual. For low-mass tonearms, you have the ability to remove the weight, reducing the cartridge weigh to just 2.5g.
