Ortofon SPU Mono G MkII MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Product Type | Other |
Tech Specs
Output voltage @1kHz, 5cm/sec: 3.0mV
Frequency range @-3dB: 20-20.000Hz
FIM distortion: 20-15.000Hz +3/-1dB
Tracking ability @315Hz: > 70µm
Compliance, dynamic, lateral: 12µm/mN
Stylus type: Spherical
Stylus tip radius: R25µm
Track force range: 3.0-5.0g (30-50mN)
Track force, recommended: 3.5g (45mN)
Tracking angle: 20°
Internal impedance/DC resistance: 100Ω
Recommended load impedance: > 47kΩ
Cartridge Material: Grinded wood
Coilwire: High Purity Copper (OFC)
Cartridge colour: Black
Cartridge weight: 30 g
Description

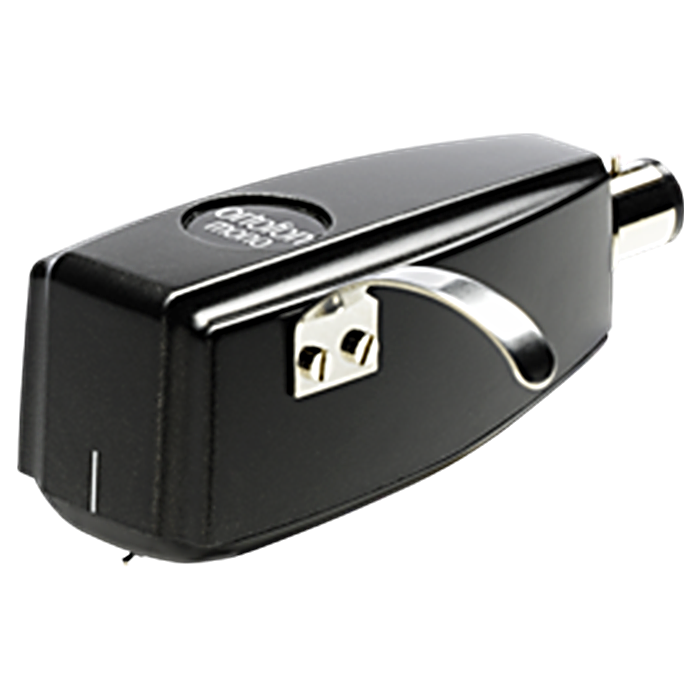

The Ortofon Mono G MKII is similar to the CG 25 DI MkII is an MC cartridge with MM output level, allowing its use with a standard phono input, featuring a spherical stylus profile for the playback of early 25µm mono recordings. The SPU Mono G MKII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
