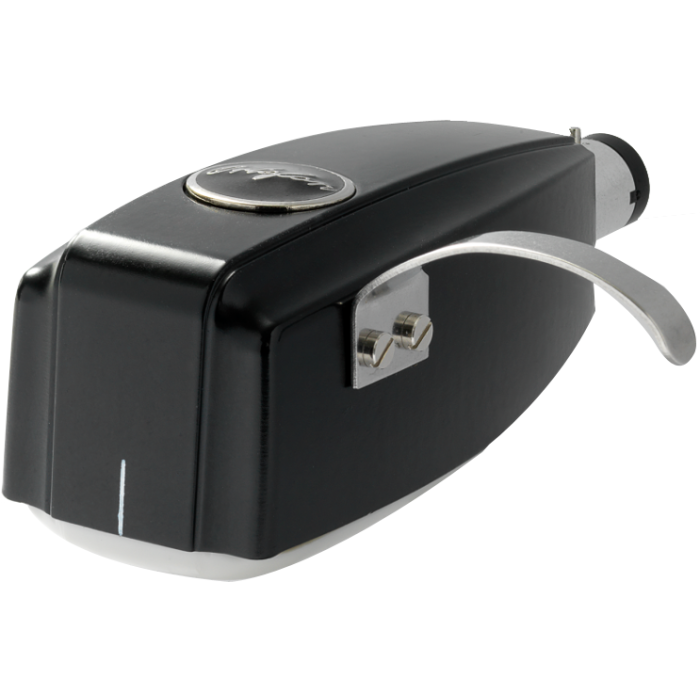

Ortofon SPU Mono CG 25 MkII Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|
Tech Specs
Output voltage @1kHz, 5cm/sec: 1.5mV
Frequency range @-3dB: 20-18.000Hz
FIM distortion: 20-15.000Hz +3/-1dB
Tracking ability @315Hz: > 60µm
Compliance, dynamic, lateral: 7µm/mN
Stylus type: Spherical
Stylus tip radius: R25µm
Track force range: 3.0-4.0g (30-40mN)
Track force, recommended: 3.5g (35mN)
Tracking angle: 20°
Internal impedance/DC resistance: 6Ω
Recommended load impedance: > 100Ω
Cartridge Material: Grinded wood
Coilwire: High Purity Copper (OFC)
Cartridge colour: Black
Cartridge weight: 33 g
Description
The Ortofon Mono CG 25 MkII is an SPU-style Moving Coil (MC) cartridge with a spherical stylus profile, for the playback of early 25µm mono recordings. The CG 25 MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy. This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
