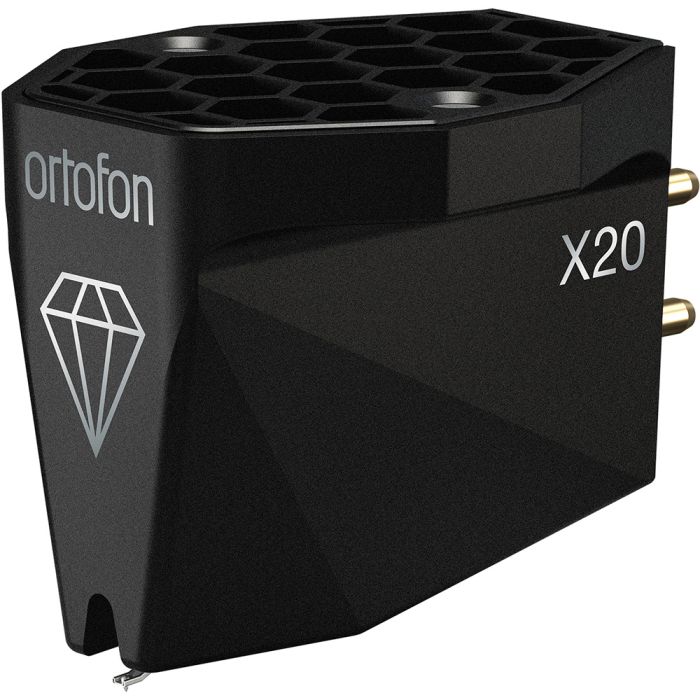

Ortofon MC X20 MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Output Voltage - 0.4 mV
- Channel Balance (@ 1000Hz) - 0.5 dB
- Channel Separation (@ 1000Hz) - 25 dB
- Frequency Response - ± 1 dB
- Compliance, Dynamic, Lateral - 15 μm
- Stylus Type - Nude Elliptical
- Stylus Tip Radius (r/R) - 8 / 18 μm
- Recommended Tracking Force - 2.0 g
- Internal Impedance - 6 Ω
- Cantilever Material - Aluminium Tube
- Coil Wire Material - High-Purity Silver
- Recommended Load Impedance - > 50 Ω
- Cartridge Weight - 8.6 g
Description
The Ortofon MC X20 MC Phono Cartridge represents a significant step forward in high-fidelity analog playback. As part of the innovative MC X Series, it serves as a vital link between the vinyl groove and the rich, immersive sound that follows.
With the MC X20, Ortofon brings decades of engineering expertise and premium craftsmanship together in a design that unlocks deeper musical expression. Its refined profile and precision stylus offer exceptional groove tracking and clarity, making it ideal for vinyl enthusiasts ready to take their sound system to the next level.
Whether rediscovering old favorites or exploring new recordings, the MC X20 reveals hidden layers of detail and musicality with every spin.
Pure Silver Coils for Sonic Purity
At the core of the Ortofon MC X20’s performance is a high-purity silver coil system, a hallmark of the MC X Series. Silver’s superior conductivity ensures maximum signal transfer with minimal loss, resulting in sound that’s open, vibrant, and true to the original recording. This level of material quality is rare in cartridges at this price point and reflects Ortofon’s commitment to sonic excellence.
Each note, dynamic shift, and subtle nuance is preserved with pristine clarity, allowing your music to shine without coloration or interference. Combined with Ortofon’s advanced mechanical design, the silver coils help the MC X20 achieve an ideal balance of precision, warmth, and depth.
Engineered Structure with MIM Core Stability
The MC X20’s performance is built upon an advanced honeycomb-structured stainless-steel frame, manufactured through Metal Injection Moulding (MIM) technology. This process produces a dense, ultra-rigid structure that minimizes unwanted resonance and vibration.
Once moulded and sintered, the frame receives a Physical Vapour Deposition (PVD) treatment for enhanced durability and a refined finish. This design not only contributes to the cartridge’s striking aesthetics but plays a vital role in achieving consistent, distortion-free sound reproduction.
With a stable and inert base, the MC X20 delivers exceptional tracking accuracy, helping the stylus follow each groove contour with precision and poise.
Magnetic Precision Meets Mechanical Control
The Ortofon MC X20 MC Phono Cartridge incorporates a newly optimized magnet system that pairs seamlessly with the silver coils to deliver powerful yet controlled signal output. A one-piece pole cylinder, integrated into the rear yoke, ensures efficient magnetic flow with minimal energy loss.
Supporting this magnetic performance are custom-developed rubber dampers, created by Ortofon’s in-house materials team. These dampers manage coil motion and absorb vibrations that could otherwise color the sound. The result is a cleaner, more stable playback with reduced distortion and improved channel separation, giving your records a deeper sense of space and musical accuracy.
Stylus and Sound: The Heart of the MC X20
A key feature of the Ortofon MC X20 is its Nude Elliptical diamond stylus, mounted on a lightweight aluminum cantilever. This design enhances the cartridge’s ability to track even the most delicate groove modulations, resulting in extended frequency response and increased resolution.
The MC X20 offers a smooth yet dynamic sonic character, bringing out the rhythm, pacing, and emotion in your music. Its sound is both spacious and focused, striking a harmonious balance that suits a wide variety of genres. Whether you enjoy intricate classical arrangements or high-energy rock, the MC X20 reveals your records with lifelike timing and tone.
Refined Design, Distinct Character in the MC X Series
The Ortofon MC X20 MC Phono Cartridge blends technical innovation with elegant design, embodying the philosophy behind the entire MC X Series. Designed for overhead mounting into standard headshells, it combines ease of installation with a sophisticated profile that complements modern tonearms.
The MC X20 offers an exceptional entry point into advanced moving coil technology, while retaining many features found in higher-end models. As part of the MC X family, it shares Ortofon’s commitment to precision engineering, premium materials, and musical refinement. For listeners ready to elevate their analog system, the MC X20 is a powerful and expressive choice.
