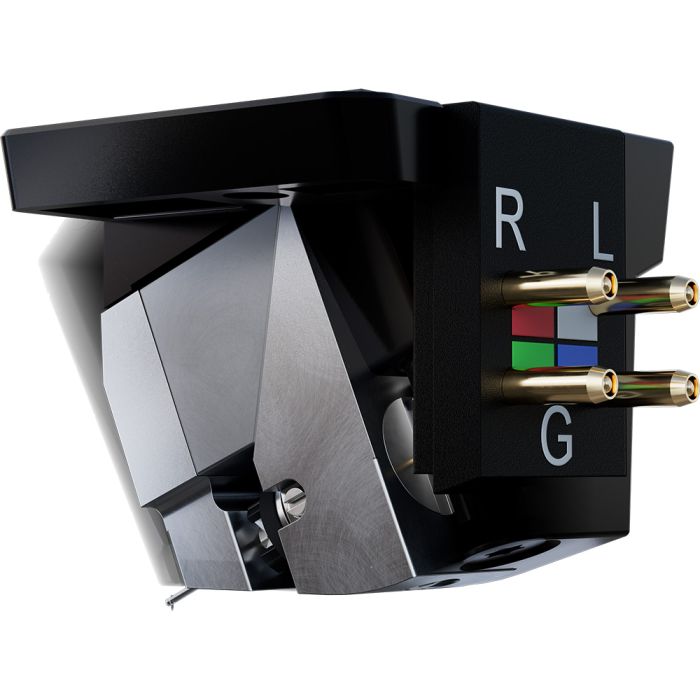

Ortofon MC Vertex Phono Cartridge

The Ortofon MC Vertex Phono Cartridge represents the culmination of decades of research, innovation, and craftsmanship in moving coil cartridge design. Created as the most advanced moving coil cartridge Ortofon has ever developed, the MC Vertex is engineered to set a new benchmark for analogue performance.

Its name reflects the very essence of its purpose—the point where every element aligns perfectly to achieve extraordinary musical reproduction. Developed through an uncompromising process involving acoustics, materials science, mechanical engineering, and advanced manufacturing techniques, the MC Vertex embodies Ortofon’s relentless pursuit of perfection.

Every component has been carefully evaluated, refined, and optimised through extensive listening tests and precision measurements. The result is a cartridge capable of delivering exceptional transparency, accuracy, and emotional engagement, allowing listeners to experience their vinyl collection with a level of realism that approaches the original performance.

Vertex Diamond Technology – A New Reference Standard

At the heart of the Ortofon MC Vertex Phono Cartridge lies a groundbreaking stylus design developed entirely in-house by Ortofon. Known as the Vertex Diamond, this advanced profile establishes a new reference point in stylus technology.

Featuring a finely optimised scanning radius of just 4µm combined with an exceptionally large 110µm contact radius, the Vertex Diamond achieves an extraordinary balance between tracking precision and groove contact. This advanced geometry enables the stylus to retrieve even the most delicate musical information while distributing tracking forces more evenly across the groove walls.

Mounted on a solid diamond cantilever, the stylus assembly forms an incredibly rigid and lightweight structure that maximises energy transfer from the record groove to the generator system. The result is exceptionally low-level detail retrieval, remarkable transparency, and highly accurate spatial presentation, revealing subtle textures and nuances that are often hidden within recordings.

Precision Manufacturing and Diamond Cantilever Construction

The extraordinary performance of the MC Vertex is made possible through an equally advanced manufacturing process. Ortofon employs highly precise laser-cutting techniques to create an exceptionally accurate interface between the Vertex Diamond and its solid diamond cantilever.

A microscopic bore is formed within the cantilever itself, allowing the stylus to be mounted with remarkable accuracy and repeatability.

This highly controlled assembly process ensures optimum alignment while creating an extremely stable mechanical connection that maximises energy transmission and minimises unwanted resonances. The cantilever is further enhanced through laser polishing, creating a perfectly uniform surface finish that reduces potential mechanical artefacts.

This combination of advanced geometry, diamond-on-diamond construction, and precision manufacturing allows the MC Vertex to deliver exceptional tracking ability, extremely low distortion, and outstanding dynamic expression, preserving both the smallest details and the largest musical crescendos with effortless precision.

Titanium Architecture and Resonance Control

The body of the Ortofon MC Vertex Phono Cartridge is every bit as sophisticated as its stylus assembly. Constructed using Selective Laser Melting (SLM) technology, the cartridge housing and internal core structure are manufactured from titanium to achieve exceptional rigidity and mechanical stability.

This advanced production method allows Ortofon to control wall thickness, material density, and internal geometry with a level of precision that traditional manufacturing methods simply cannot match. A specially designed internal cavity structure further enhances damping characteristics, helping to suppress unwanted resonances and vibrations before they can influence the musical signal.

The titanium body is finished with a durable Diamond-Like Carbon (DLC) coating that provides both visual refinement and enhanced durability. Together, these technologies create an acoustically inert platform that allows the cartridge to reproduce music with greater purity, focus, and tonal accuracy.

Advanced Generator System and Wide Range Damping

The MC Vertex features one of the most advanced generator systems ever created by Ortofon. At its core is a non-magnetic armature that provides a stable mechanical platform without introducing magnetic interference into the moving system. This design enables the precision-wound high-purity silver coils to operate with exceptional consistency and accuracy within the optimised magnetic field.

Complementing this arrangement is Ortofon’s patented Wide Range Damping technology, which employs a platinum disc positioned between two specially developed rubber compounds with different mechanical characteristics. This sophisticated damping system controls resonance behaviour across the entire audible frequency spectrum while maintaining excellent dynamic responsiveness.

The result is superior tracking performance, remarkable channel separation of 30dB at 1kHz, and exceptionally natural tonal balance. Every element works together to preserve musical detail, dynamic contrast, and timing with extraordinary precision and coherence.

A Unified Design for Reference-Level Vinyl Playback

The Ortofon MC Vertex Phono Cartridge is more than a collection of advanced technologies; it is a fully integrated system in which every component has been developed to work in perfect harmony. From the Vertex Diamond and solid diamond cantilever to the titanium chassis, silver coil system, and patented damping technologies, every aspect of the cartridge has been optimised as part of a unified design philosophy.

With an output of 0.3mV, a recommended tracking force of 2.5 grams, and a cartridge weight of 15 grams, the MC Vertex is engineered for compatibility with the finest tonearms and phono stages available today.

Its ability to reveal intricate detail, maintain exceptional channel balance, and preserve the emotional impact of music places it firmly among the world’s elite analogue transducers. For discerning vinyl enthusiasts seeking the pinnacle of moving coil cartridge performance, the MC Vertex truly represents the point where everything aligns.
