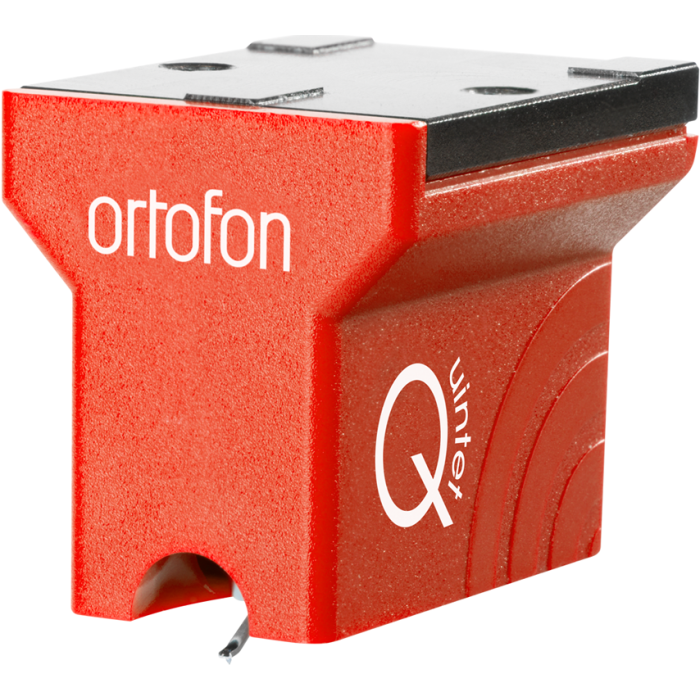

Ortofon Quintet Red MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Product Type | Other |
Tech Specs
- Output voltage at 1 kHz 5 cm/sec: 0.5 mV
- Channel balance: < 1.5 dB
- Channel separation at 1 kHz: > 21 dB
- Channel separation at 15 kHz: > 14 dB
- Frequency range at -3 dB: 20 - 25.000Hz
- Frequency response 20-20.000 Hz: +/-2.5 dB
- Tracking ability @315Hz: 65 μm
- Compliance, dynamic, lateral: 15 μm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 μm
- Tracking force range: 2.1-2.5 g (21-25mN)
- Tracking force recommended: 2.3 g (23mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 7 Ohm
- Recommended load impedance: >20 Ohm
- Cartridge body material: ABS/Aluminium
- Coil wire material: Copper
- Cartridge colour: Red
- Cartridge weight: 9 g
Description
The Ortofon MC Quintet Red is a new entry level Moving Coil cartridge, offering a taste of high-end Moving Coil performance but at a more affordable price point than has previously been available. This cartridge has very high price-to-performance ratio, performs as an all-rounder and is an ideal entry into the world of Moving Coil cartridges.
The MC Quintet Red features an elliptical stylus, which offers sonic advantages over spherical designs, as it is more similar to the shape of stylus used to cut the master discs, and therefore can track the record’s grooves more accurately and reveal more musicality and detail from your music collection.
