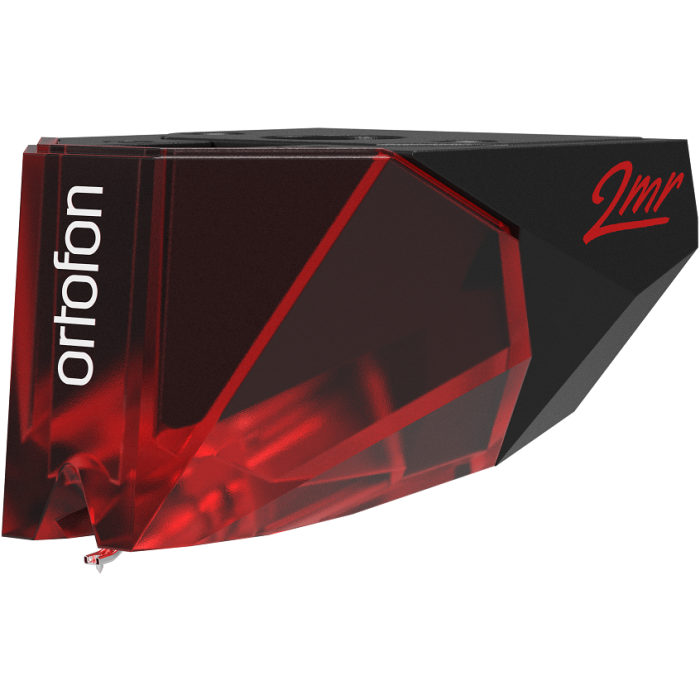

Ortofon 2MR Red MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Output volt @1kHz, 5cm/sec: 5.5mV
- Channel balance at 1 kHz: 1,5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range @- 3dB: 20-22k Hz
- Freq response: 20-20k Hz +2/ -1dB
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1,6-2,0g (16-20mN)
- Tracking force rcmnd: 1,8 g (18 mN)
- Tracking angle: 20°
- Impedance, DC resistance: 1,3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Rcmnd load capacitance: 150-300 pF
Description
Ortofon 2MR Red moving magnet MM phono cartridge is essentially a less tall version of the excellent 2M Red, designed for turntables from brands like Rega where a low-form factor cartridge is needed and/or where VTA is not adjustable and the standard 2M model is too high.
This shorter height is also useful if you wish to upgrade your turntable with a thicker turntable mat or platter upgrade and need to account for this with a shorter height cartridge, again rather than adjusting VTA on the tonearm.
Key Features
- All-purpose cartridge that delivers an open, dynamic sound
- Tipped Elliptical diamond stylus profile
- Overhead mounting cartridge for installing into a headshell
- Moving magnet cartridge with removable stylus
- Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
- Can be upgraded with other styli from the Ortofon 2M range
- Anti-resonant Hopelex body
- Reduced-height 2MR cartridge body
