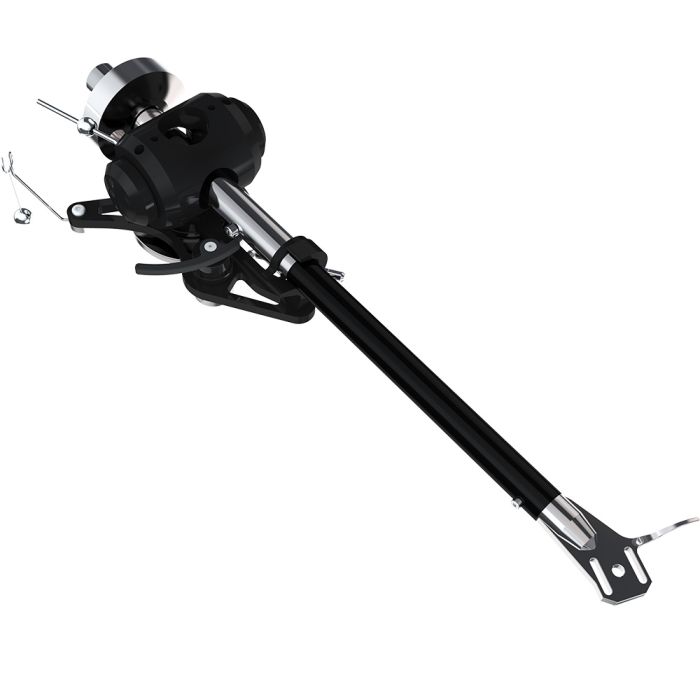

Origin Live Illustrious Mk5 Tonearm

The Origin Live Illustrious Mk5 Tonearm represents a major leap forward in performance, offering sonic qualities that distinguish it clearly from models lower in the range as well as commercial competitors. Its design places strong emphasis on bass authority, delivering sound that is deeper, more powerful and more controlled.

However, the improvements extend far beyond the lower frequencies. Across the full spectrum, listeners will notice enhanced definition, increased transparency and greater dynamic expression. The meticulous engineering behind the Illustrious Mk5 brings refinement to every aspect of playback, creating a tonearm that performs with confidence and clarity.

This level of execution has earned the Illustrious widespread acclaim, making it a benchmark product among serious enthusiasts and reviewers alike.

Acclaimed Musicality and Superior Transparency

The Illustrious Mk5 is especially celebrated for its combination of musical warmth, expressive detail and authoritative low-frequency performance.

Its ability to reveal subtle textures without sacrificing power or scale allows it to partner effortlessly with high-end cartridges. The tonearm offers exceptional transparency, providing insight into recordings with impressive neutrality and openness.

Its musicality remains one of its strongest attributes, presenting rhythm and harmonic structure with natural flow and precision. Reviewers consistently praise its capacity to deliver deep, engaging bass alongside smooth and articulate midrange performance.

With this level of refinement and resolution, the Illustrious Mk5 stands as one of the most accomplished tonearms available, surpassing many rival designs in both technical and musical terms.

Advanced Arm Tube Engineering and Structural Refinements

At the core of the Illustrious Mk5 lies a highly reinforced arm tube crafted from premium aircraft alloy. A long rear stub sleeve is integrated into the structure, enhancing rigidity while improving energy dissipation.

This careful approach minimises reflections and resonance, allowing the cartridge to perform with stability and precision. The sleeved rear stub itself has been engineered to a larger diameter with higher strength materials, providing improved counterweight support and vibration control.

The counterweight design is equally sophisticated, rigidly securing the arm tube for stability while remaining decoupled to prevent unwanted energy from travelling back through the tube. These structural advancements together offer significant improvements in accuracy, clarity and tonal purity.

Precision Adjustment Systems for Optimal Setup

The Illustrious Mk5 includes a counterweight fine adjuster that enables accurate and repeatable tracking force settings, making setup both precise and convenient. The headshell has been refined with improved decoupling and a lightweight finger lift that enhances handling without compromising rigidity.

Vertical tracking angle adjustments are made simple through a large calibrated dial, allowing infinite and highly accurate control from above the arm board. This level of accessibility provides a significant advantage during cartridge alignment and system tuning.

Further flexibility is provided by an azimuth adjuster, which allows users to achieve perfect stylus orientation for accurate channel balance and improved imaging. These adjustment systems ensure users can unlock the full capability of their chosen cartridge.

Cutting Edge Bearing Technology and Internal Wiring

The Illustrious Mk5 employs dual pivot bearings for exceptionally low friction movement. Tungsten carbide points resting in hardened and polished steel cups form a bearing system that is both robust and extremely precise. This delivers outstanding fluidity, fine detail retrieval and long-term durability.

The falling weight side bias system provides the most consistent and low-resonance method of managing tracking force, outperforming alternatives such as springs or magnetic designs. Internal wiring consists of cryogenically treated high-grade copper Litz wire, selected for its purity, transparency and resistance to artefacts.

With its advanced engineering and premium materials, the Origin Live Illustrious Mk5 Tonearm stands as a highly accomplished and musically compelling component for any high-end vinyl system.
