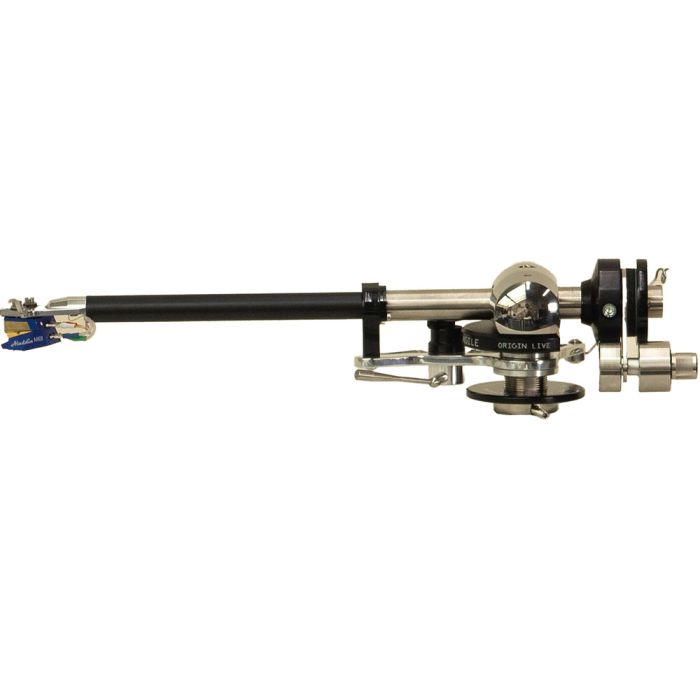

Origin Live Agile Mk5 Tonearm
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Effective Length: 239mm (9 inch Version), 254mm (10 inch Version), 309mm (12 Inch Version)
- Effective Mass: Varies according to model
- Arm mount adaptors are available to fit many decks
- Tracking Force set by Counterweight position – no springs.
- Side Bias set by falling weight on thread for ultra-low friction.
- VTA adjuster enables infinitely variable height adjustment in easily repeatable increments.
Description
The Origin Live Agile Mk5 Tonearm represents a remarkable advancement in tonearm design, aiming to surpass even the acclaimed Enterprise model. Developed through extensive experimentation and meticulous refinement, it achieves the lowest possible resonance across every component.
The Agile Mk5 elevates musical reproduction with a noticeable increase in definition and clarity, giving instruments greater texture and midrange transparency. Vocals sound more tangible, and bass exhibits less overhang, providing a tight, controlled, and natural sound. Every aspect of the design has been optimised to capture the original recording with remarkable fidelity.
Audiophiles will appreciate how this high-end tonearm translates even subtle details into a coherent and immersive listening experience, making it a market-leading choice for vinyl enthusiasts seeking the ultimate in tonal purity and realism.
Advanced Arm Tube and Counterweight Engineering
Central to the Agile Mk5’s performance is a high-grade aircraft alloy arm tube reinforced with carbon fibre and precision machining to control resonance. A long rear stub sleeve provides additional reinforcement, ensuring maximum energy dissipation and minimal vibration reflection.
The sleeved rear stub and rigidly attached counterweight maintain cartridge stability while reducing energy reflection back through the tube. The counterweight uses higher-grade material and a dampening coating to reduce resonance further. This combination results in greater dynamics, precise bass control, and enhanced overall stability.
Fine adjustments allow for accurate tracking force calibration, ensuring that the cartridge performs optimally. Together, these refinements make the Agile Mk5 exceptionally responsive, allowing every musical nuance to emerge with clarity and authority.
Sophisticated Yoke and Decoupling
The Agile Mk5 features a larger yoke with advanced mass distribution to enhance dynamics and bass performance without causing energy reflection. Cutouts in the yoke minimise resonance, and multiple decoupling interfaces provide additional isolation from vertical bearings.
Mirror-finished and coated in Chrome Nitride, the yoke combines stunning visual appeal with exceptional durability. This sophisticated design stabilises the arm tube while preserving transparency and fluidity.
Every note is reproduced with clarity, and complex passages maintain coherence and balance. The Agile Mk5’s yoke ensures that vibration and microshock are effectively managed, delivering a listening experience that is both natural and detailed, providing a solid foundation for high-end cartridges to perform at their absolute best.
Precision Bearings and Adjustments
Vertical movement is managed by dual pivot bearings featuring ultra-hard tungsten carbide points in hardened and burnished steel cups. This produces extremely low friction, outstanding durability, and exceptional transparency. Horizontal movement employs ultra-low friction ceramic ball bearings for precise tracking.
VTA is infinitely adjustable with a large calibrated dial above the arm-board, and falling weight side bias ensures optimal lateral tracking with low friction and minimal resonance.
The headshell is designed for improved decoupling and lightweight operation, further enhancing cartridge stability. Together, these elements enable highly accurate playback, ensuring tonal balance, timing, and dynamics are perfectly maintained across a wide range of musical material.
Premium Wiring and Connectivity
The Agile Mk5 Tonearm uses ultra-low-loss Silver Hybrid-S internal wiring, providing exceptional transparency and detail. Silver-plated headshell clips optimise low-level signal transfer, and the external 1-meter Silver Hybrid-S cable with high-grade single-point rhodium-plated RCA plugs ensures minimal signal loss and superior connectivity.
Single-point contacts reduce eddy currents, while rhodium’s smooth surface enhances electrical interface performance.
This premium cabling design allows the Agile Mk5 to deliver a level of performance typically reserved for products at much higher price points. Combined with its advanced construction, the tonearm reproduces music with remarkable realism, depth, and presence, making it a standout choice for audiophiles seeking unparalleled performance from their vinyl setup.
