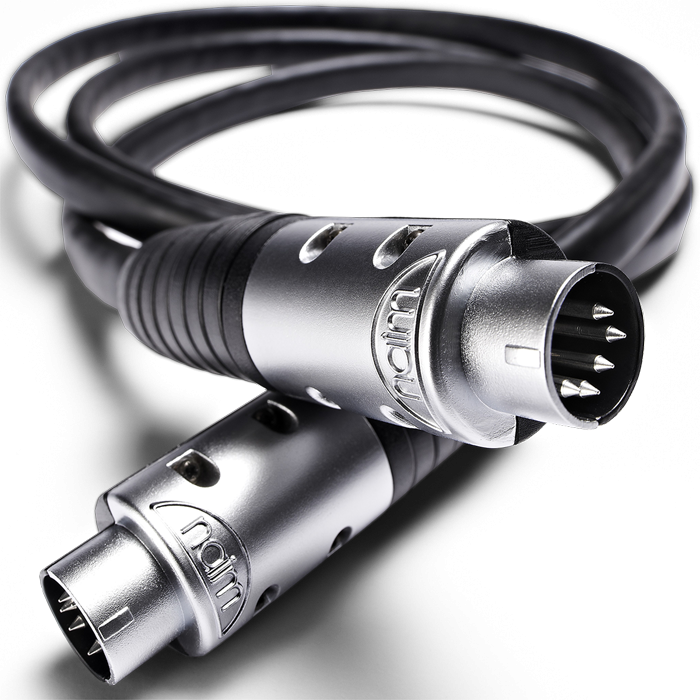

Naim Hi-Line Interconnect Cable - 1.2 Metre
In stock
Features
| Warranty The length of time your product is protected by warranty | 5 Years |
|---|
Tech Specs
Connectors: DIN/RCA
Conductors: 2 pairs PTFE insulated
Wire: 80/40awg Litz wire
Screened: Individual spiral screened
Cable Diameter: 9.25 x 5.30mm
Standard Length: 1.2m
Other: Naim designed custom cable
Colour: Black
VARIANTS
- 5-pin DIN to 5-pin DIN (std)
- 5-pin DIN to RCA
- RCA to 5-pin DIN
- RCA to RCA
- 4-pin DIN to RCA
Description
Naim Hi-Line Interconnect cable was developed to exceed the performance of Naim's standard cable. The brief was to investigate all parameters of a signal carrier; to improve the whole rather than just improving the cable as is the more normal development practice.
Performance
Given the opportunity to start with a 'clean sheet' the R&D team decided to develop a much improved plug as well as a new cable. The Hi-Line Air-PLUG (patented) is designed as a decoupling device to prevent vibrations from one product being transmitted, through the cable, to another product and to stop airborne vibrations picked up by the cable being transmitted to the products to which it is connected. The many different rear sections of the Air-PLUG are clipped together to form a lossy flexible section. The cable is clamped compliantly to the end of this flexible section. Other detail elements of the Air-PLUG include: a significantly reduced metal content to lower electromagnetic effects; a design to reduce eddy current effects and a cable clamping mechanism that does not squash the cable and affect its impedance.
Cable Section
The cable section of the Hi-Line also benefited from a complete re-think. It had to be low capacitance, low resistance and flexible. It had to work superbly in DIN to DIN connections but it also had to perform when used in other configurations. The cable, exclusive to Naim, is manufactured from twisted pairs of 80 Litz conductors surrounded by PTFE, Kapton and PTFE tape all then enclosed within a semi conductive shield to reduce static charges. This is then wrapped by two spiral wound copper shields and lapped PTFE tape. Two of these assemblies side by side are then wrapped in layers of PTFE tape and finally a rubber outer covering. This gives a two-channel cable where the signal and RF grounds are held in a static position relative to each other negating any difference in field between them.
Variations
The Hi-Line is available in the following variants:
- 5 pin DIN to 5 pin DIN
- 4 pin DIN to 5 pin DIN
- 4 pin DIN to 2 RCA
- 5 pin DIN to 2 RCA
- 2 RCA to 2 RCA
We are here to help find the right system for you. As a suggested starting point, the Naim Hi-Line is compatible with the following:
- CD5i
- CD5 XS
- CDX2
- NDX
- ND5 XS
- CD555
- SuperUniti
- UnitiQute
- UnitiServe-SSD
- HDX-SSD
- HDX
- NS01
- NS02
- NS03
- NAT05 XS
- DAC
